Product Specifications
| Manufacturer Part Number | 10092381 |

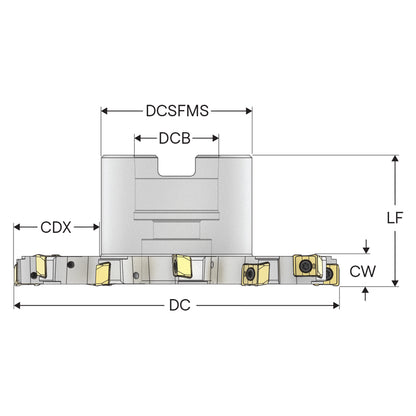

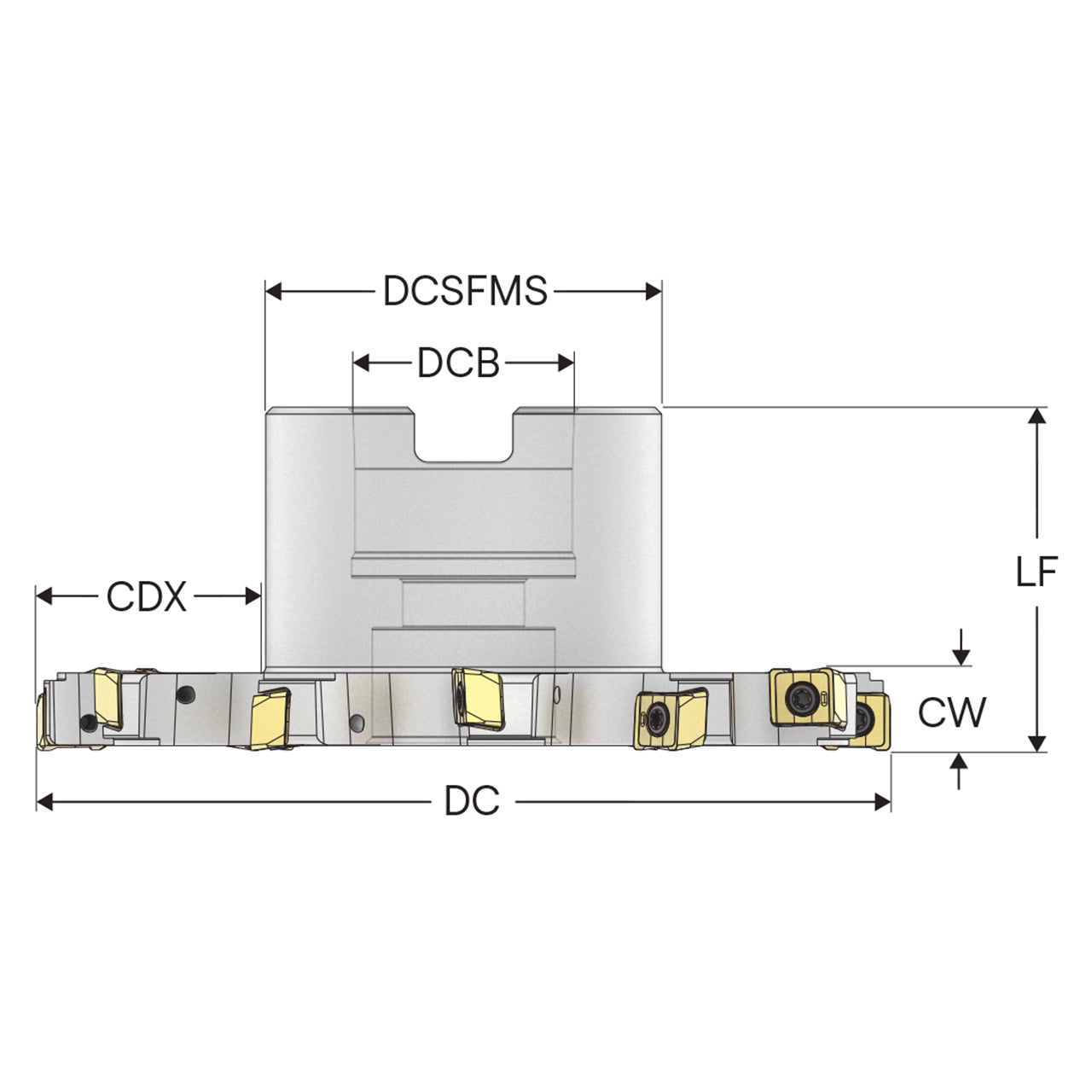

| Depth of Cut Maximum in Feed Direction Side (mm) | 8.00mm |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | No |
| Cutting Diameter (mm) | 100.00mm |
| Connection Diameter Machine Side (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 48.00mm |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (mm) | 50.00mm |
| Rotational Speed Maximum | 10500 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 5 |
| Product Series | R335.18 |

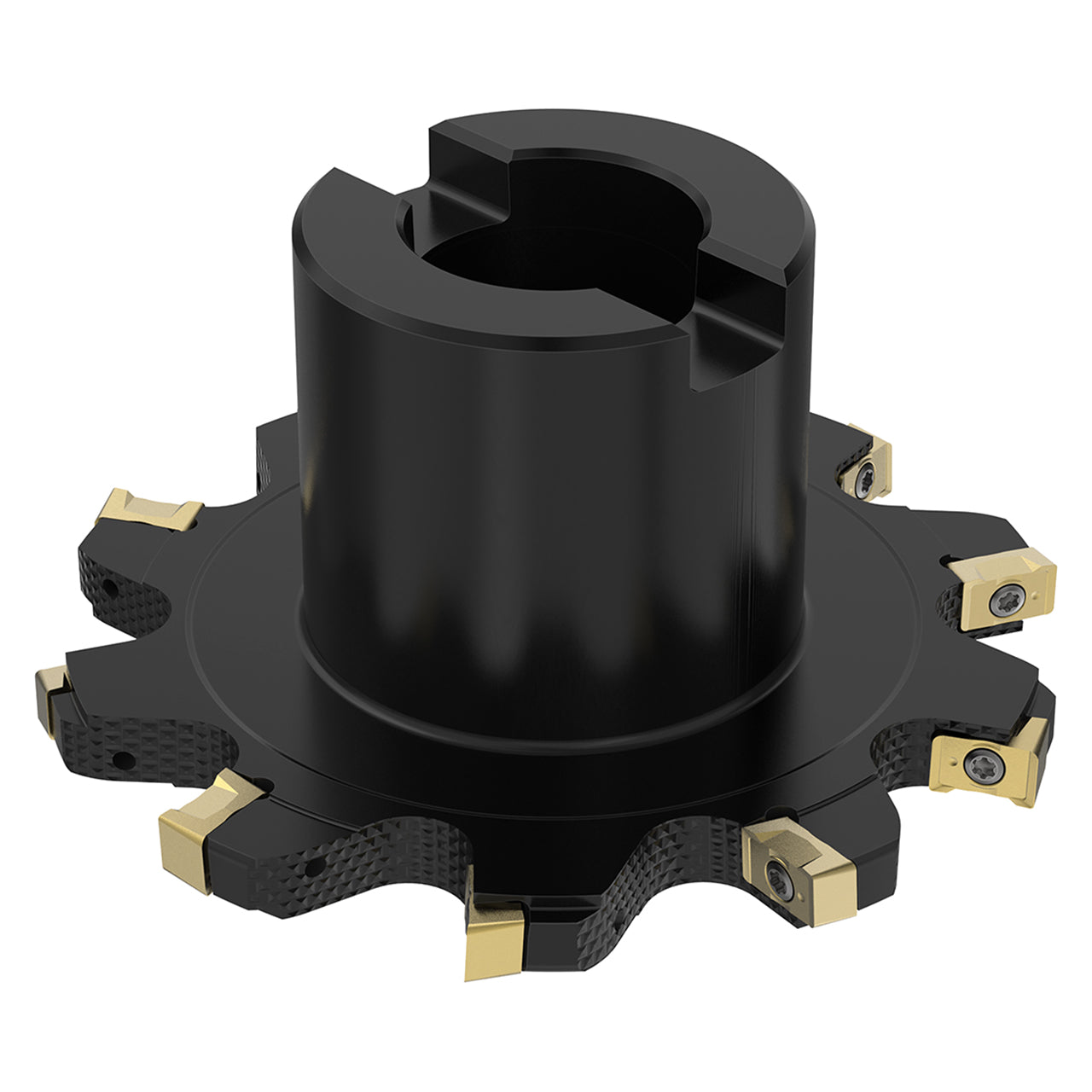

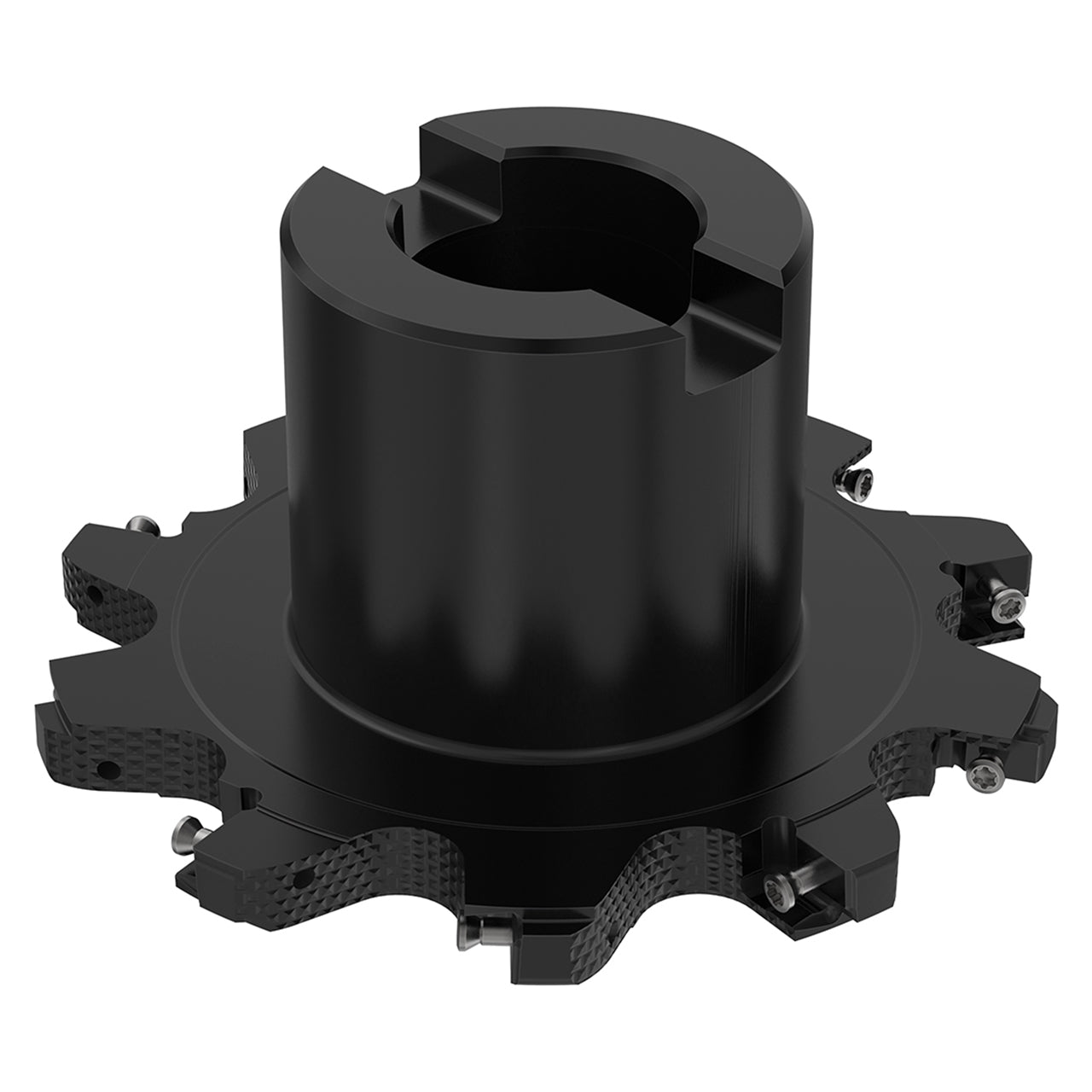

| Product Type | Indexable Slotting Cutter |
