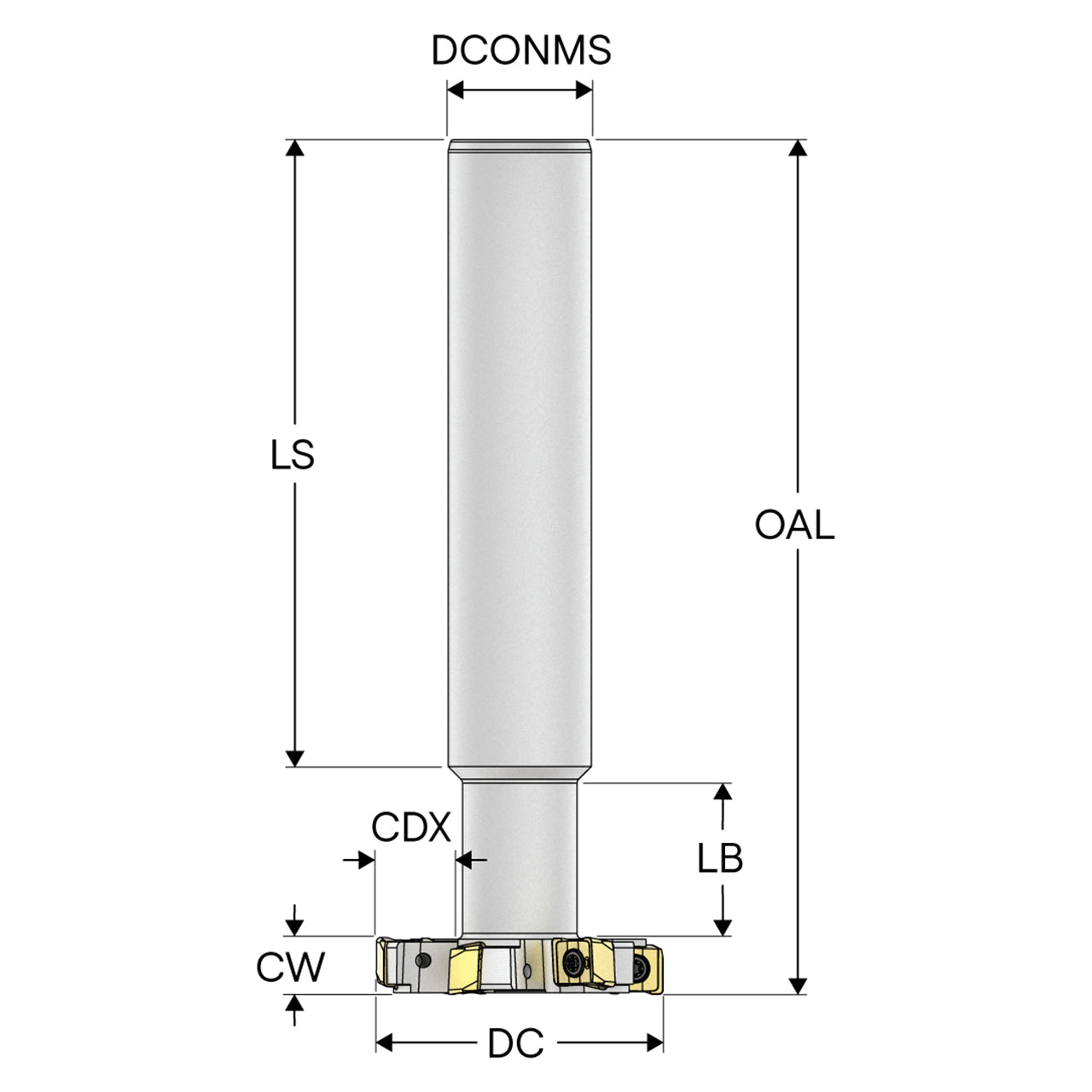

Product Specifications
| Manufacturer Part Number | 10092378 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.500" |
| Body Diameter (Decimal Inch) | 1.211" |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | No |
| Cutting Diameter (Decimal Inch) | 3.000" |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Protruding Length (Decimal Inch) | 4.388" |
| Shank Length (Decimal Inch) | 6.063" |
| Overall Length (Decimal Inch) | 6.750" |
| Rotational Speed Maximum | 10000 rpm |
| Shank Type | Cylindrical |
| Peripheral Effective Cutting Edge Count | 4 |
| Product Series | R335.18 |

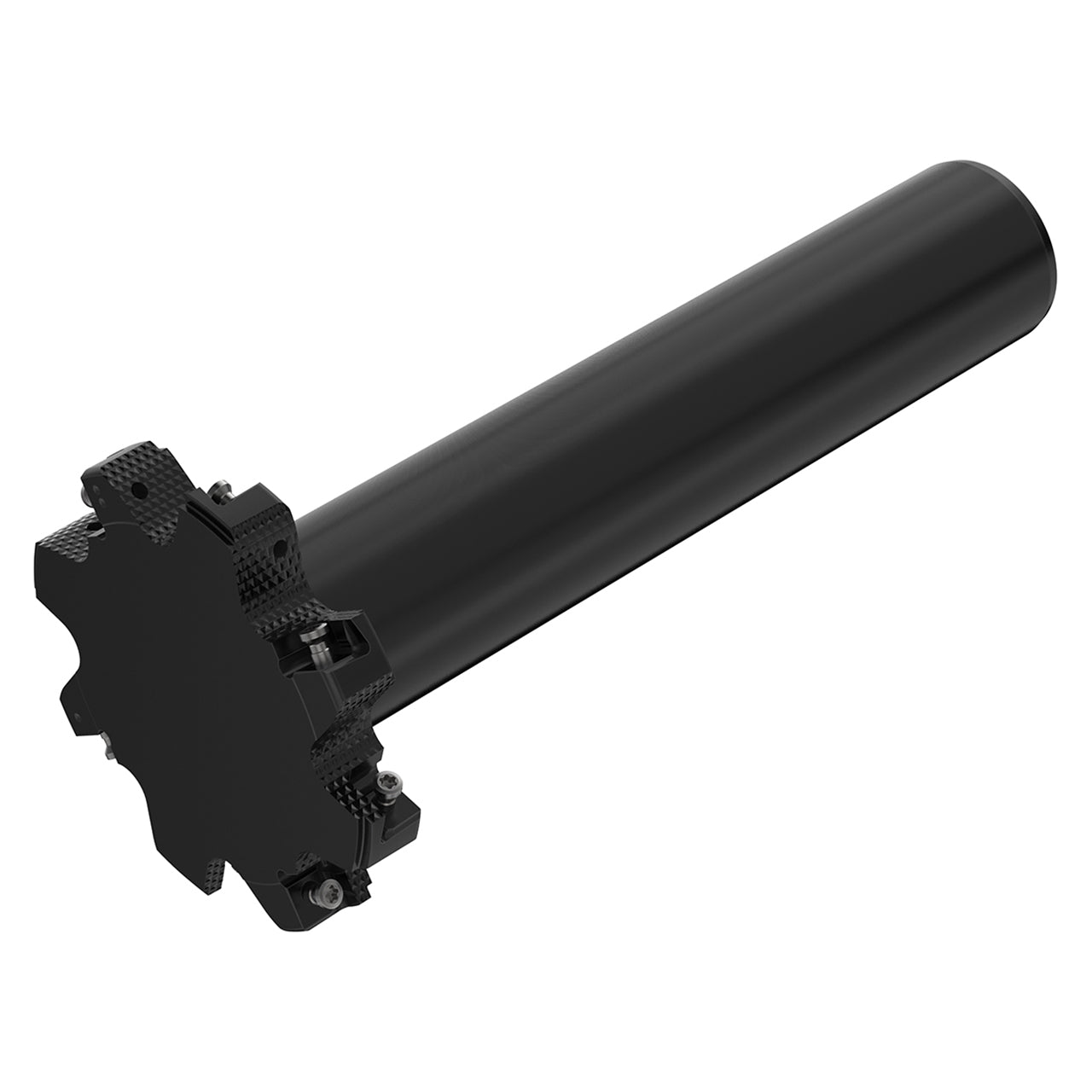

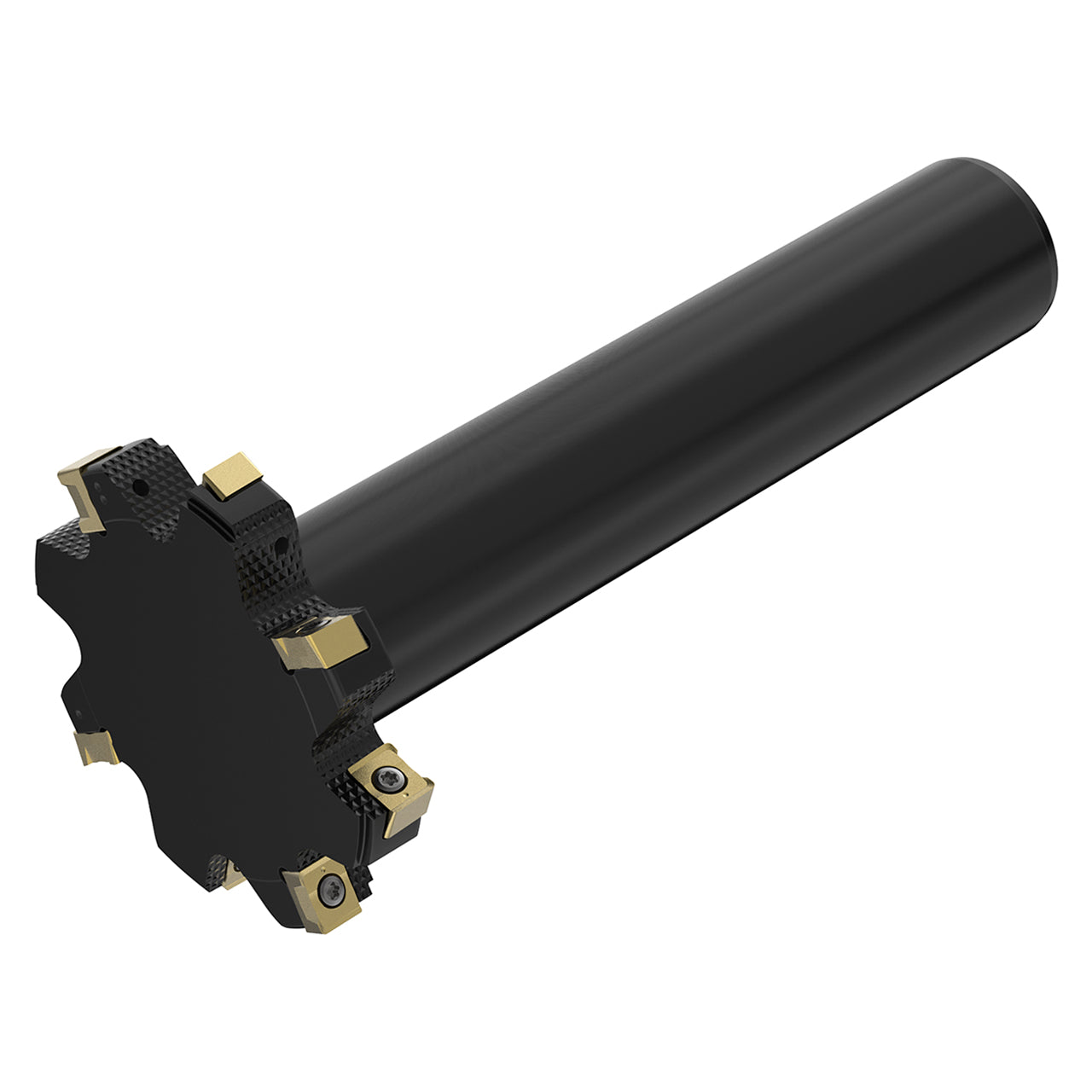

| Product Type | Indexable Slotting Cutter |
