Product Specifications
| Manufacturer Part Number | 10092366 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 12.00mm |
| Body Diameter (mm) | 31.00mm |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | No |
| Cutting Diameter (mm) | 63.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Protruding Length (mm) | 110.00mm |
| Shank Length (mm) | 153.00mm |
| Overall Length (mm) | 170.00mm |
| Rotational Speed Maximum | 11000 rpm |
| Shank Type | Cylindrical |
| Peripheral Effective Cutting Edge Count | 3 |
| Product Series | R335.18 |

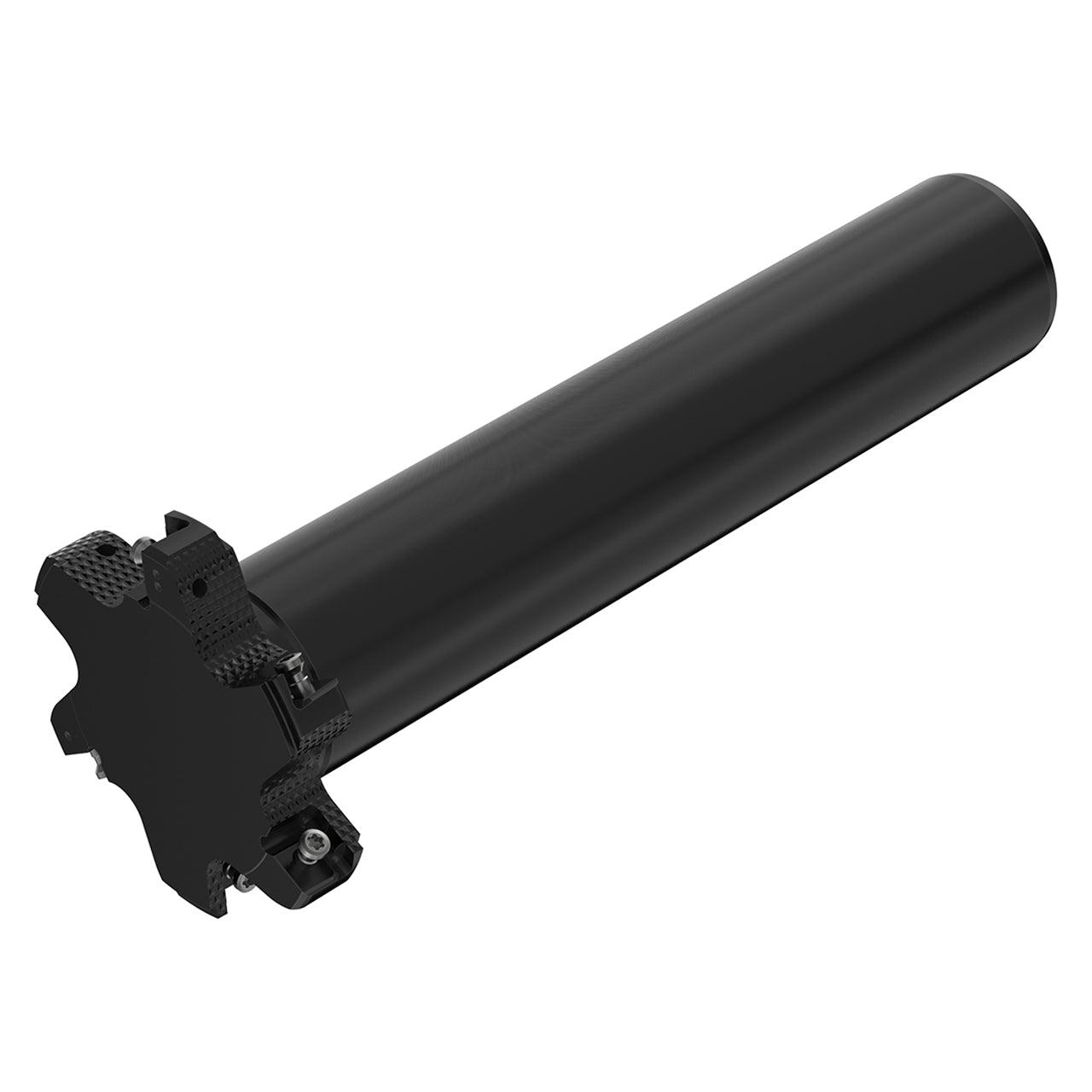

| Product Type | Indexable Slotting Cutter |
