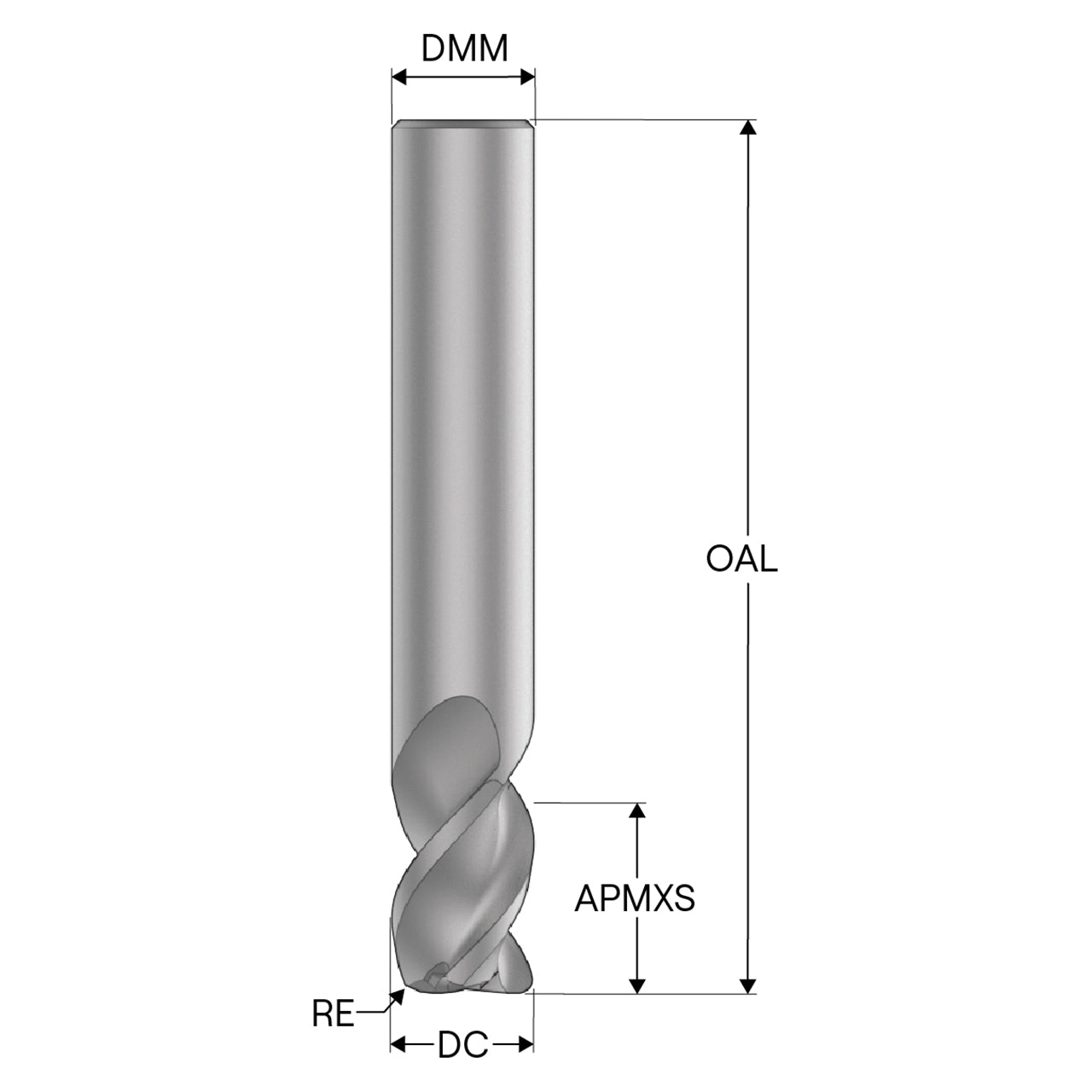

Product Specifications
| Manufacturer Part Number | 10072661 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 1.000" |
| Cutting Geometry Type | S738R |
| Coating | AlTiN |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Face Cutting Edge Count | 7 |
| Flute Helix Angle (Degree) | 38 Degree |
| Overall Length (Decimal Inch) | 4.000" |
| Cutting Edge Count | 7 |
| Corner Radius (Decimal Inch) | 0.030" |
| Shank Type | Cylindrical |
| Product Series | S738R |

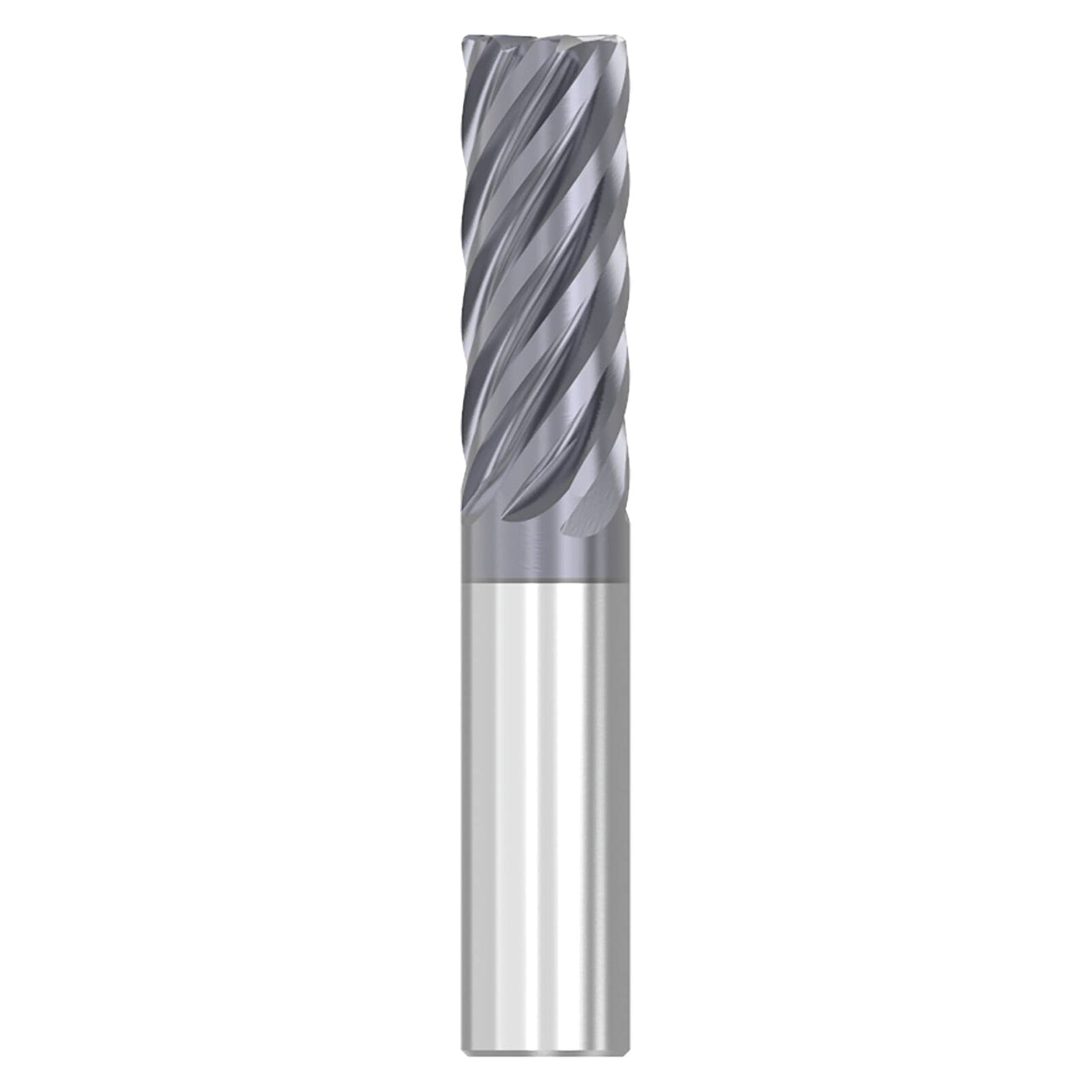

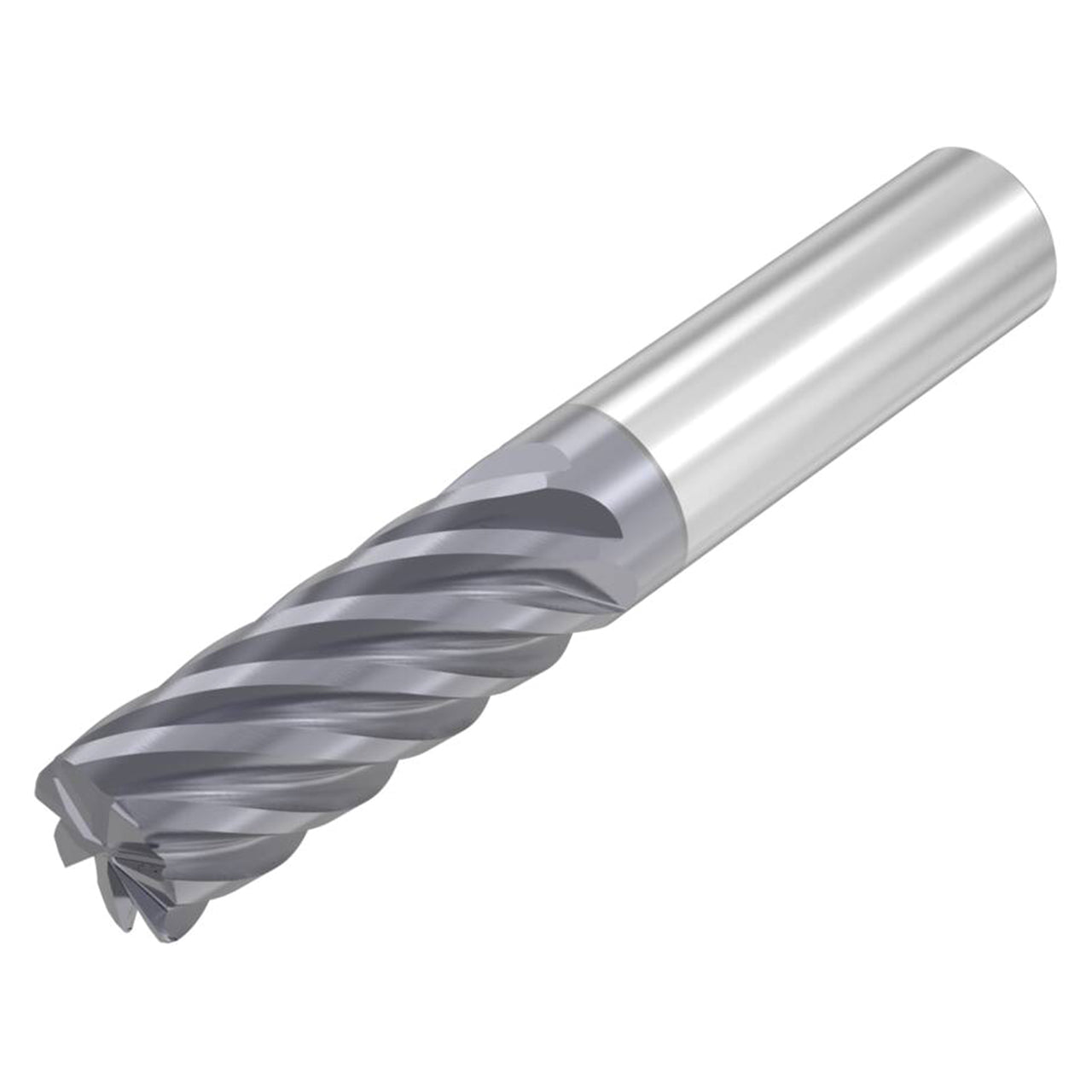

| Product Type | Corner Radius End Mill |
