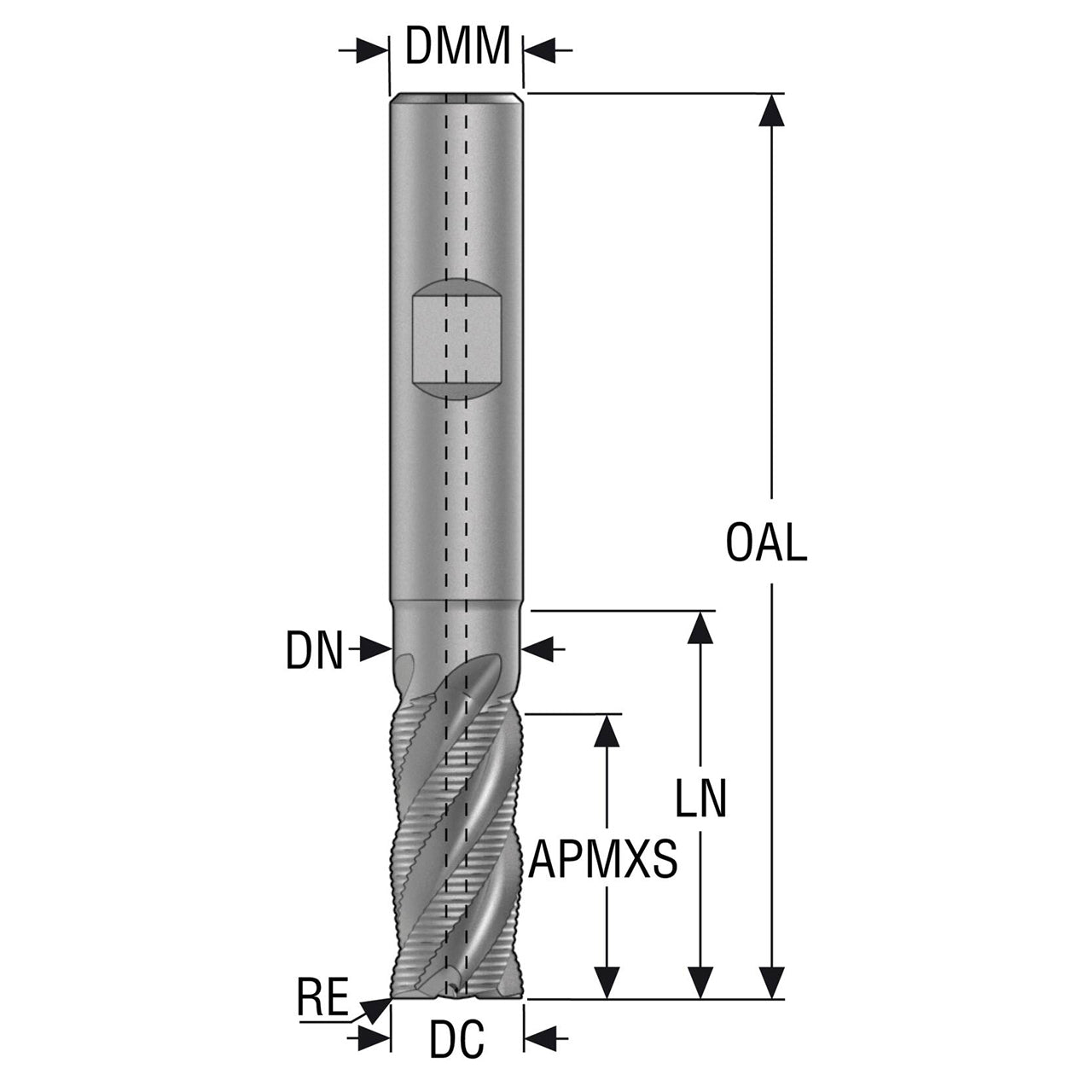

Product Specifications
| Manufacturer Part Number | 10072339 |
| Cutting Diameter (mm) | 6.00mm |
| Cutting Diameter 1 (mm) | 6.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 5.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 11.58mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 7.80mm |
| Overall Length (mm) | 57.00mm |
| Neck Length (mm) | 18.50mm |
| Neck Length 1 (mm) | 18.50mm |
| Cutting Edge Effective Length (mm) | 13.00mm |
| Maximum Depth of Cut (mm) | 13.00mm |
| Corner Radius (mm) | 0.20mm |
| Shank Type | Weldon |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | JHP794 |
| Cutting Geometry Type Technical | JHP794 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 40 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 10.5 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | Yes |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 4 |
| Material | Carbide |
| Coating | Tan |
| Product Type | Corner Radius End Mill |
