Product Specifications
| Manufacturer Part Number | 10070288 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 3.937" |
| Minimum Cutting Diameter Internal (mm) | 100.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 4.724" |
| Minimum Cutting Diameter Internal 3 (mm) | 120.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 2.559" |
| Functional Length (mm) | 65.00mm |
| Head Length (Decimal Inch) | 1.693" |
| Head Length (mm) | 43.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.055" |
| Maximum Radial Cutting Depth (mm) | 1.40mm |
| Maximum Cutting Depth (Decimal Inch) | 0.323" |
| Maximum Cutting Depth (mm) | 8.20mm |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 121.6 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6.3 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 31.6 Degree |
| Cutting Direction | Left Hand |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Insert Clamping System | D |
| Shank Type | Seco-Capto |
| Insert Shape Code | D |

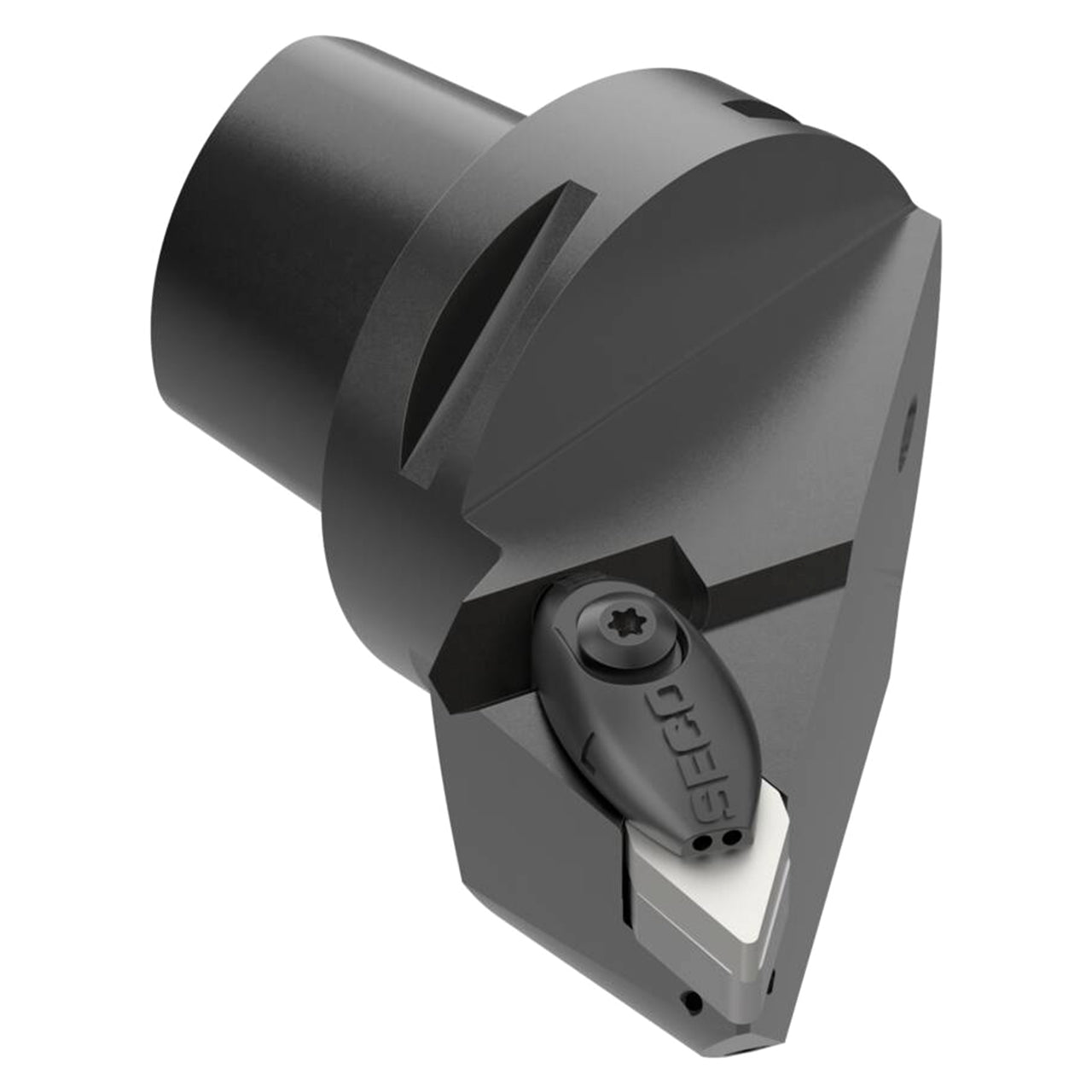

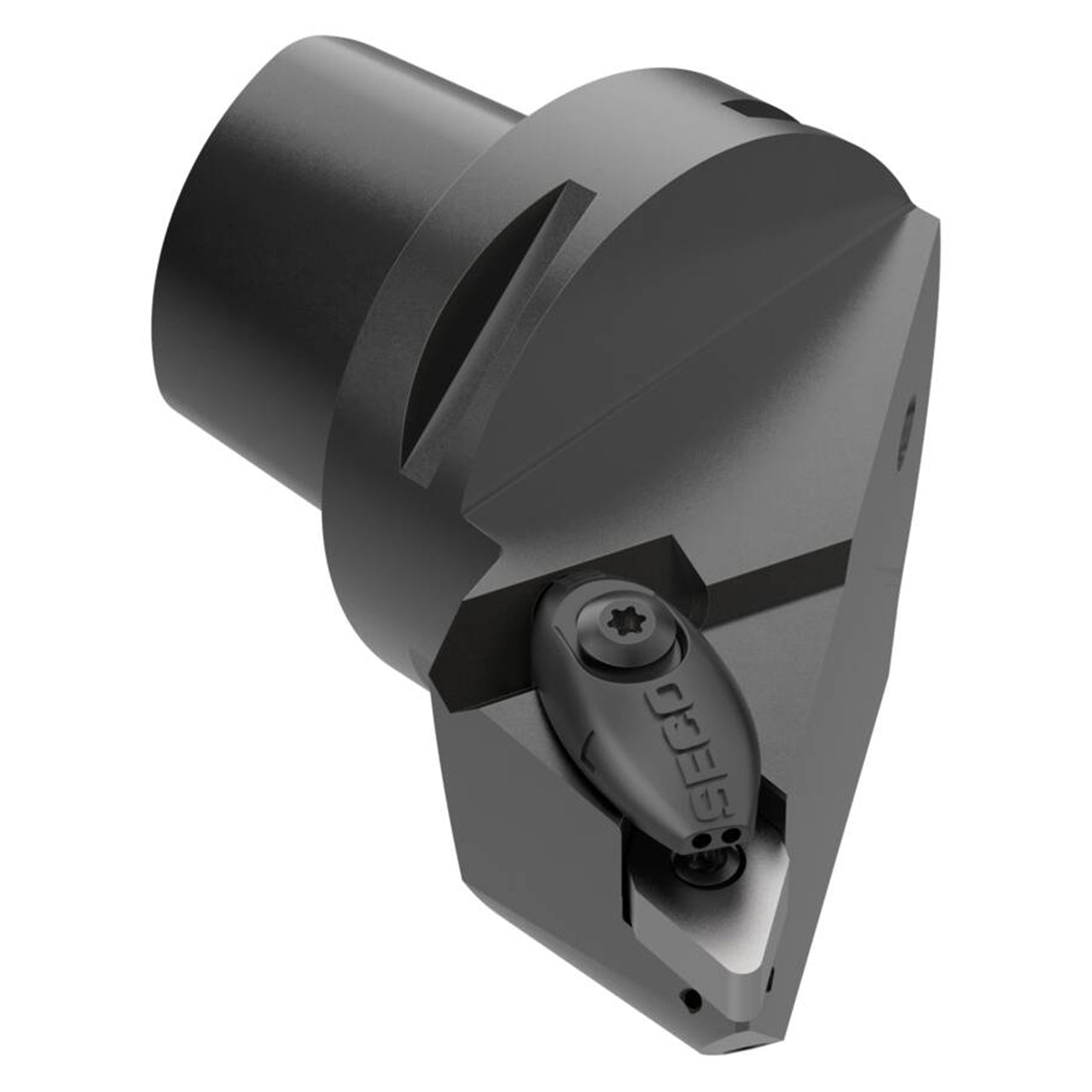

| Product Type | Modular Turning Head |
