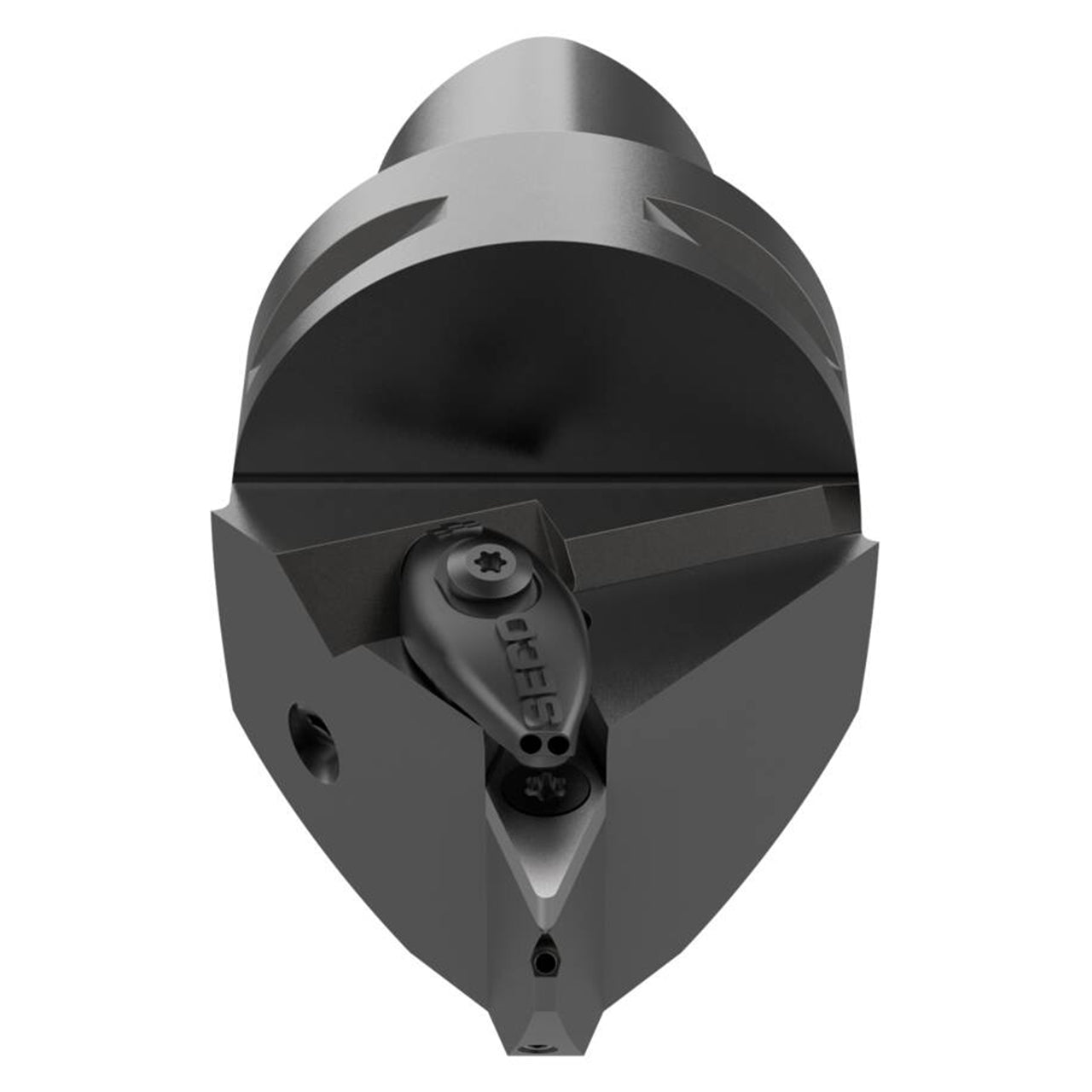

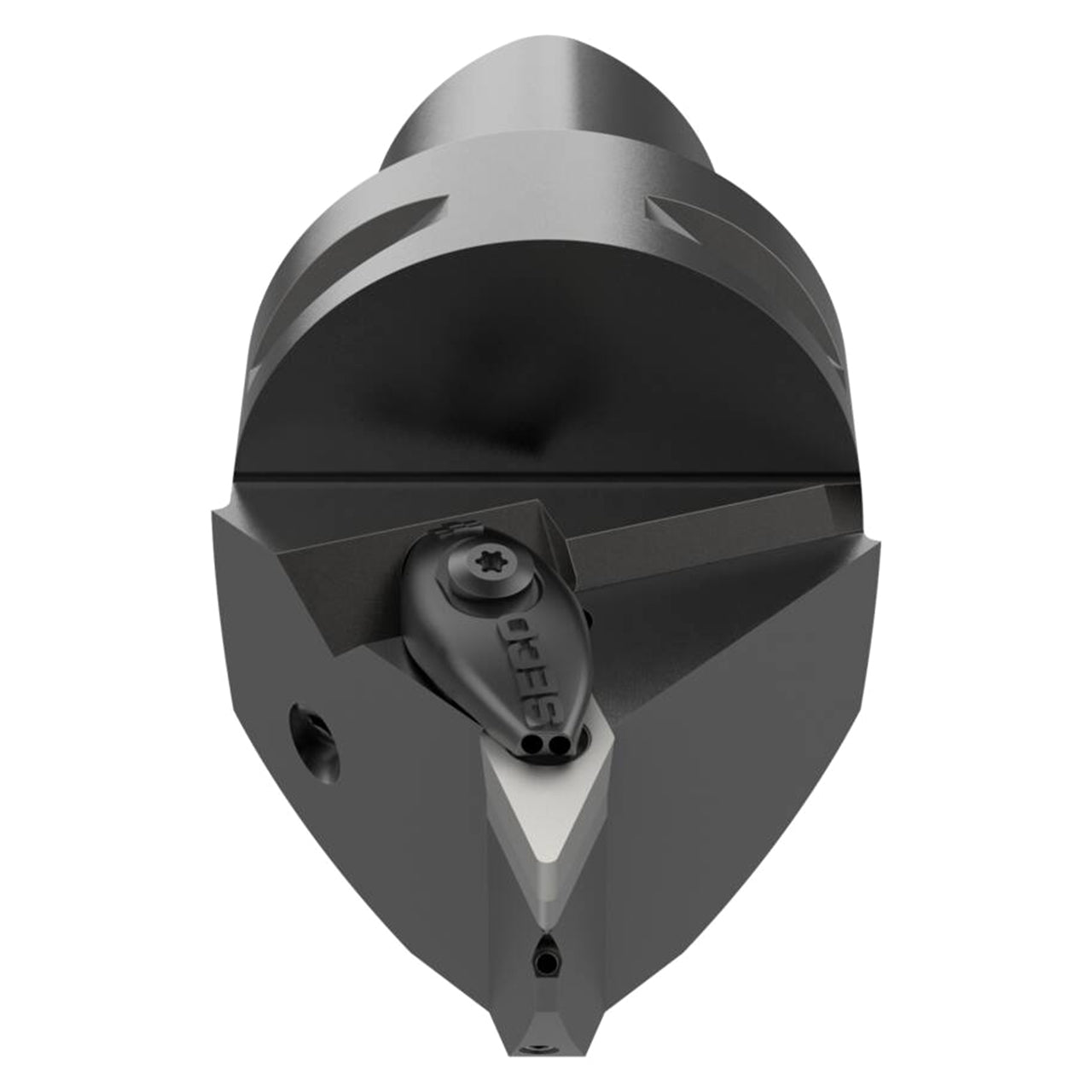

Product Specifications
| Manufacturer Part Number | 10070213 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 3.937" |
| Minimum Cutting Diameter Internal 3 (mm) | 100.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 2.362" |
| Functional Length (mm) | 60.00mm |
| Head Length (Decimal Inch) | 1.575" |
| Head Length (mm) | 40.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.598" |
| Maximum Cutting Depth (mm) | 15.20mm |
| Tool Cutting Edge Angle (Degree) | 72.5 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 162.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 72.5 Degree |
| Maximum Ramping Angle (Degree) | 47.5 Degree |
| Cutting Direction | Neutral |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Insert Clamping System | D |
| Shank Type | Seco-Capto |
| Insert Shape Code | V |
| Product Type | Modular Turning Head |
