Product Specifications
| Manufacturer Part Number | 10068160 |
| Cutting Diameter (Decimal Inch) | 1.595" |
| Cutting Diameter (mm) | 40.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.789" |
| Contact Surface Diameter Machine Side (mm) | 45.45mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.500" |
| Maximum Cutting Diameter (mm) | 63.50mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 4.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 125.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 4.095" |
| Minimum Helical Interpolation Hole Diameter (mm) | 104.00mm |
| Functional Length (Decimal Inch) | 1.500" |
| Functional Length (mm) | 38.10mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Maximum Depth of Cut (Decimal Inch) | 0.071" |
| Depth of Key Way (Decimal Inch) | 0.193" |
| Depth of Key Way (mm) | 4.90mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Programming Radius (Decimal Inch) | 0.158" |
| Programming Radius (mm) | 4.02mm |
| Uncut Thickness (Decimal Inch) | 0.0559 |
| Uncut Thickness (mm) | 1.42 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 11 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 11 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 11 Degree |
| Maximum Ramping Angle (Degree) | 2.2 Degree |
| Maximum Rotational Speed (rpm) | 9600 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

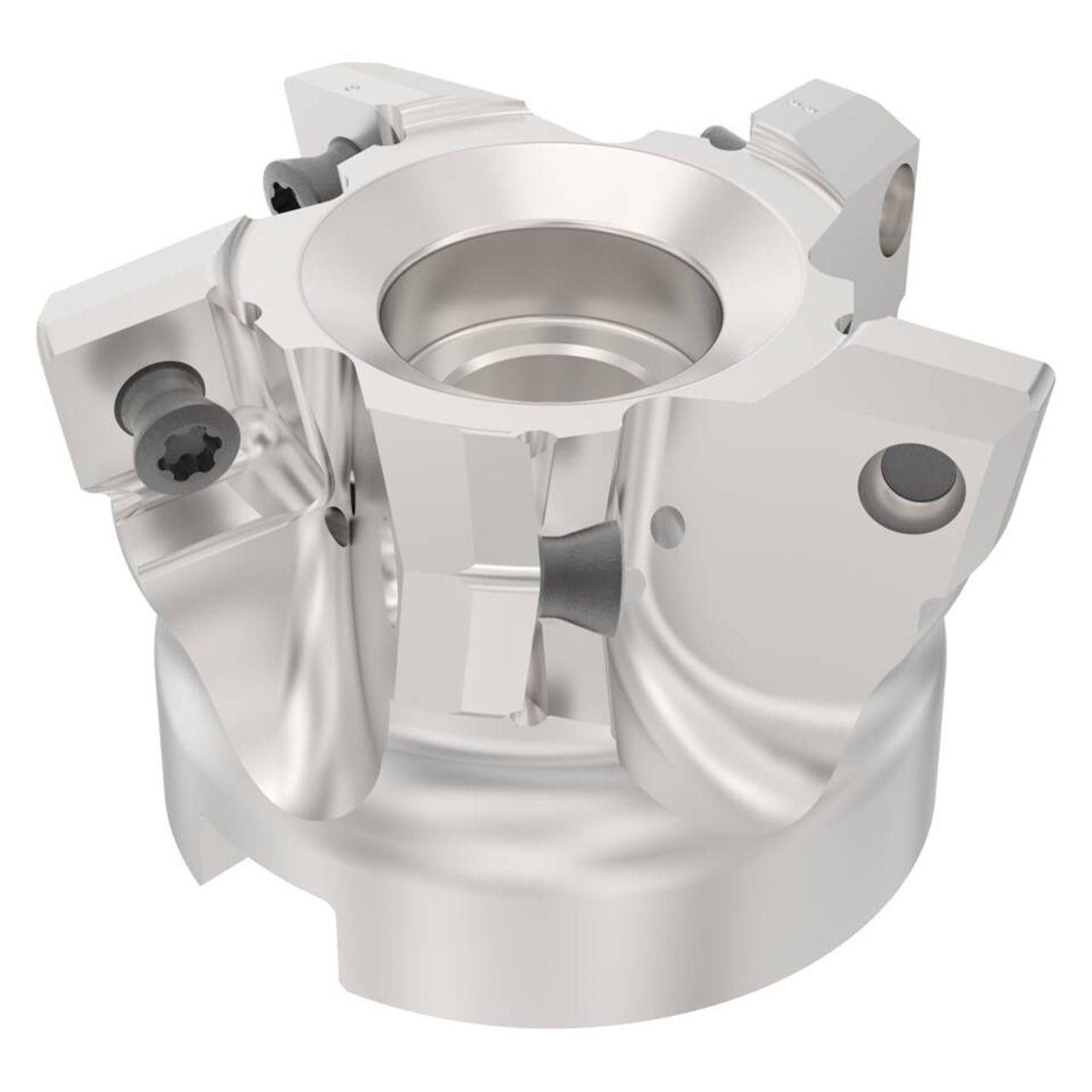

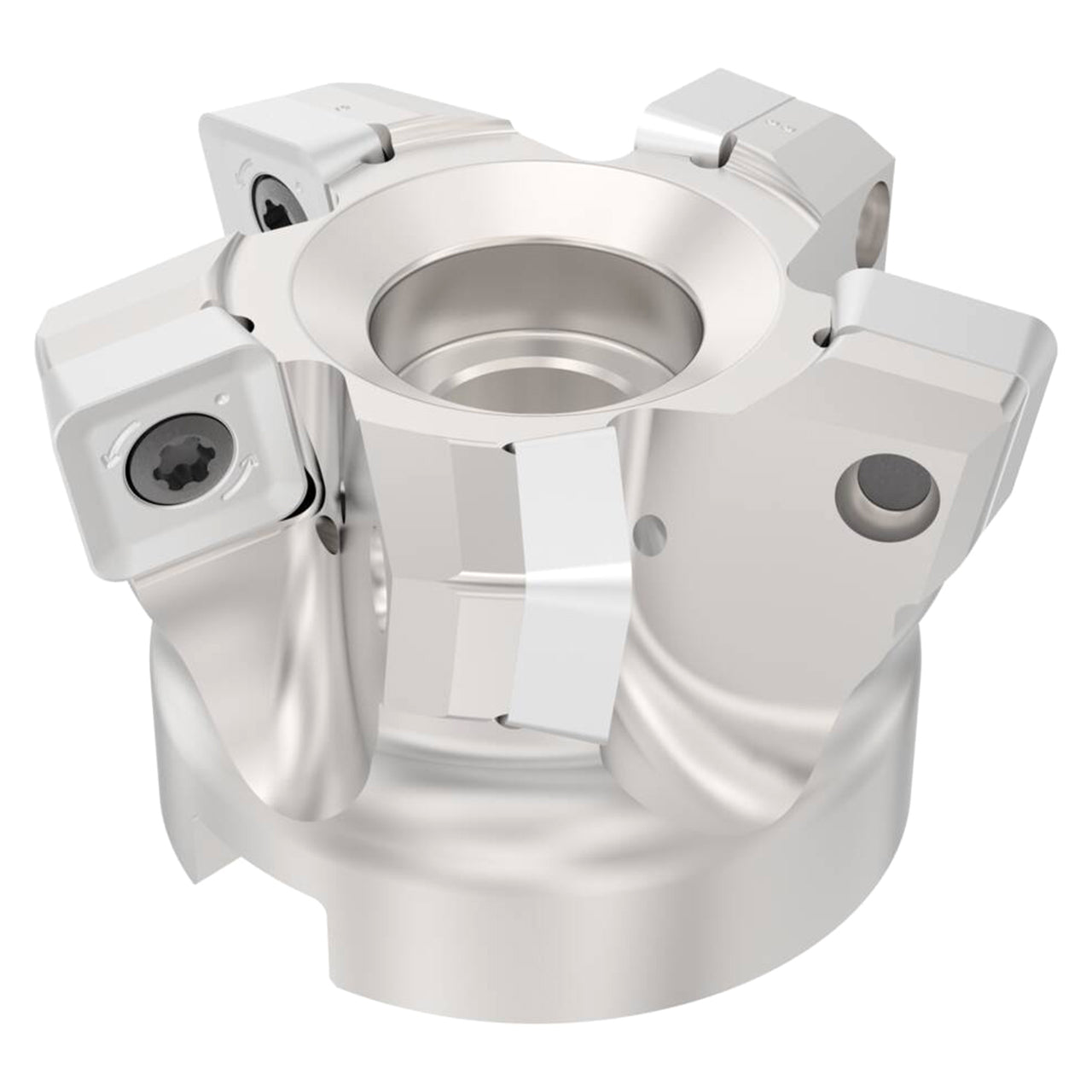

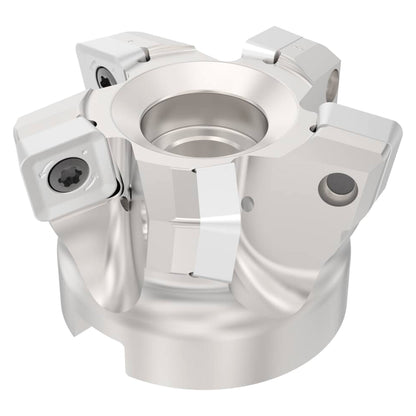

| Product Type | Indexable High-Feed End Mill |
