Product Specifications
| Manufacturer Part Number | 10067015 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.911" |
| Maximum Helical Interpolation Hole Diameter (mm) | 73.95mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.348" |
| Minimum Helical Interpolation Hole Diameter (mm) | 59.64mm |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Protruding Length (Decimal Inch) | 2.441" |
| Protruding Length (mm) | 62.00mm |
| Shank Length (Decimal Inch) | 2.728" |
| Shank Length (mm) | 69.30mm |
| Overall Length (Decimal Inch) | 5.169" |
| Overall Length (mm) | 131.30mm |
| Maximum Depth of Cut (mm) | 43.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.693" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -6.5 Degree |
| Rake Radial Angle (Degree) | -6.5 Degree |
| Rake Orthogonal Angle (Degree) | -6.5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Ramping Angle (Degree) | 2.7 Degree |
| Maximum Rotational Speed (rpm) | 13200 rpm |
| Insert Shape Code | X |
| Shank Type | Weldon |

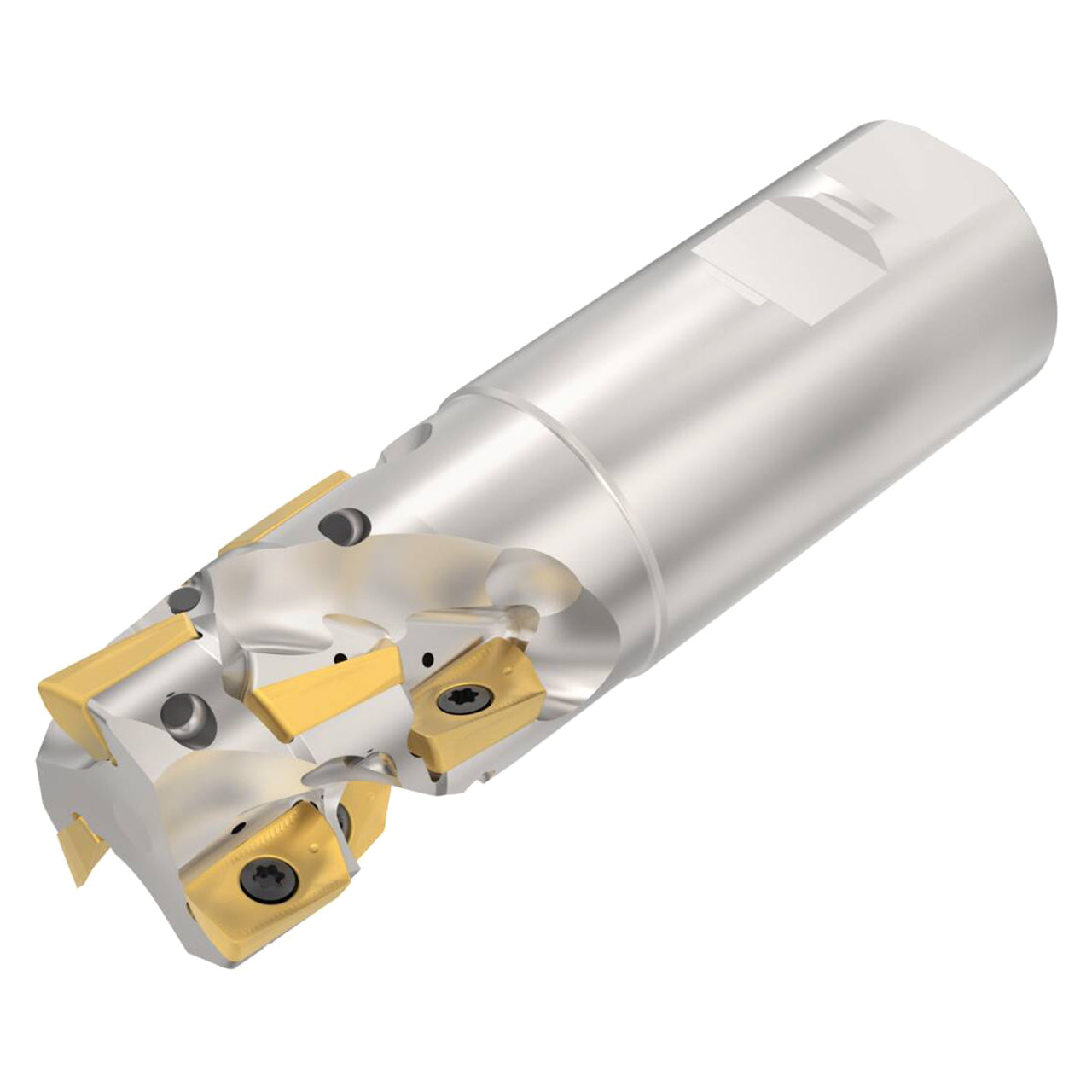

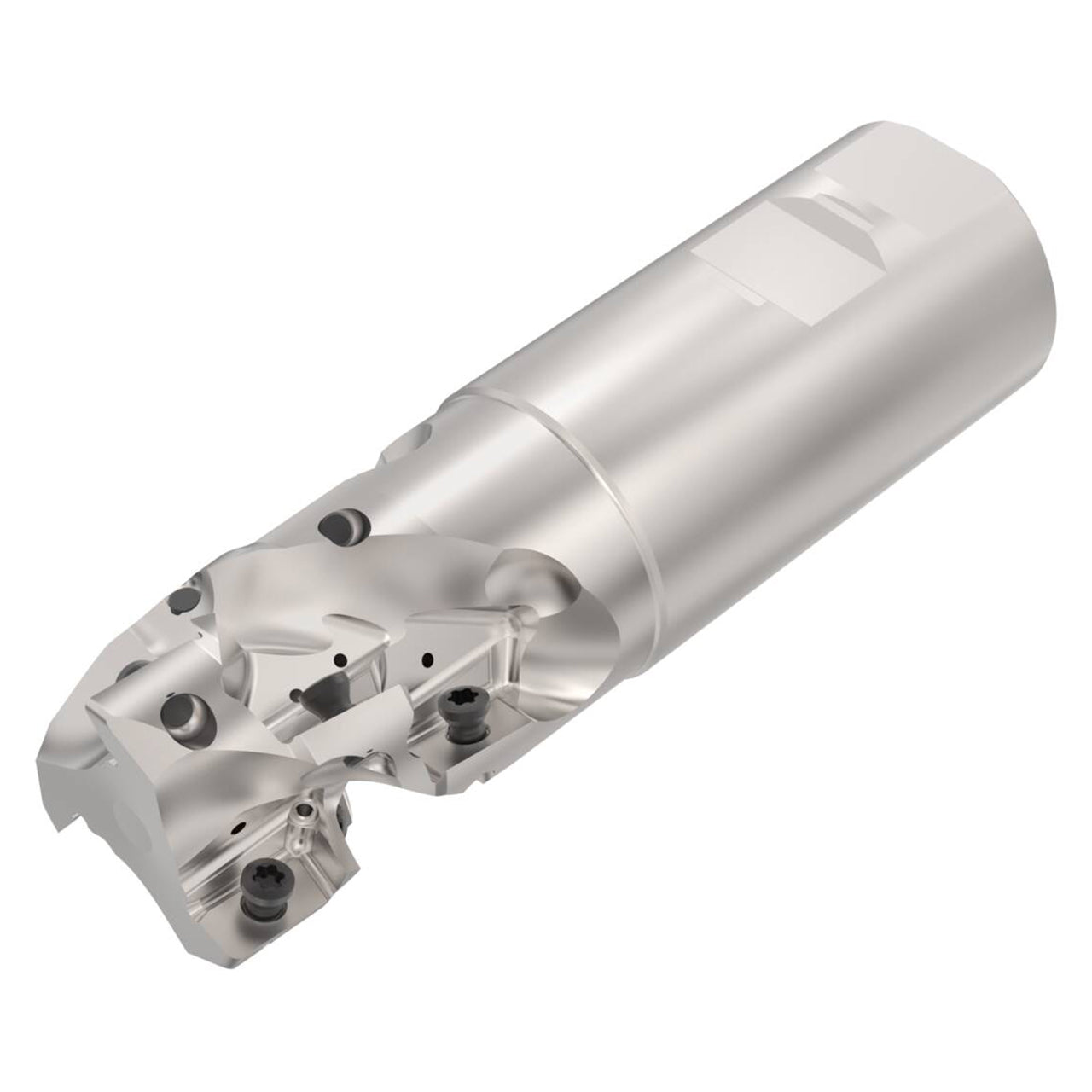

| Product Type | Indexable Square-Shoulder End Mill |
