Product Specifications
| Manufacturer Part Number | 10067014 |
| Cutting Diameter (mm) | 100.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 88.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 197.75mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 183.44mm |
| Functional Length (mm) | 95.00mm |
| Maximum Depth of Cut (mm) | 71.00mm |
| Depth of Key Way (mm) | 9.00mm |
| Keyway Width (mm) | 16.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | 7 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 6 |
| Maximum Ramping Angle (Degree) | 0.8 Degree |
| Maximum Rotational Speed (rpm) | 8300 rpm |
| Insert Shape Code | X |
| Shank Type | Arbor |

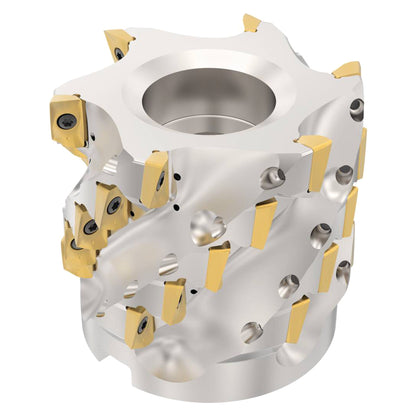

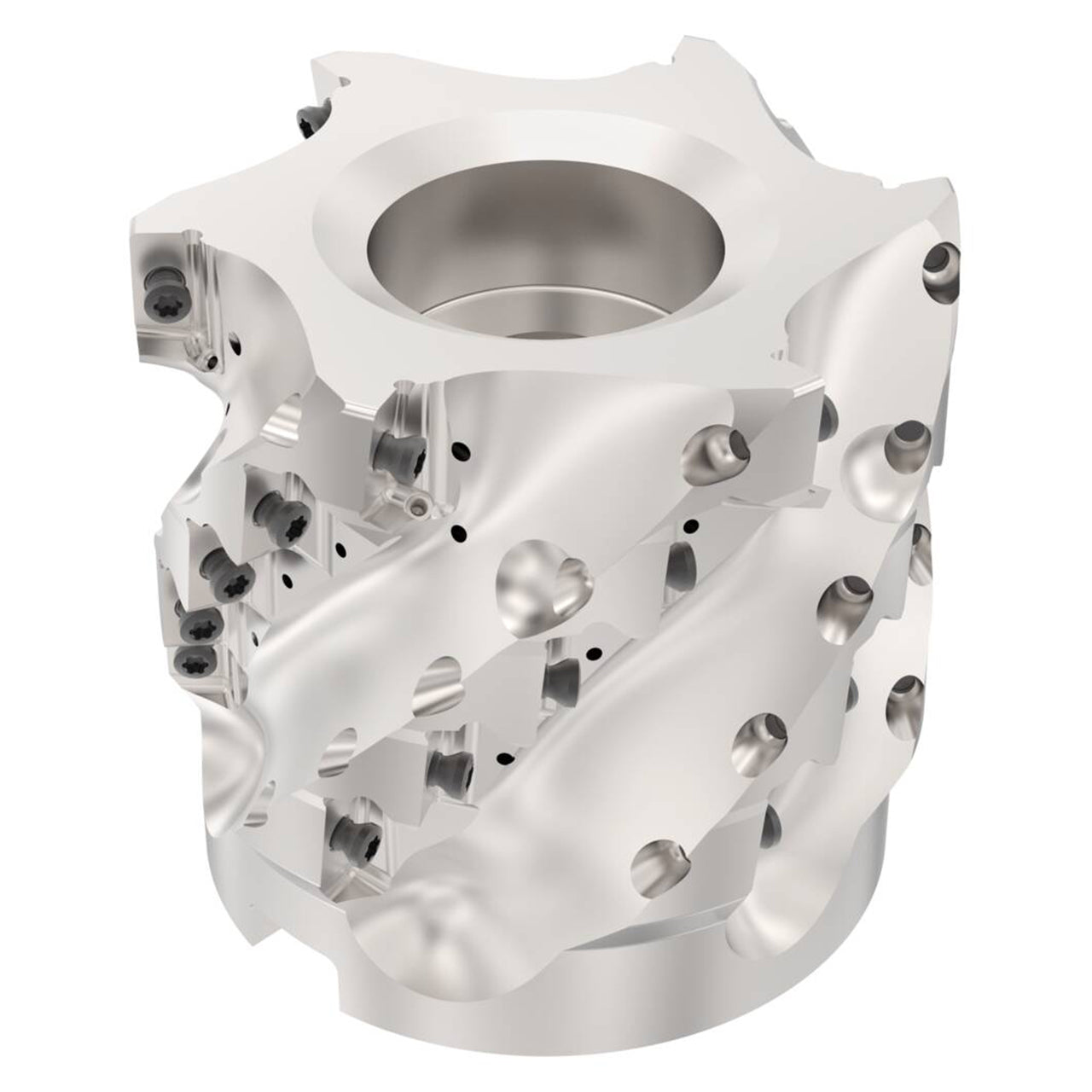

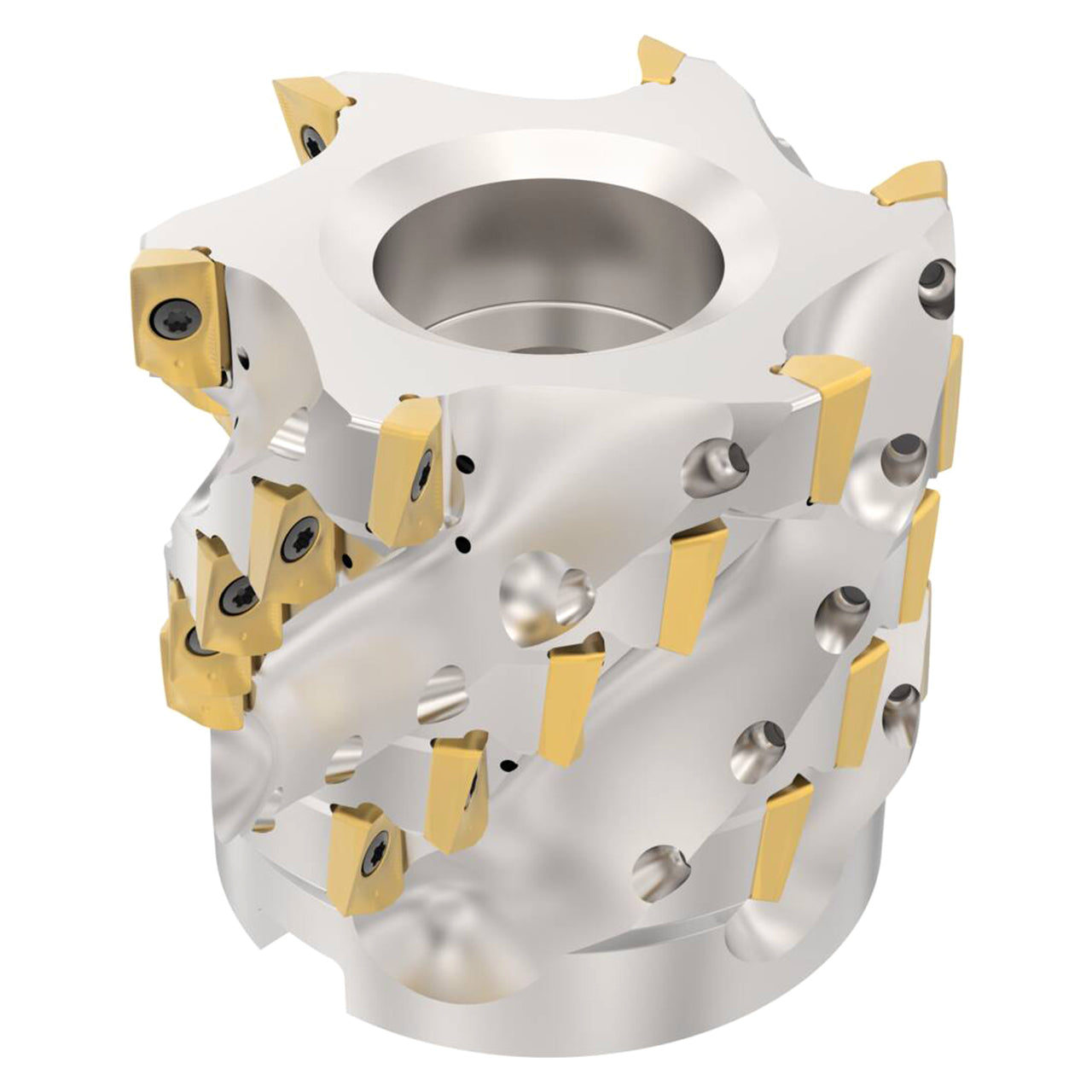

| Product Type | Indexable Square-Shoulder End Mill |
