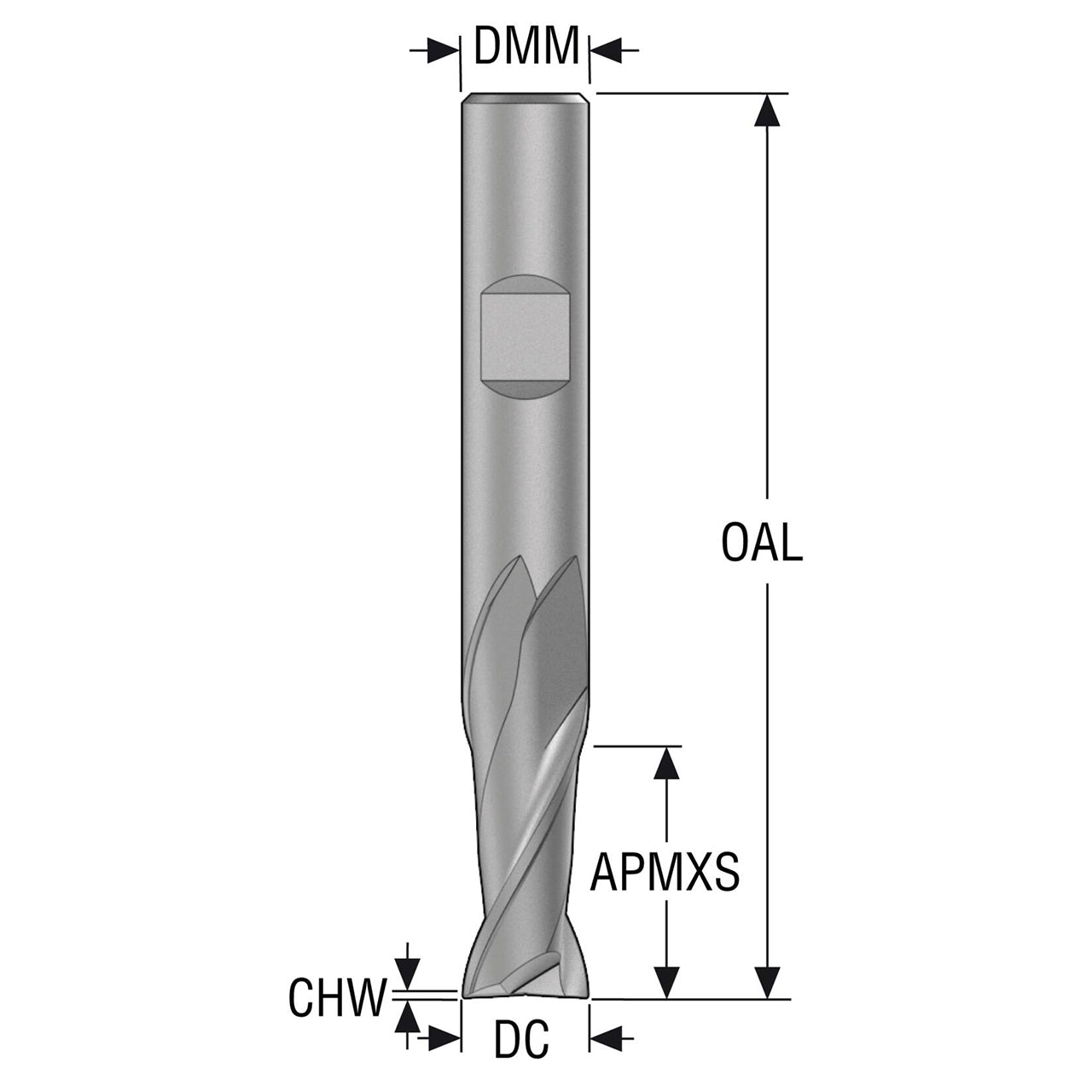

Product Specifications
| Manufacturer Part Number | 10053119 |
| Cutting Diameter (mm) | 12.00mm |
| Cutting Diameter 1 (mm) | 12.00mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 23.75mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Overall Length (mm) | 83.00mm |
| Cutting Edge Effective Length (mm) | 24.00mm |
| Corner Chamfer Width (mm) | 0.12mm |
| Maximum Depth of Cut (mm) | 24.00mm |
| Shank Type | Weldon |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | JSE512 |
| Cutting Geometry Type Technical | JSE512 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 35 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Coating | SIRON-A |

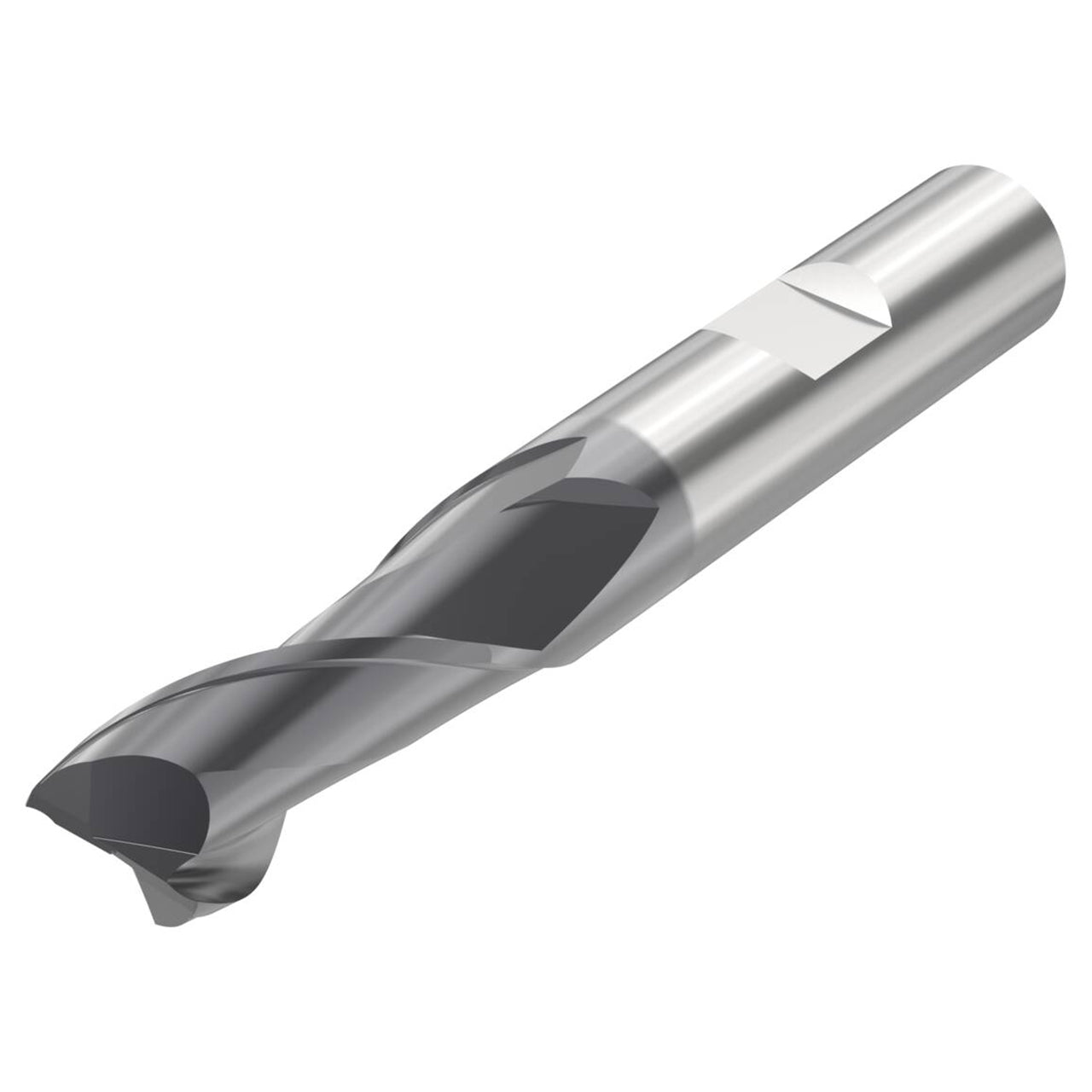

| Product Type | Corner Chamfer End Mill |
