Product Specifications
| Manufacturer Part Number | 10053091 |

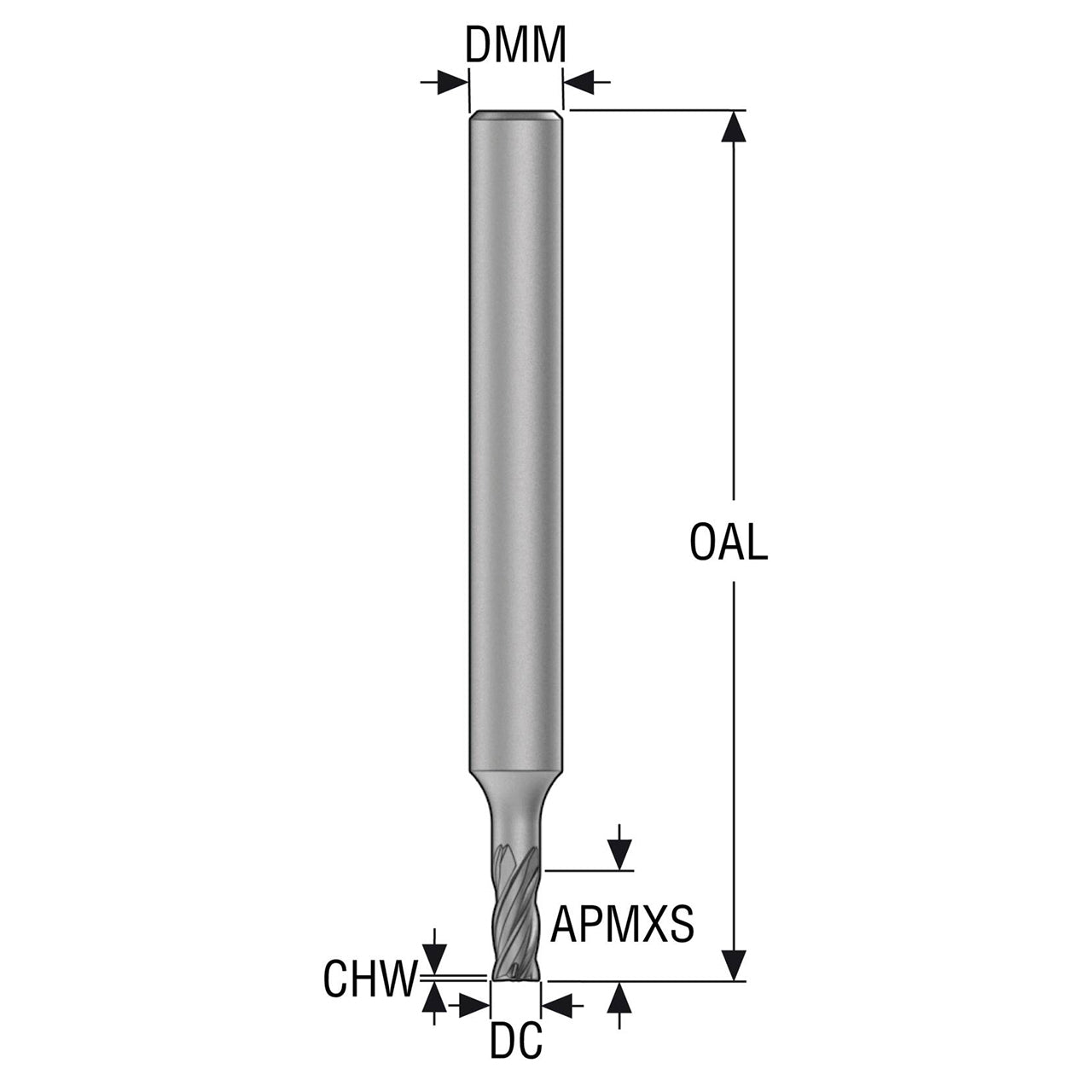

| Cutting Diameter (mm) | 4.00mm |
| Cutting Diameter 1 (mm) | 4.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 4.05mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 7.92mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 5.20mm |
| Overall Length (mm) | 57.00mm |
| Neck Length (mm) | 18.00mm |
| Neck Length 1 (mm) | 18.00mm |
| Cutting Edge Effective Length (mm) | 14.00mm |
| Corner Chamfer Width (mm) | 0.04mm |
| Maximum Depth of Cut (mm) | 14.00mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | JSE514 |
| Cutting Geometry Type Technical | JSE514 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 35 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Number of Flute | 4 |
| Material | Carbide |
| Coating | SIRON-A |

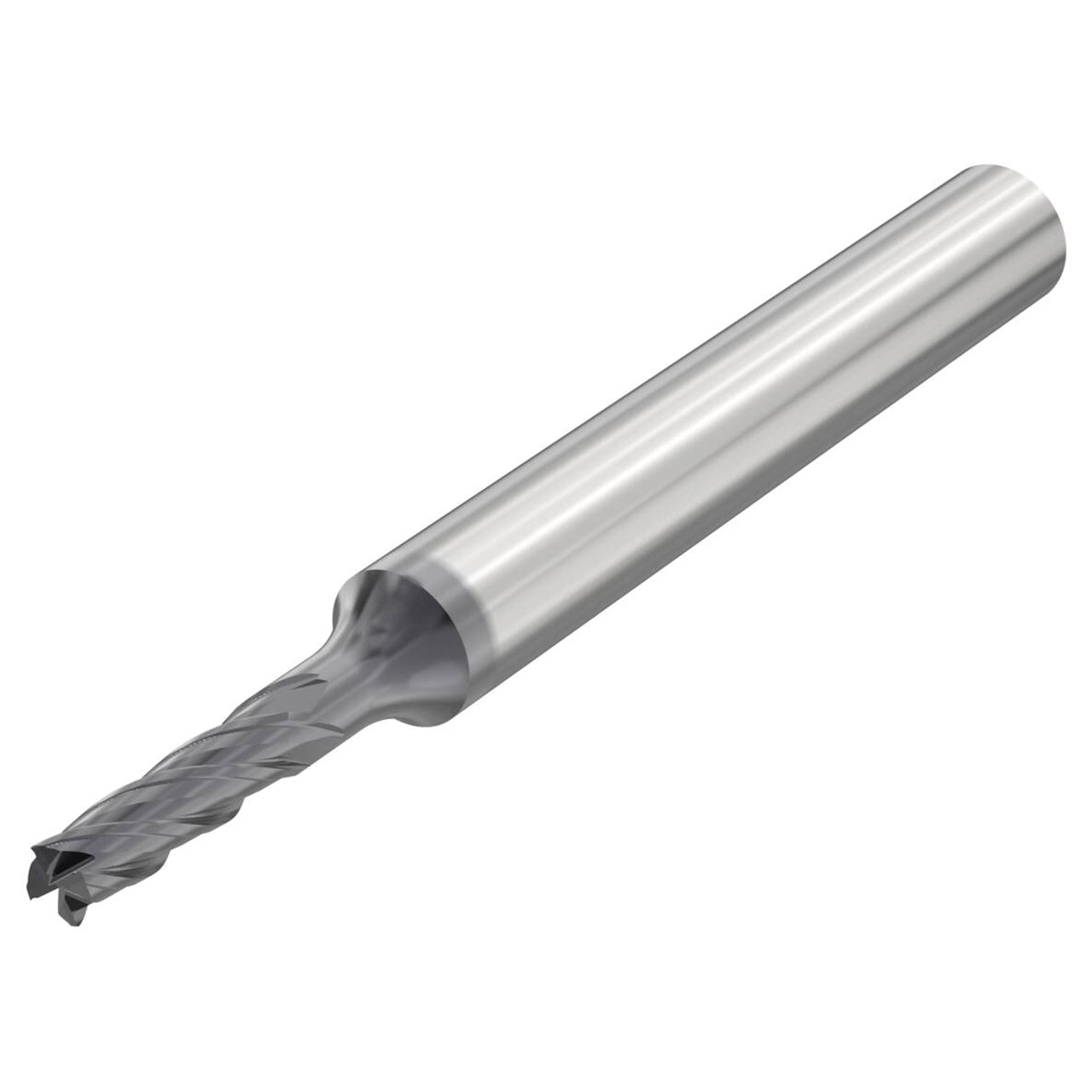

| Product Type | Corner Chamfer End Mill |
