Product Specifications
| Manufacturer Part Number | 10019485 |
| Cutting Diameter (Decimal Inch) | 0.591" |
| Cutting Diameter (mm) | 15.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Functional Length Secondary (Decimal Inch) | 0.394" |
| Functional Length Secondary (mm) | 10.00mm |
| Cutting Edge Count | 6 |
| Insert Hand | Right Hand |

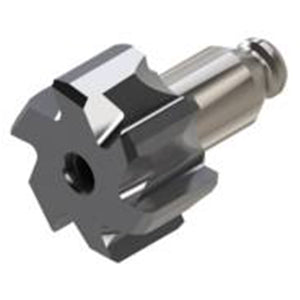

| Product Type | Modular Reamer Head |
