Product Specifications
| Manufacturer Part Number | 10008691 |

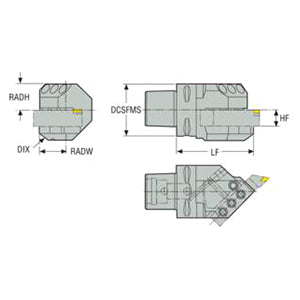

| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 3.347" |
| Maximum Tool Changer Interference Diameter (mm) | 85.00mm |
| Functional Height (Decimal Inch) | 0.750" |
| Functional Height (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 3.740" |
| Functional Length (mm) | 95.00mm |
| Workpiece Side Body Angle (Degree) | 45 Degree |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.457" |
| Radial Body Width (Decimal Inch) | 1.260" |
| Radial Body Width (mm) | 32.00mm |

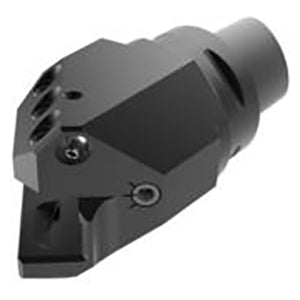

| Product Type | Modular Tool Holding System Adapter |
