Product Specifications
| Manufacturer Part Number | 10008689 |

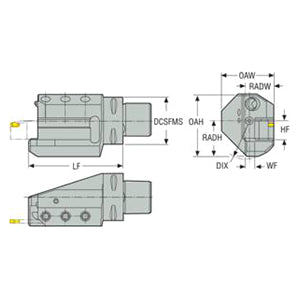

| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 3.937" |
| Maximum Tool Changer Interference Diameter (mm) | 100.00mm |
| Functional Height (Decimal Inch) | 1.000" |
| Functional Height (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 4.803" |
| Functional Length (mm) | 122.00mm |
| Overall Height (Decimal Inch) | 3.071" |
| Overall Height (mm) | 78.00mm |
| Overall Width (Decimal Inch) | 2.756" |
| Overall Width (mm) | 70.00mm |
| Functional Width (Decimal Inch) | 0.496" |
| Functional Width (mm) | 12.60mm |
| Workpiece Side Body Angle (Degree) | 19 Degree |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.811" |
| Radial Body Width (Decimal Inch) | 1.496" |
| Radial Body Width (mm) | 38.00mm |
| Version (Internal/External/Both) | External |

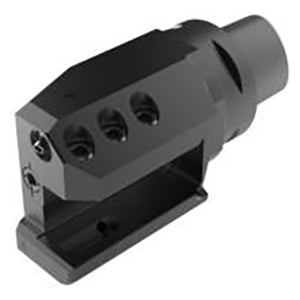

| Product Type | Modular Tool Holding System Adapter |
