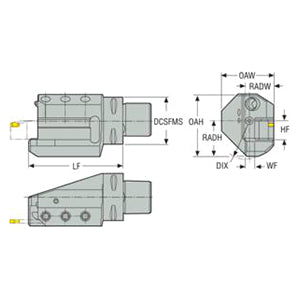

Product Specifications
| Manufacturer Part Number | 10008685 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 3.347" |
| Maximum Tool Changer Interference Diameter (mm) | 85.00mm |
| Functional Height (Decimal Inch) | 0.750" |
| Functional Height (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 4.134" |
| Functional Length (mm) | 105.00mm |
| Overall Height (Decimal Inch) | 2.717" |
| Overall Height (mm) | 69.00mm |
| Overall Width (Decimal Inch) | 2.441" |
| Overall Width (mm) | 62.00mm |
| Functional Width (Decimal Inch) | 0.431" |
| Functional Width (mm) | 10.95mm |
| Workpiece Side Body Angle (Degree) | 20 Degree |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.457" |
| Radial Body Width (Decimal Inch) | 1.260" |
| Radial Body Width (mm) | 32.00mm |
| Version (Internal/External/Both) | External |

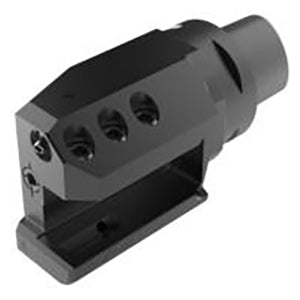

| Product Type | Modular Tool Holding System Adapter |
