Product Specifications
| Manufacturer Part Number | 10008680 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 3.347" |
| Maximum Tool Changer Interference Diameter (mm) | 85.00mm |
| Functional Height (Decimal Inch) | 0.750" |
| Functional Height (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 1.809" |
| Functional Length (mm) | 45.95mm |
| Protruding Length (Decimal Inch) | 2.559" |
| Protruding Length (mm) | 65.00mm |
| Overall Height (Decimal Inch) | 2.717" |
| Overall Height (mm) | 69.00mm |
| Overall Width (Decimal Inch) | 2.520" |
| Overall Width (mm) | 64.00mm |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.457" |
| Radial Body Width (Decimal Inch) | 1.260" |
| Radial Body Width (mm) | 32.00mm |
| Version (Internal/External/Both) | External |

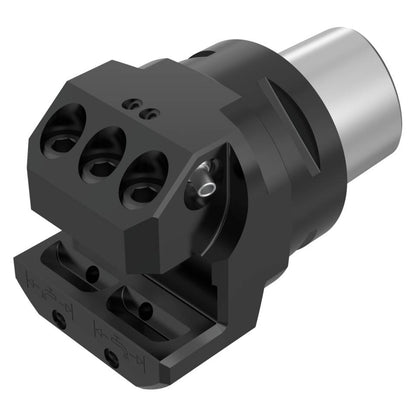

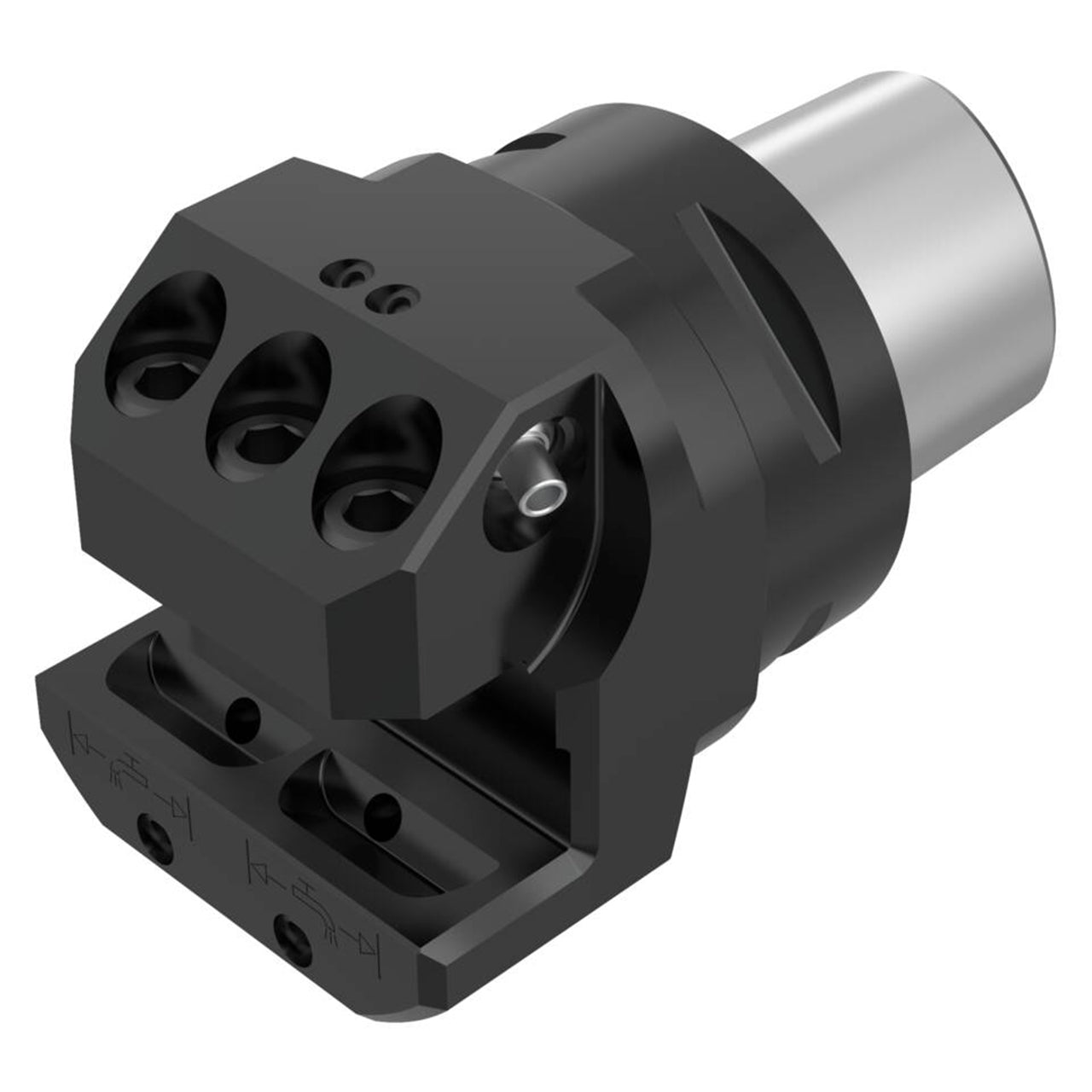

| Product Type | Modular Tool Holding System Adapter |
