Product Specifications

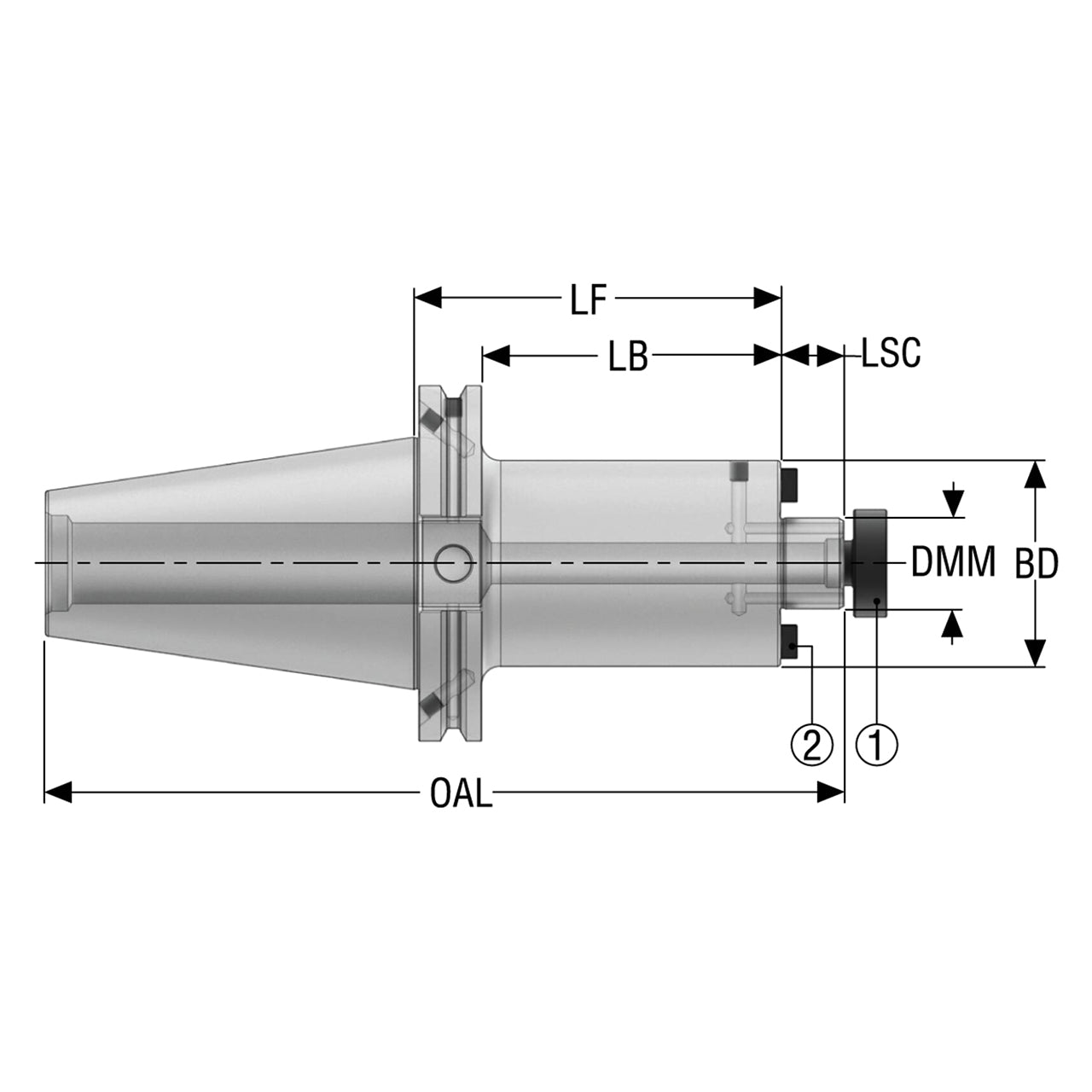

| Manufacturer Part Number | 10008265 |
| Body Diameter (Decimal Inch) | 3.500" |
| Body Diameter (mm) | 88.90mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.500" |
| Connection Diameter Workpiece Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Body Length (Decimal Inch) | 3.250" |
| Body Length (mm) | 82.55mm |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 0.937" |
| Clamping Length (mm) | 23.80mm |
| Overall Length (Decimal Inch) | 8.937" |
| Overall Length (mm) | 227.00mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

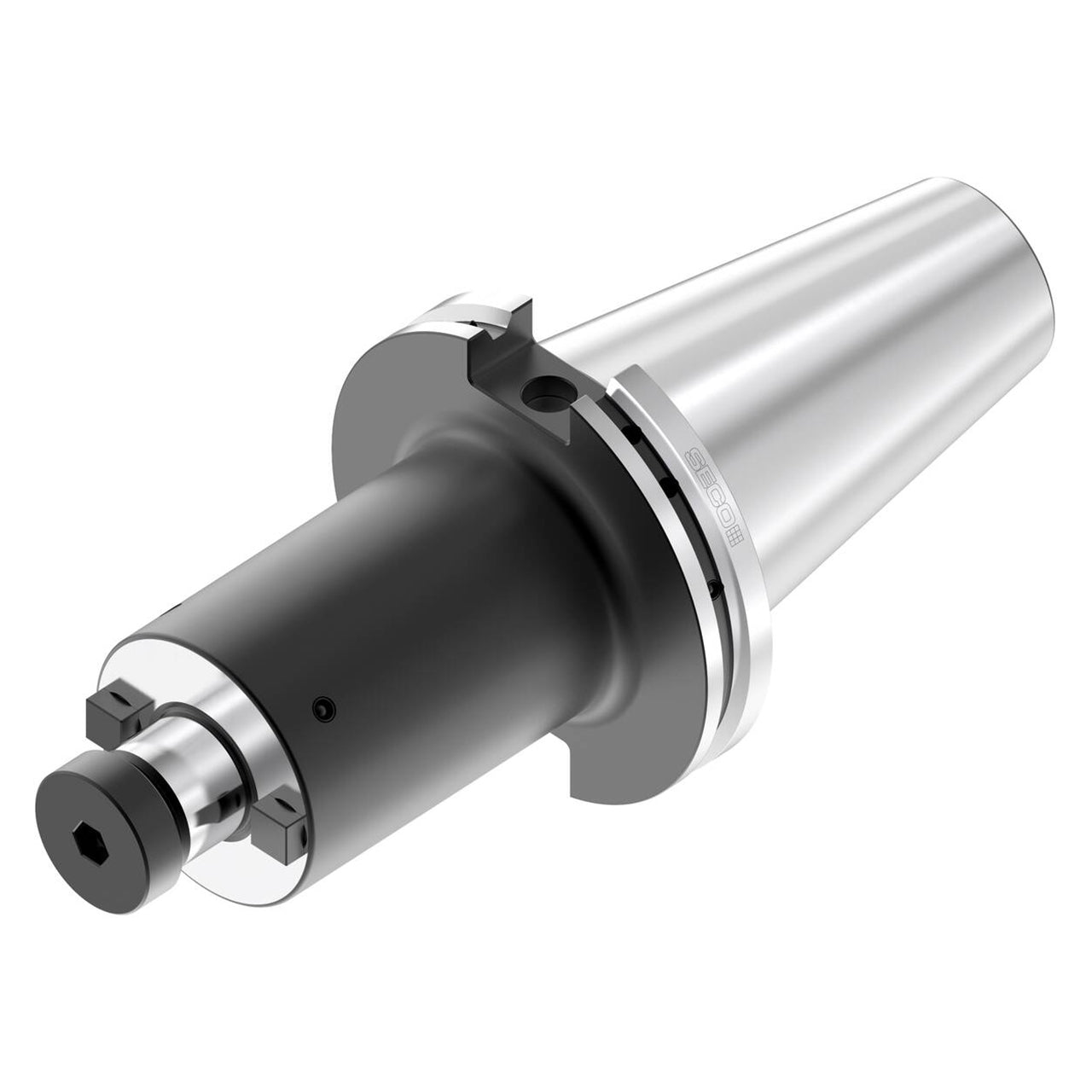

| Product Type | Shell Mill Holder |
