Product Specifications

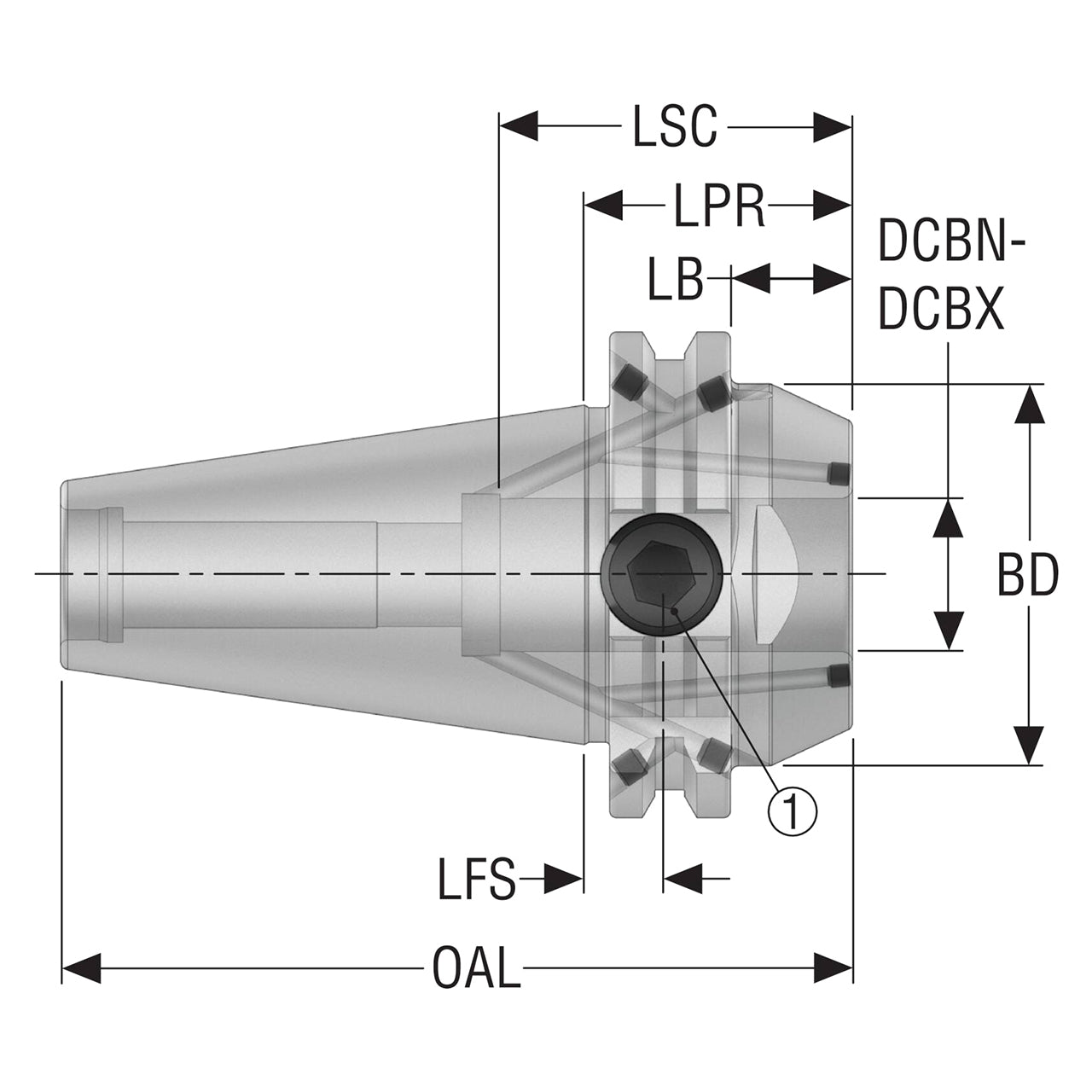

| Manufacturer Part Number | 10007247 |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Thread Diameter Size 1 | M18x2 |
| Thread Diameter Size 2 | M14 |
| Body Length (Decimal Inch) | 0.626" |
| Body Length (mm) | 15.90mm |
| Functional Length Secondary (Decimal Inch) | 0.394" |
| Functional Length Secondary (mm) | 10.00mm |
| Protruding Length (Decimal Inch) | 1.378" |
| Protruding Length (mm) | 35.00mm |
| Clamping Length (Decimal Inch) | 1.811" |
| Clamping Length (mm) | 46.00mm |
| Overall Length (Decimal Inch) | 4.071" |
| Overall Length (mm) | 103.40mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
