Product Specifications

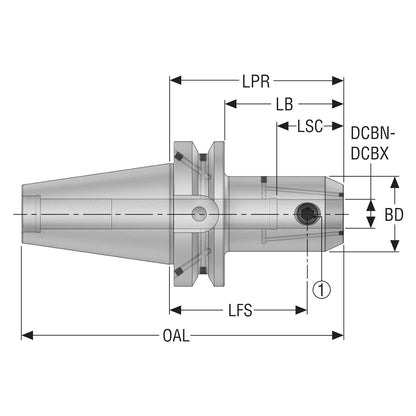

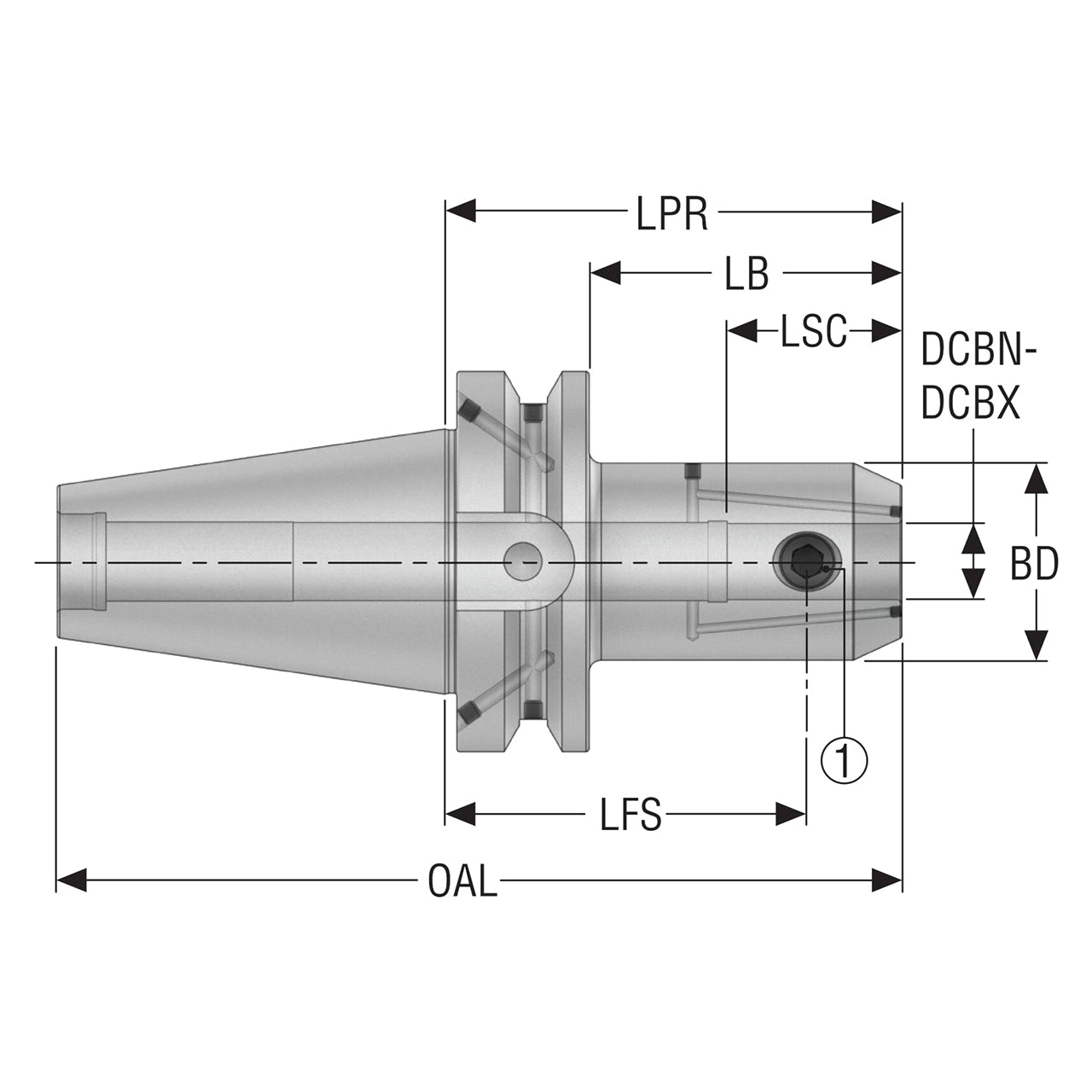

| Manufacturer Part Number | 10007225 |
| Body Diameter (Decimal Inch) | 1.890" |
| Body Diameter (mm) | 48.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Minimum Connection Bore Diameter (mm) | 16.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 3.228" |
| Body Length (mm) | 82.00mm |
| Functional Length Secondary (Decimal Inch) | 3.780" |
| Functional Length Secondary (mm) | 96.00mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Clamping Length (Decimal Inch) | 1.732" |
| Clamping Length (mm) | 44.00mm |
| Overall Length (Decimal Inch) | 8.732" |
| Overall Length (mm) | 221.80mm |
| Data Chip Provision | 1 |

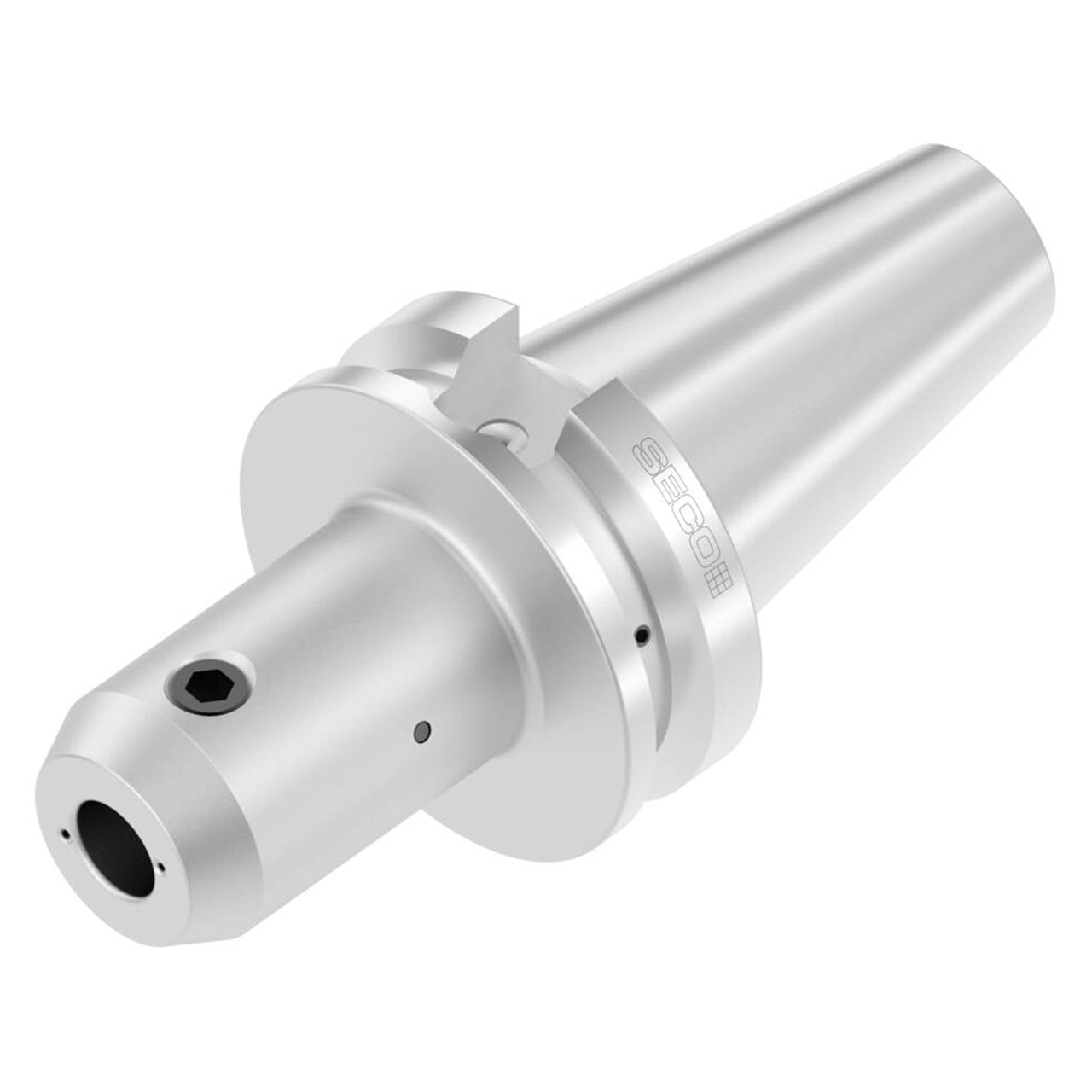

| Product Type | End Mill Holder |
