Product Specifications
| Manufacturer Part Number | 10007206 |

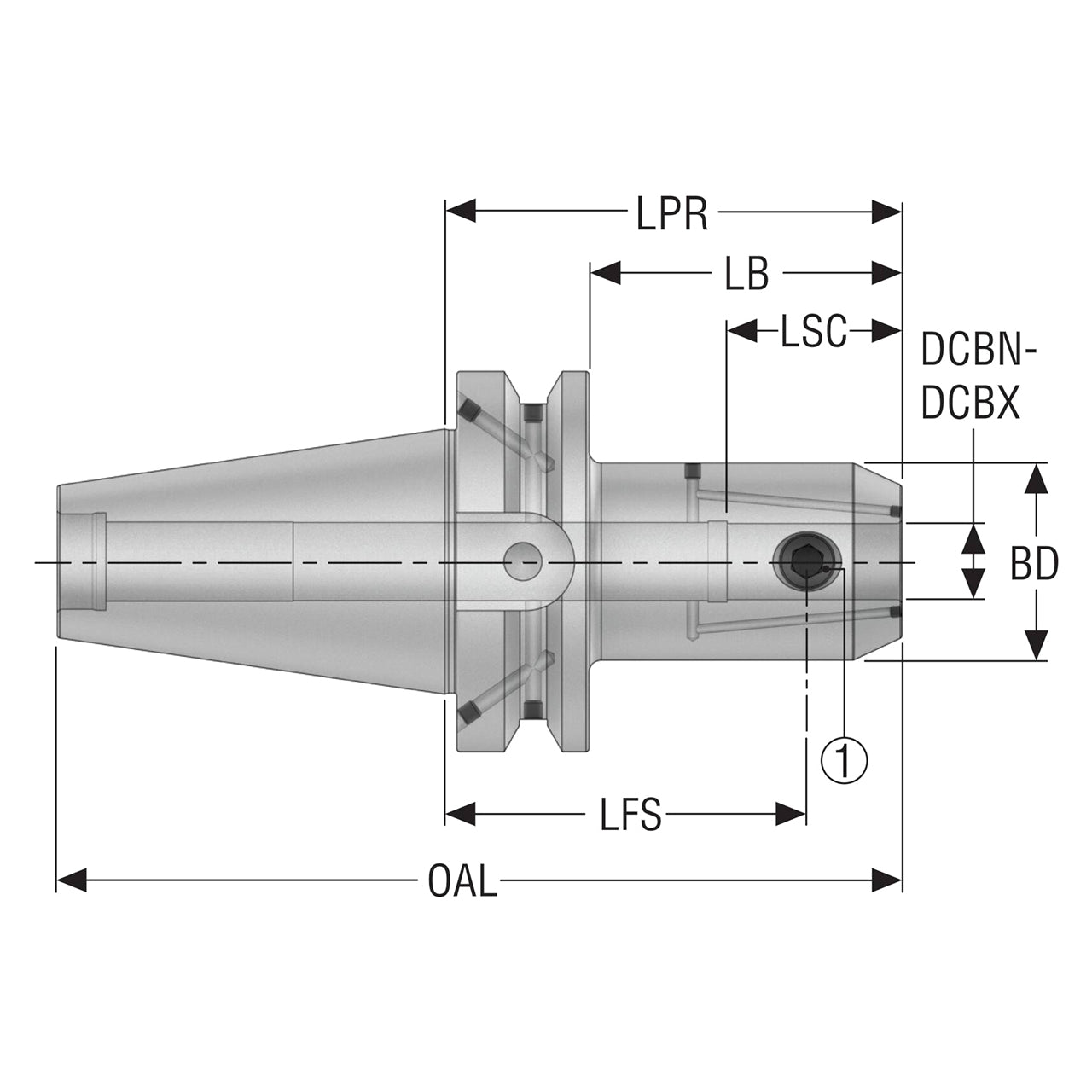

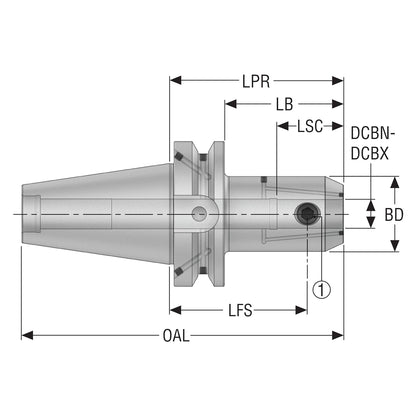

| Body Diameter (Decimal Inch) | 0.984" |
| Body Diameter (mm) | 25.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Maximum Connection Bore Diameter (mm) | 6.00mm |
| Body Length (Decimal Inch) | 0.906" |
| Body Length (mm) | 23.00mm |
| Functional Length Secondary (Decimal Inch) | 1.260" |
| Functional Length Secondary (mm) | 32.00mm |
| Protruding Length (Decimal Inch) | 1.969" |
| Protruding Length (mm) | 50.00mm |
| Clamping Length (Decimal Inch) | 1.378" |
| Clamping Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 4.543" |
| Overall Length (mm) | 115.40mm |
| Data Chip Provision | 1 |

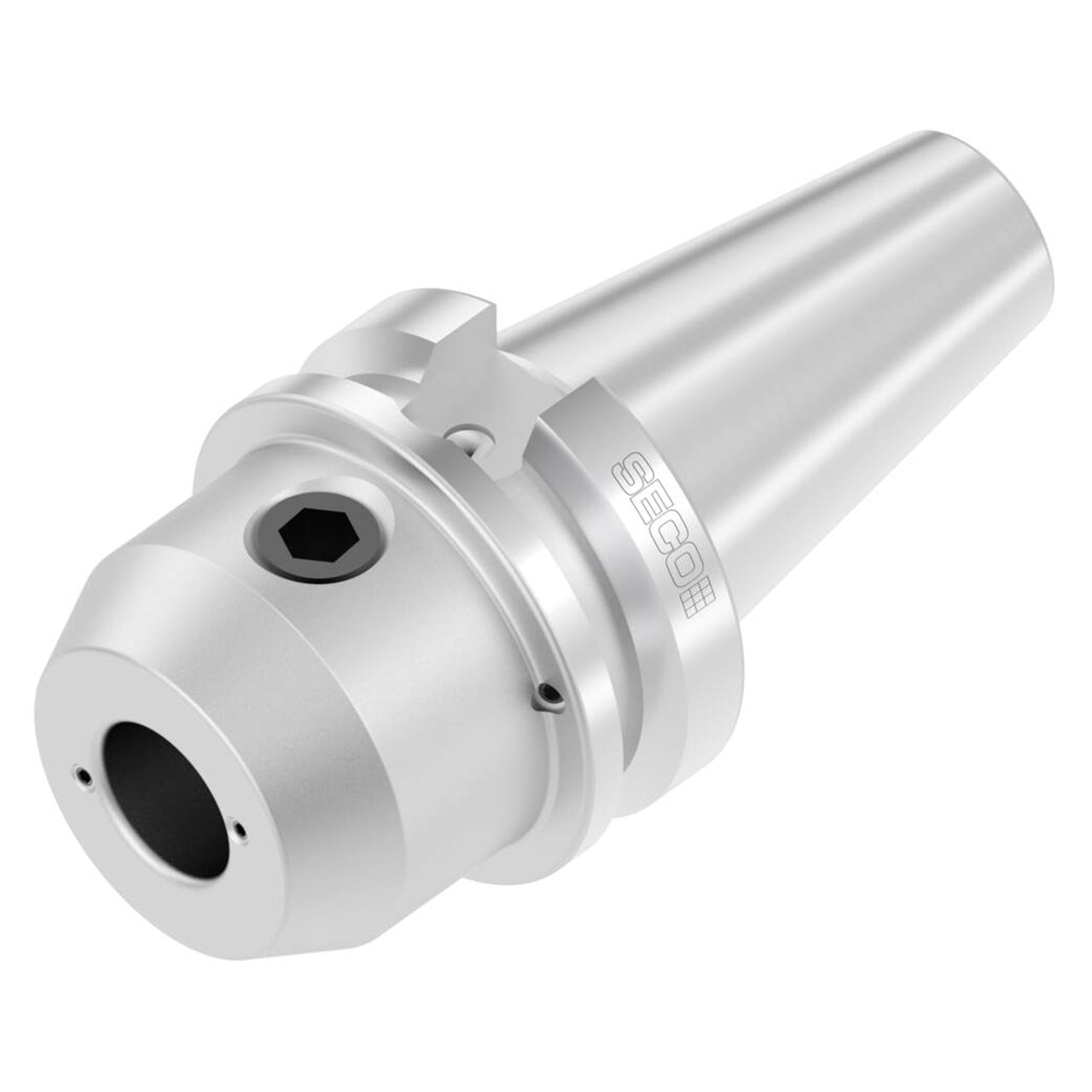

| Product Type | End Mill Holder |
