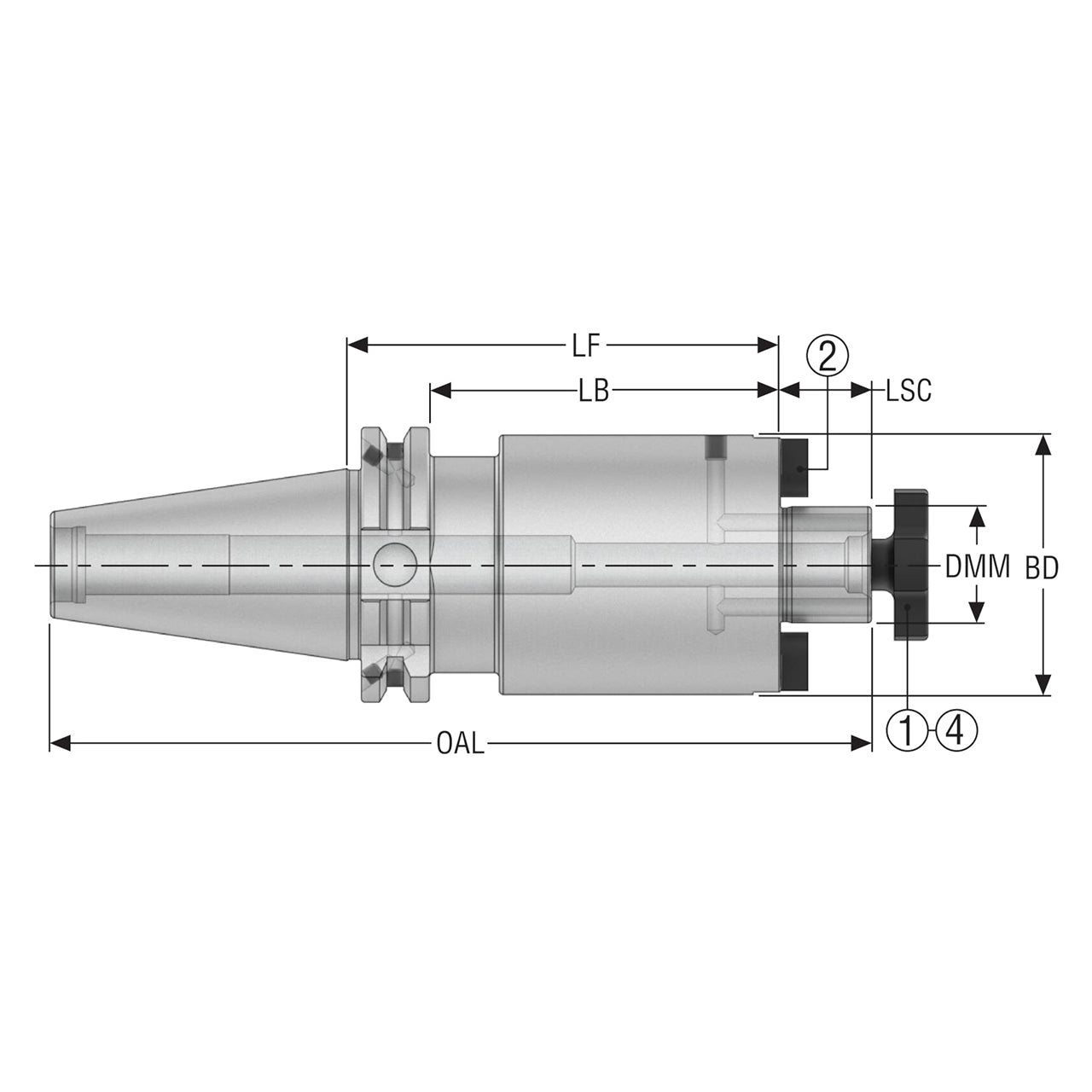

Product Specifications
| Manufacturer Part Number | 10007172 |
| Body Diameter (Decimal Inch) | 3.071" |
| Body Diameter (mm) | 78.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.260" |
| Connection Diameter Workpiece Side (mm) | 32.00mm |
| Shank Diameter (Decimal Inch) | 1.260" |
| Shank Diameter (mm) | 32.00mm |
| Body Length (Decimal Inch) | 1.217" |
| Body Length (mm) | 30.90mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Clamping Length (Decimal Inch) | 0.945" |
| Clamping Length (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 5.606" |
| Overall Length (mm) | 142.40mm |
| Data Chip Provision | 1 |

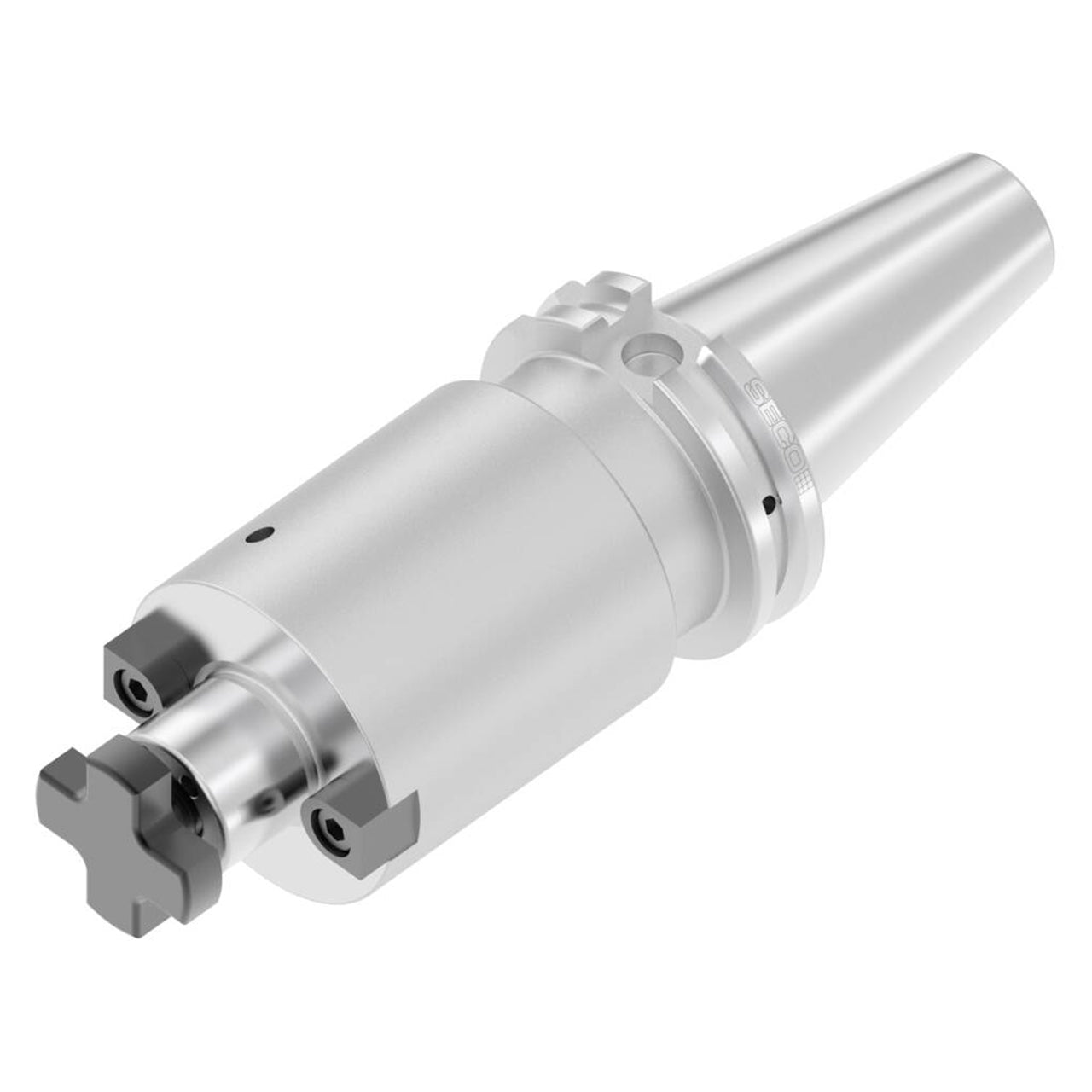

| Product Type | Shell Mill Holder |
