Product Specifications
| Manufacturer Part Number | 10005914 |
| Cutting Diameter (Decimal Inch) | 4.256" |
| Cutting Diameter (mm) | 108.10mm |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.539" |
| Contact Surface Diameter Machine Side (mm) | 89.90mm |
| Maximum Cutting Diameter (Decimal Inch) | 5.000" |
| Maximum Cutting Diameter (mm) | 127.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 9.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 252.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 9.256" |
| Minimum Helical Interpolation Hole Diameter (mm) | 235.10mm |
| Functional Length (Decimal Inch) | 2.500" |
| Functional Length (mm) | 63.50mm |
| Maximum Depth of Cut (mm) | 9.50mm |
| Maximum Depth of Cut (Decimal Inch) | 0.374" |
| Depth of Key Way (Decimal Inch) | 0.382" |
| Depth of Key Way (mm) | 9.70mm |
| Keyway Width (Decimal Inch) | 0.630" |
| Keyway Width (mm) | 16.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 3.76 Degree |
| Maximum Rotational Speed (rpm) | 4000 rpm |
| Insert Shape Code | R |
| Shank Type | Arbor |

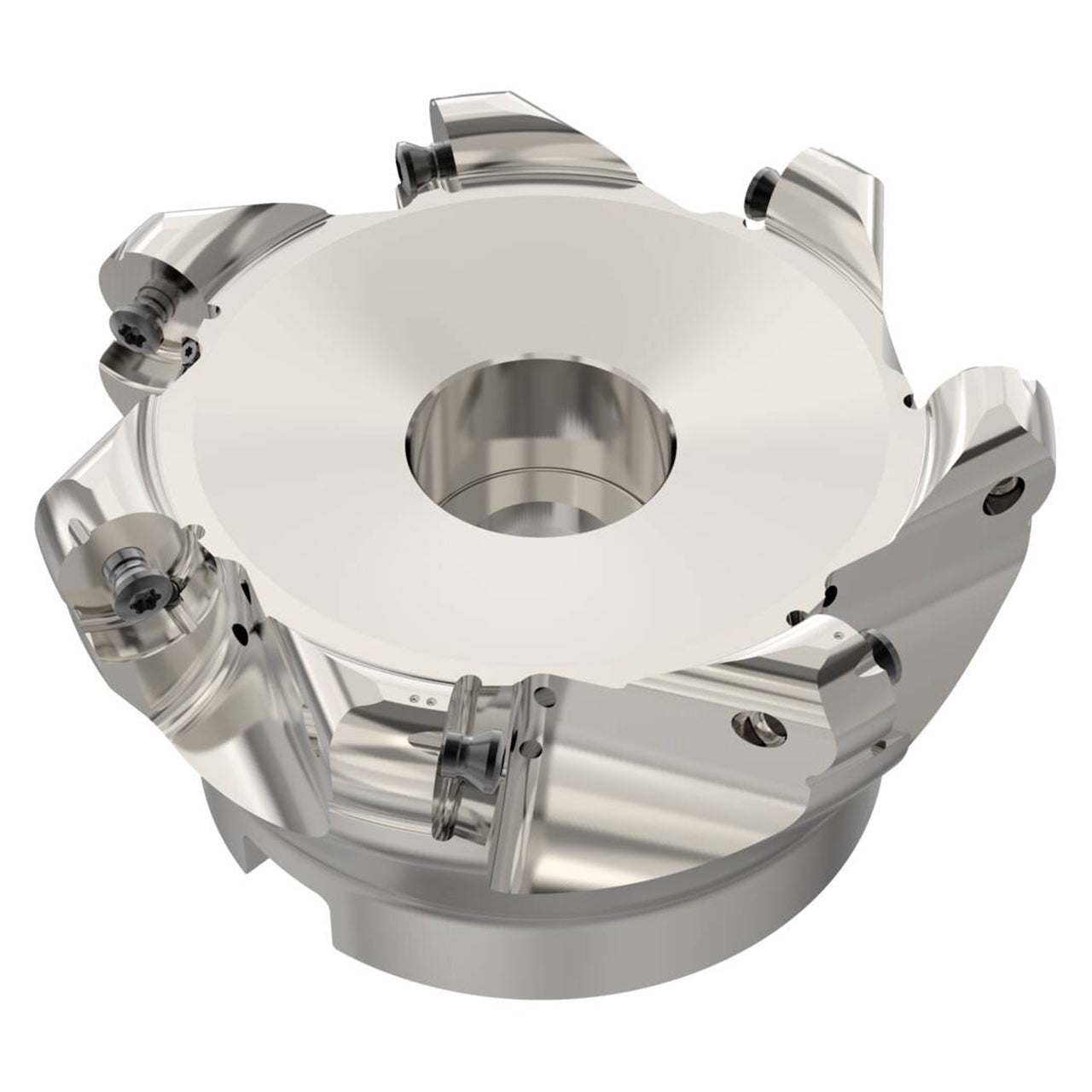

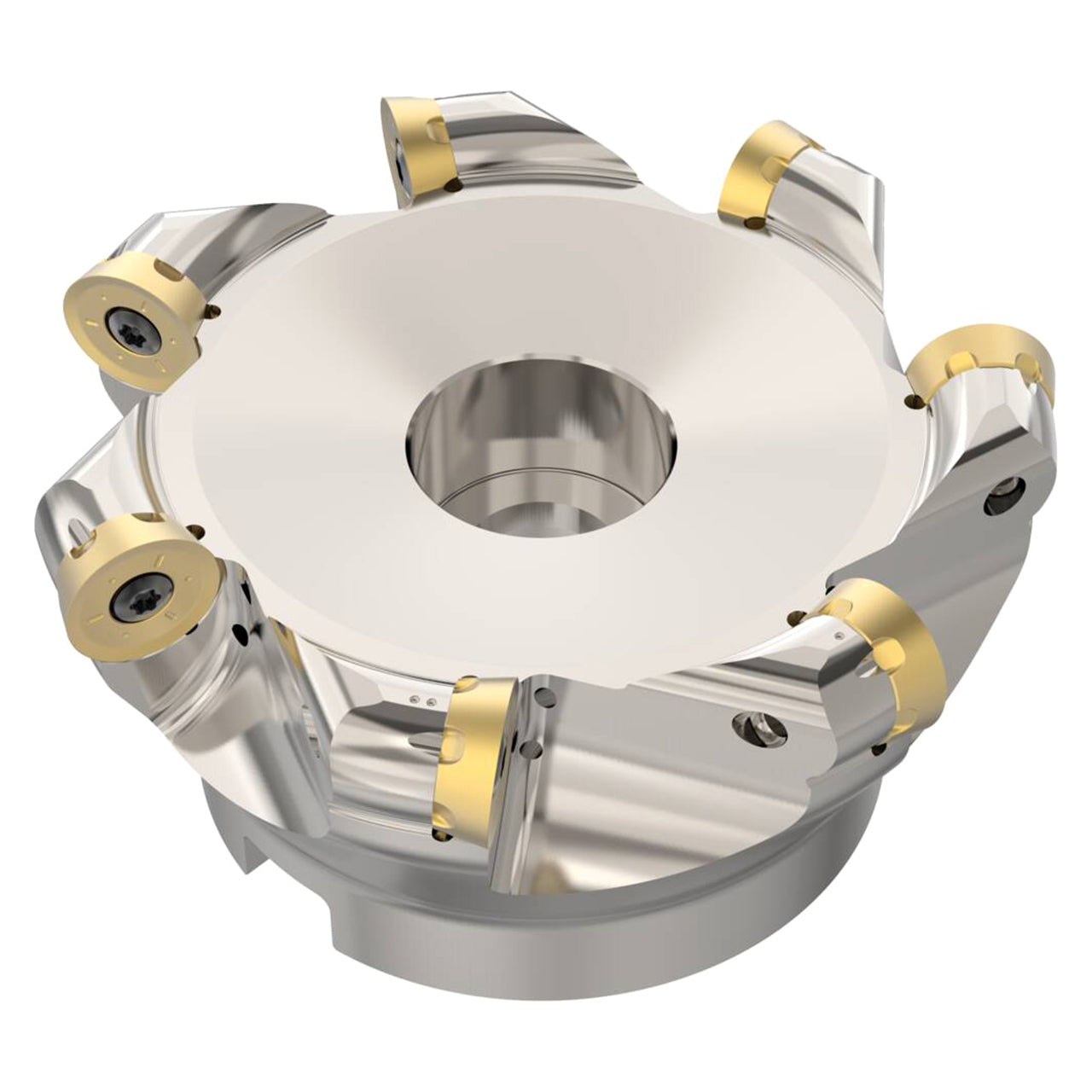

| Product Type | Indexable Copy End Mill |
