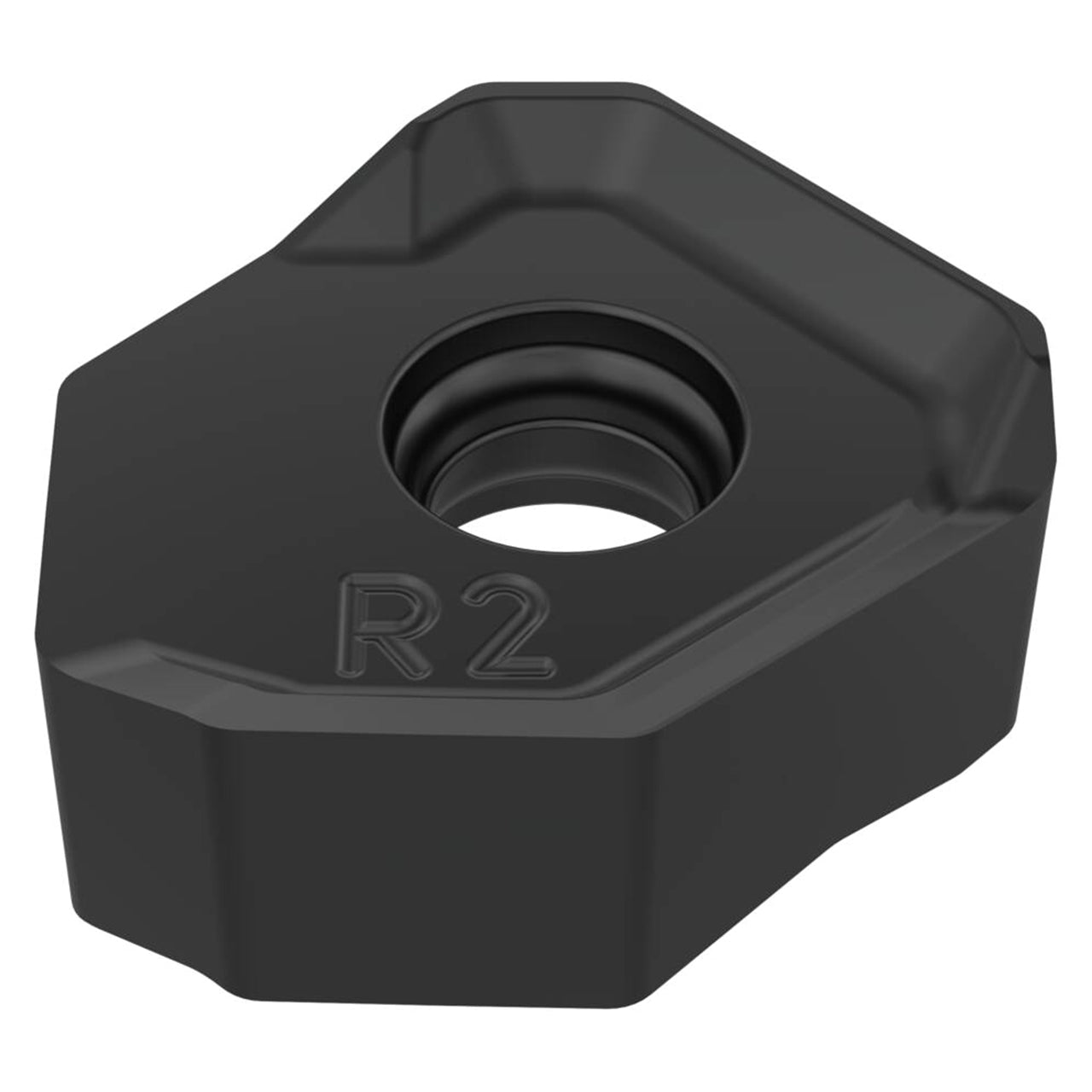

Product Specifications
| Manufacturer Part Number | 10005636 |
| Wiper Edge Length (Decimal Inch) | 0.224" |
| Cutting edge count | 2 |
| Cutting Geometry Type Technical | M16 |
| Insert size and shape | SNEX1407AZ |
| Grade Type | Carbide CVD |
| Inscribed Circle Diameter (Decimal Inch) | 0.550" |
| Insert Hand | Right Hand |
| Cutting Edge Effective Length (Decimal Inch) | 0.331" |
| Corner Radius (Decimal Inch) | 0.039" |
| Insert Thickness (Decimal Inch) | 0.261" |
| Product Series | SNEX |
| Product Type | Milling Insert |
