Product Specifications

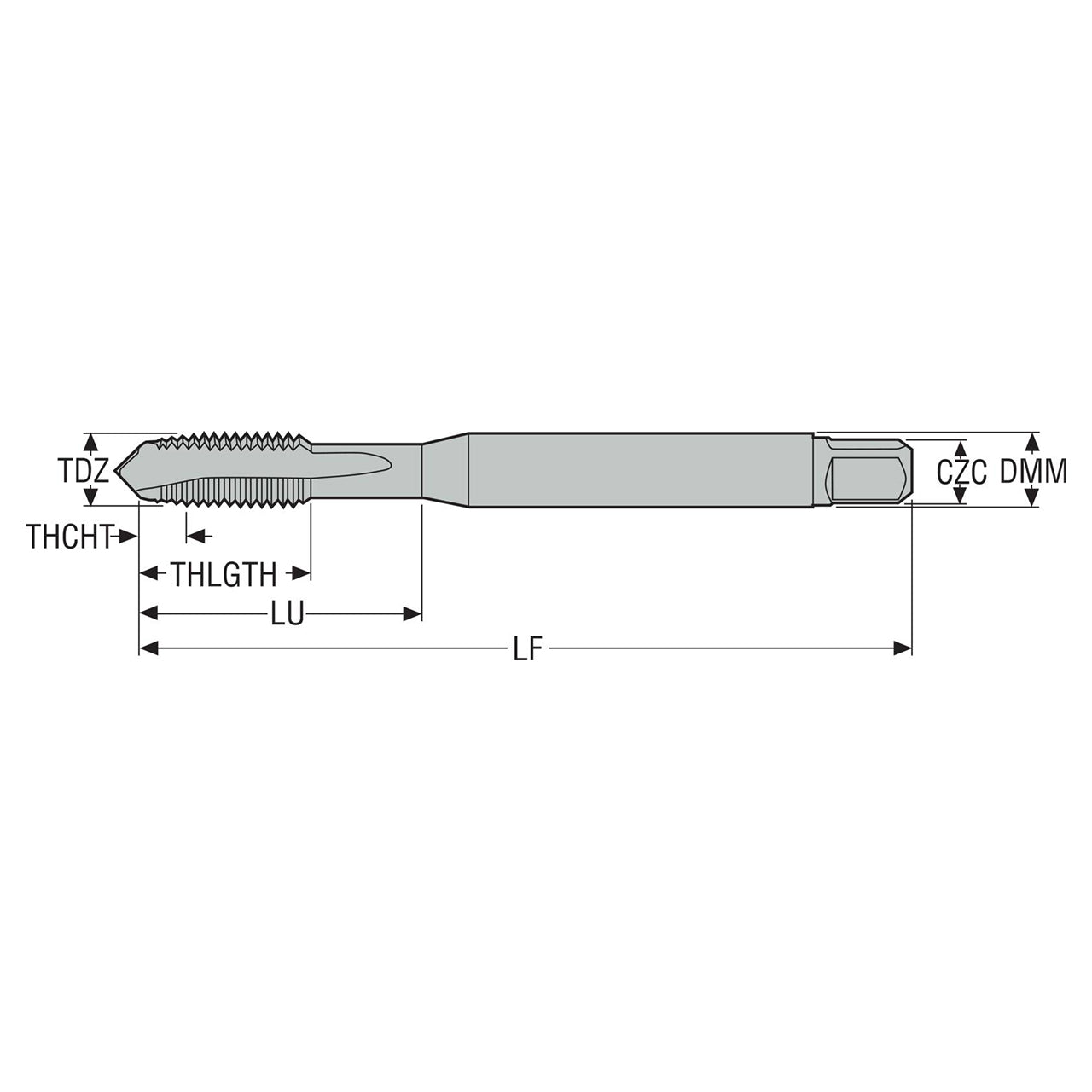

| Manufacturer Part Number | 10001216 |
| Thread Diameter (Decimal Inch) | 0.369" |
| Thread Diameter (mm) | 9.38mm |
| Threading Chamfer Length (Decimal Inch) | 0.187" |
| Threading Chamfer Length (mm) | 4.76mm |
| Tap Chamfer Length (Decimal Inch) | 0.187" |
| Tap Chamfer Length (mm) | 4.76mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 3.750" |
| Functional Length (mm) | 95.24mm |
| Usable Length (Decimal Inch) | 1.319" |
| Usable Length (mm) | 33.50mm |
| Overall Length (Decimal Inch) | 4.018" |
| Overall Length (mm) | 102.05mm |
| Thread Length (Decimal Inch) | 0.787" |
| Thread Length (mm) | 20.00mm |
| Thread Diameter Size | EGUNF5/16-24 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.323" |
| Recommended Premachined Hole Diameter (mm) | 8.20mm |
| Connection Size Code | 10.00X8.00 |
| Connection Size Code Machine Side | 10.00X8.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.329" |
| Maximum Premachined Hole Diameter (mm) | 8.35mm |
| Minimum Threads Per Inch (mm) | 24.00mm |
| Maximum Threads Per Inch (mm) | 24.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 3B |
| Threading Chamfer Type | B |
| Thread Form Type | EGUNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | Uncoated |

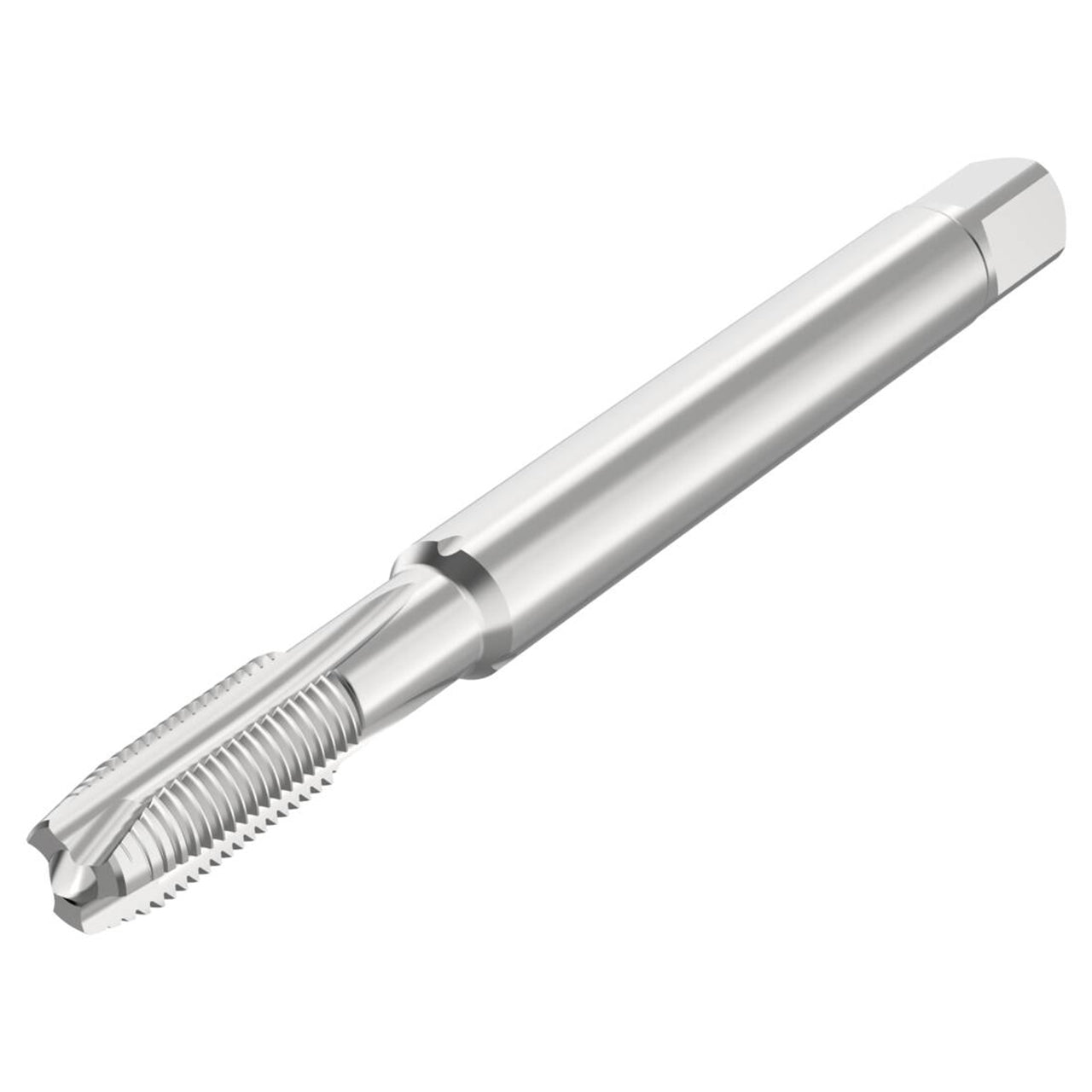

| Product Type | Spiral Point Tap |
