Product Specifications

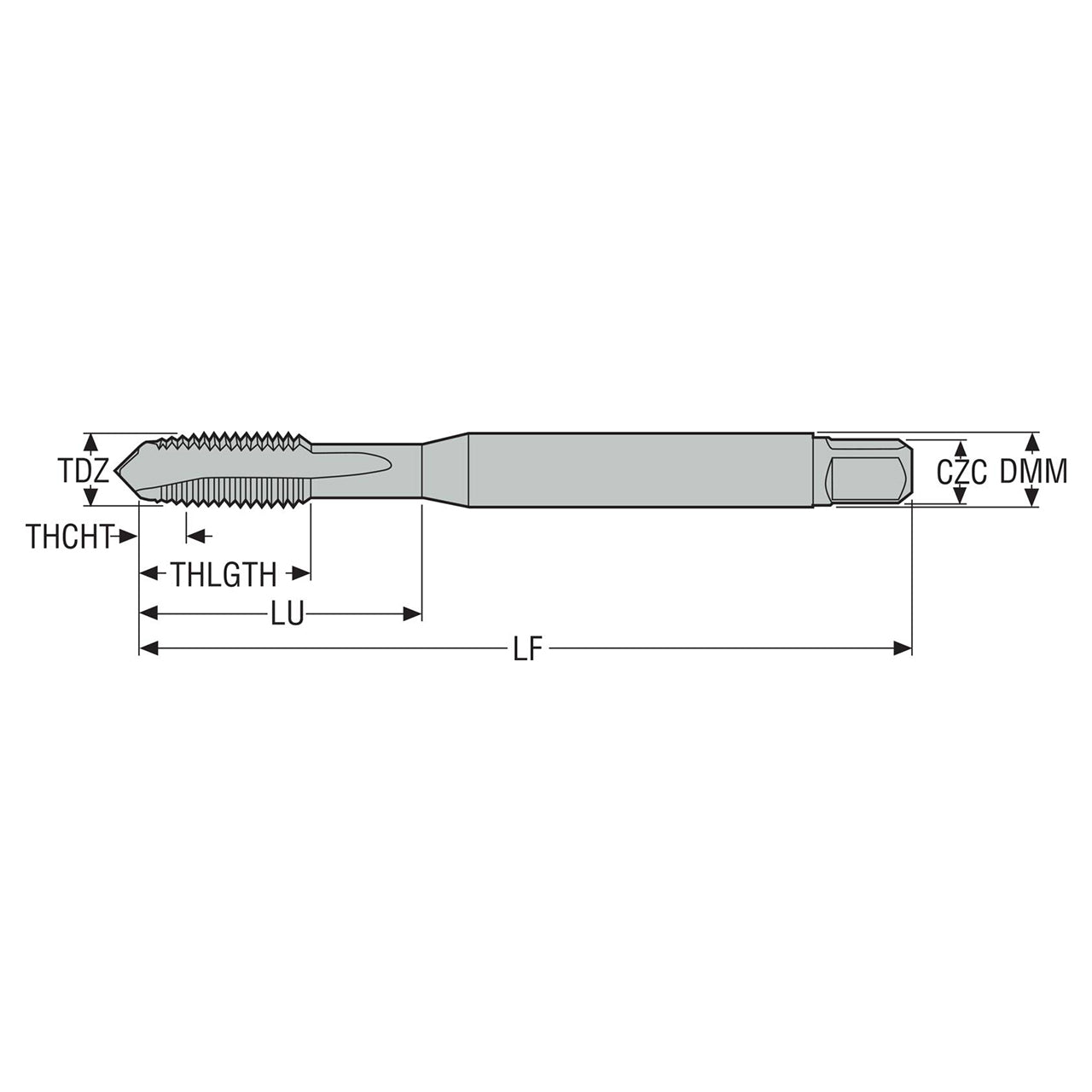

| Manufacturer Part Number | 10001186 |
| Thread Diameter (Decimal Inch) | 0.317" |
| Thread Diameter (mm) | 8.05mm |
| Threading Chamfer Length (Decimal Inch) | 0.187" |
| Threading Chamfer Length (mm) | 4.76mm |
| Tap Chamfer Length (Decimal Inch) | 0.187" |
| Tap Chamfer Length (mm) | 4.76mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Functional Length (Decimal Inch) | 3.356" |
| Functional Length (mm) | 85.24mm |
| Usable Length (Decimal Inch) | 1.161" |
| Usable Length (mm) | 29.50mm |
| Overall Length (Decimal Inch) | 3.604" |
| Overall Length (mm) | 91.55mm |
| Thread Length (Decimal Inch) | 0.709" |
| Thread Length (mm) | 18.00mm |
| Thread Diameter Size | UNJF5/16-24 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.276" |
| Recommended Premachined Hole Diameter (mm) | 7.00mm |
| Connection Size Code | 8.00X6.20 |
| Connection Size Code Machine Side | 8.00X6.20 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.280" |
| Maximum Premachined Hole Diameter (mm) | 7.11mm |
| Minimum Threads Per Inch (mm) | 24.00mm |
| Maximum Threads Per Inch (mm) | 24.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 3B |
| Threading Chamfer Type | B |
| Thread Form Type | UNJF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | ACN |

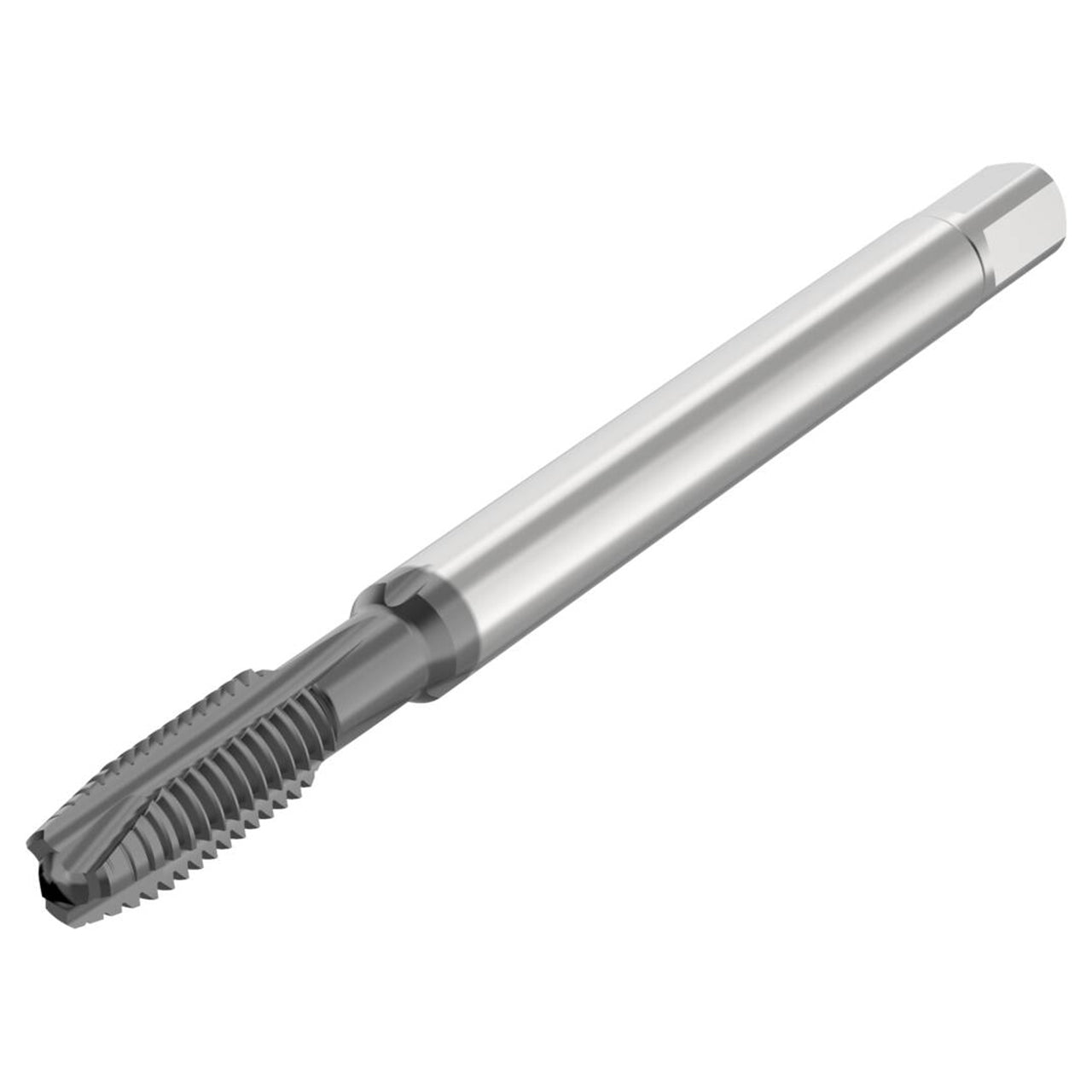

| Product Type | Spiral Point Tap |
