Product Specifications

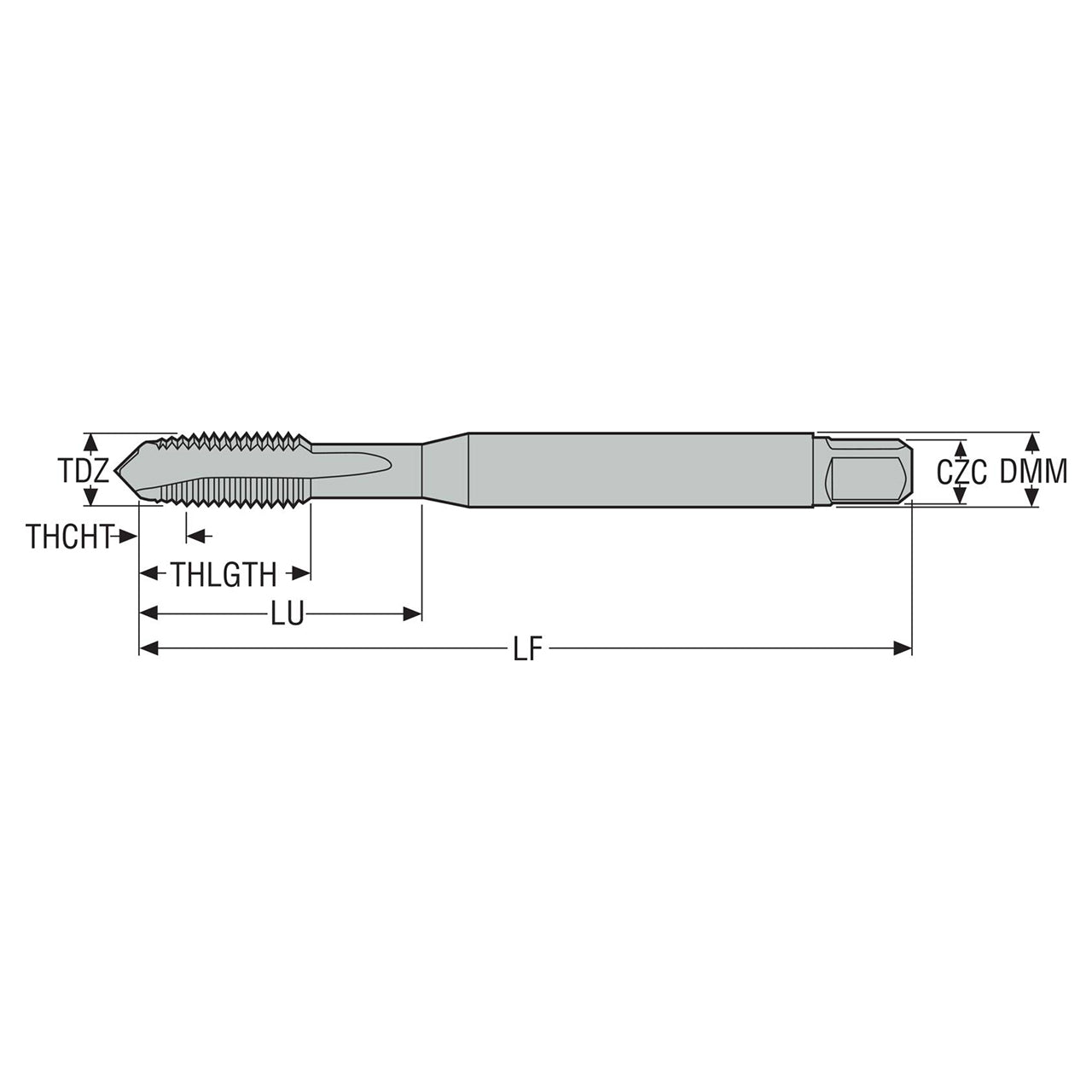

| Manufacturer Part Number | 10001174 |
| Thread Diameter (Decimal Inch) | 0.241" |
| Thread Diameter (mm) | 6.13mm |
| Threading Chamfer Length (Decimal Inch) | 0.177" |
| Threading Chamfer Length (mm) | 4.50mm |
| Tap Chamfer Length (Decimal Inch) | 0.177" |
| Tap Chamfer Length (mm) | 4.50mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.972" |
| Functional Length (mm) | 75.50mm |
| Usable Length (Decimal Inch) | 0.906" |
| Usable Length (mm) | 23.00mm |
| Overall Length (Decimal Inch) | 3.205" |
| Overall Length (mm) | 81.40mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | MJ6X1 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.201" |
| Recommended Premachined Hole Diameter (mm) | 5.10mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.205" |
| Maximum Premachined Hole Diameter (mm) | 5.22mm |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Minimum Thread Pitch (mm) | 1.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (mm) | 1.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 4H |
| Threading Chamfer Type | B |
| Thread Form Type | MJ |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | ACN |

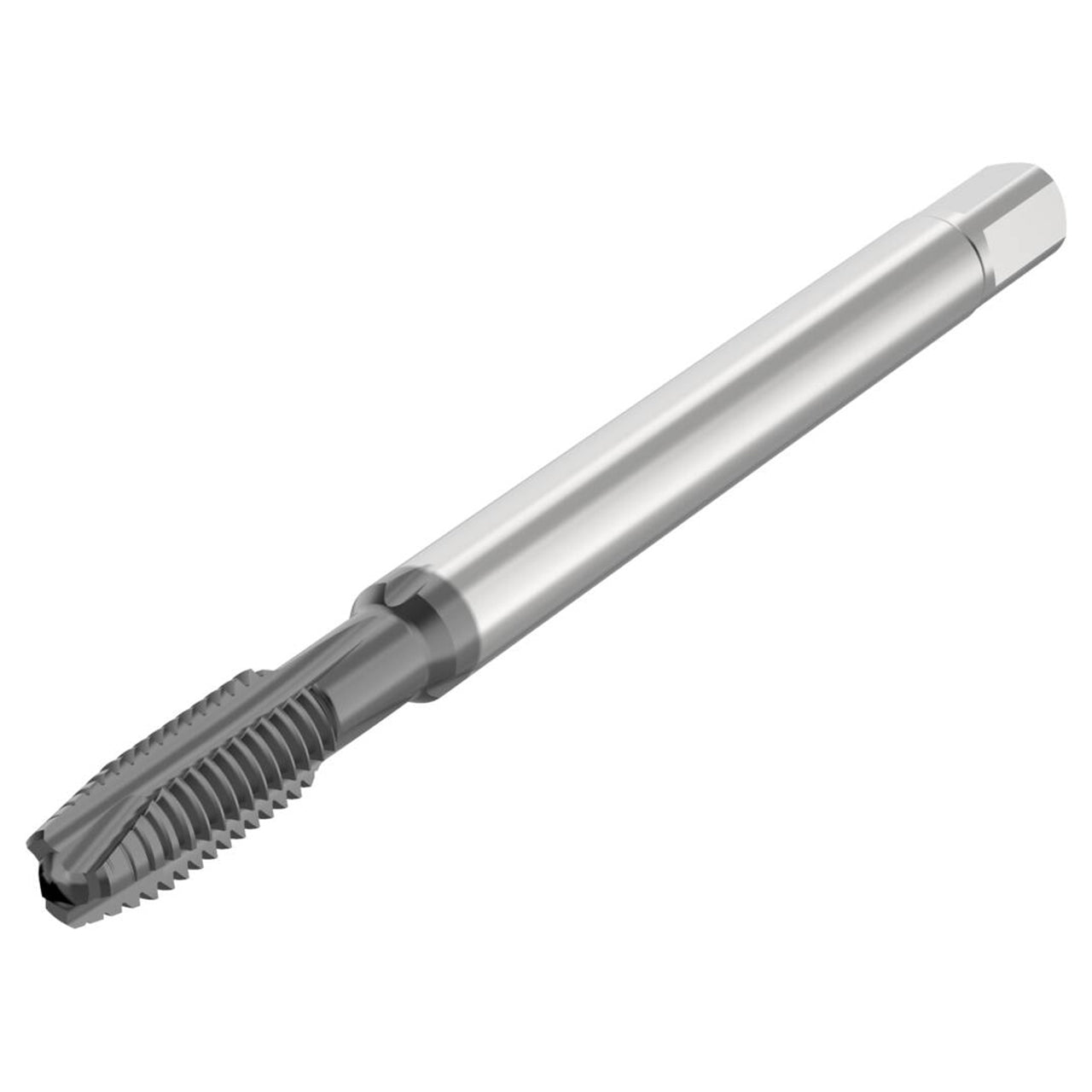

| Product Type | Spiral Point Tap |
