Product Specifications
| Manufacturer Part Number | 10001134 |
| Thread Diameter (Decimal Inch) | 0.082" |
| Thread Diameter (mm) | 2.07mm |
| Threading Chamfer Length (Decimal Inch) | 0.039" |
| Threading Chamfer Length (mm) | 1.00mm |
| Tap Chamfer Length (Decimal Inch) | 0.039" |
| Connection Diameter Machine Side (Decimal Inch) | 0.110" |
| Connection Diameter Machine Side (mm) | 2.80mm |
| Shank Diameter (Decimal Inch) | 0.110" |
| Shank Diameter (mm) | 2.80mm |
| Functional Length (Decimal Inch) | 1.732" |
| Functional Length (mm) | 44.00mm |
| Usable Length (Decimal Inch) | 0.315" |
| Usable Length (mm) | 8.00mm |
| Overall Length (Decimal Inch) | 1.856" |
| Overall Length (mm) | 47.14mm |
| Thread Length (Decimal Inch) | 0.315" |
| Thread Length (mm) | 8.00mm |
| Thread Diameter Size | M2 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.063" |
| Recommended Premachined Hole Diameter (mm) | 1.60mm |
| Connection Size Code | 2.80X2.10 |
| Connection Size Code Machine Side | 2.80X2.10 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.066" |
| Maximum Premachined Hole Diameter (mm) | 1.68mm |
| Minimum Thread Pitch (Decimal Inch) | 0.016" |
| Minimum Thread Pitch (mm) | 0.40mm |
| Maximum Thread Pitch (Decimal Inch) | 0.016" |
| Maximum Thread Pitch (mm) | 0.40mm |
| Flute Helix Angle (Degree) | 15 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | ACN |

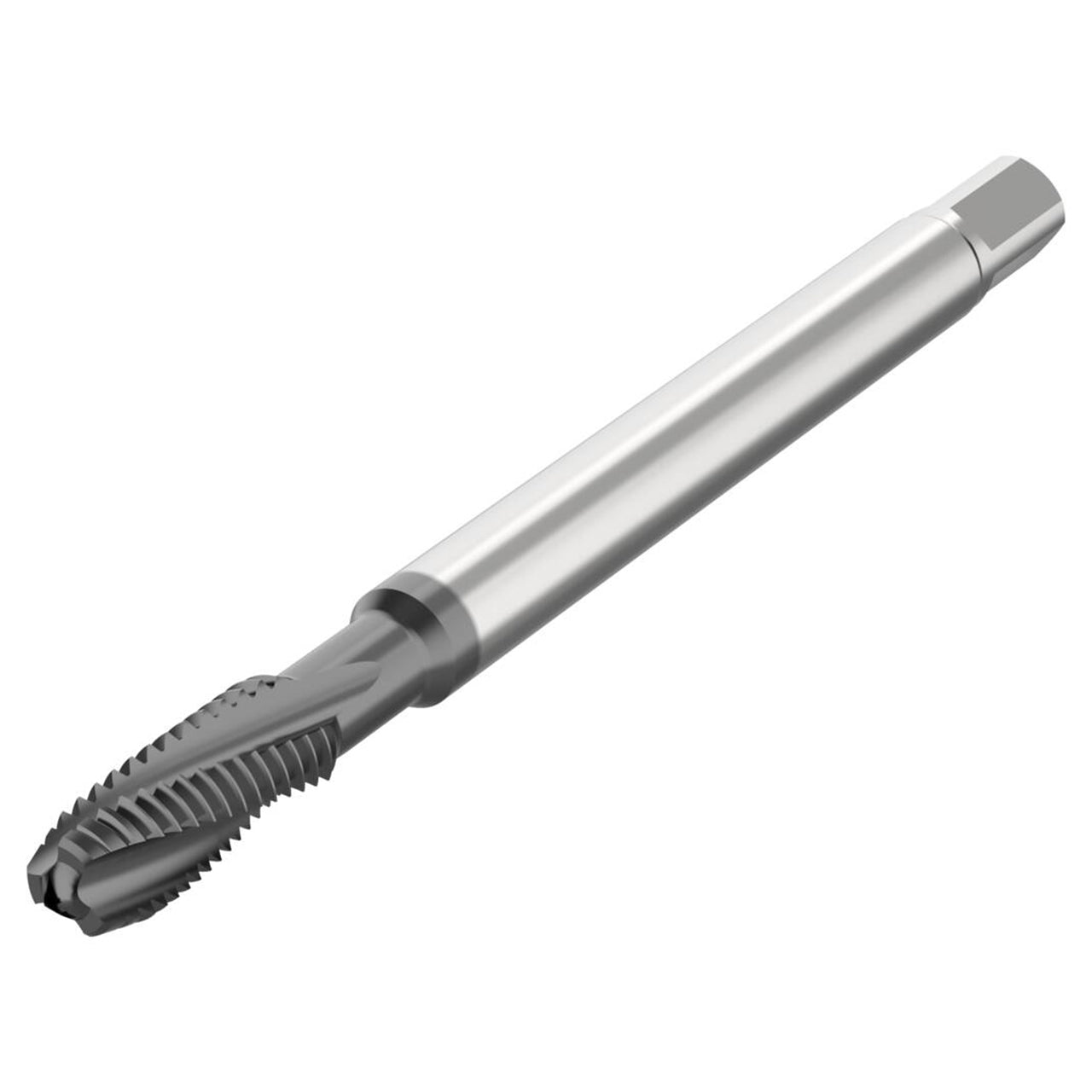

| Product Type | Spiral Flute Tap |
