Product Specifications

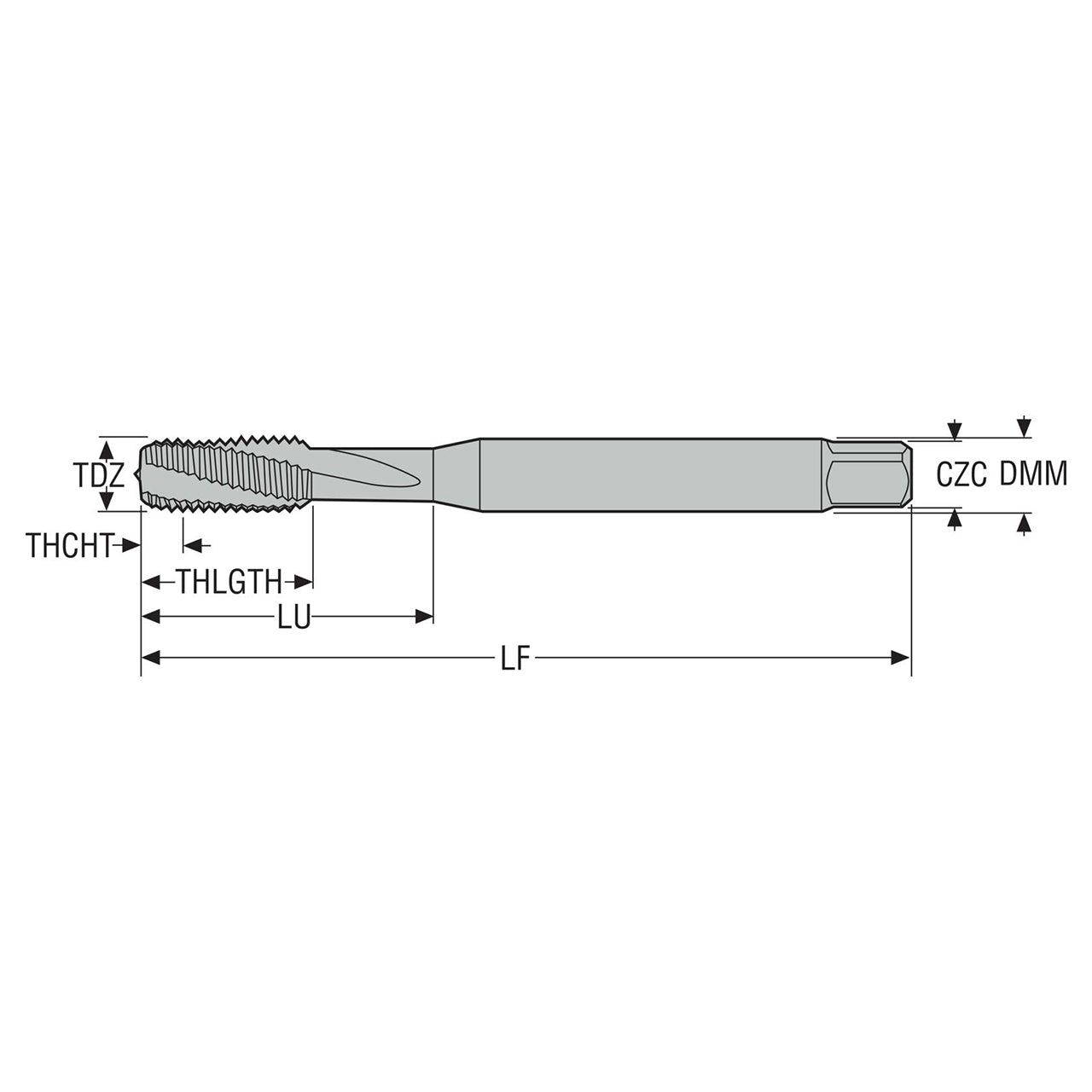

| Manufacturer Part Number | 10001113 |
| Thread Diameter (Decimal Inch) | 0.088" |
| Thread Diameter (mm) | 2.24mm |
| Threading Chamfer Length (Decimal Inch) | 0.045" |
| Threading Chamfer Length (mm) | 1.13mm |
| Tap Chamfer Length (Decimal Inch) | 0.045" |
| Tap Chamfer Length (mm) | 1.13mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.110" |
| Connection Diameter Machine Side (mm) | 2.80mm |
| Shank Diameter (Decimal Inch) | 0.110" |
| Shank Diameter (mm) | 2.80mm |
| Functional Length (Decimal Inch) | 1.727" |
| Functional Length (mm) | 43.87mm |
| Usable Length (Decimal Inch) | 0.354" |
| Usable Length (mm) | 9.00mm |
| Overall Length (Decimal Inch) | 1.859" |
| Overall Length (mm) | 47.21mm |
| Thread Length (Decimal Inch) | 0.354" |
| Thread Length (mm) | 9.00mm |
| Thread Diameter Size | UNC2-56 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.073" |
| Recommended Premachined Hole Diameter (mm) | 1.85mm |
| Connection Size Code | 2.80X2.10 |
| Connection Size Code Machine Side | 2.80X2.10 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.074" |
| Maximum Premachined Hole Diameter (mm) | 1.87mm |
| Minimum Threads Per Inch (mm) | 56.00mm |
| Maximum Threads Per Inch (mm) | 56.00mm |
| Flute Helix Angle (Degree) | 25 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | Uncoated |

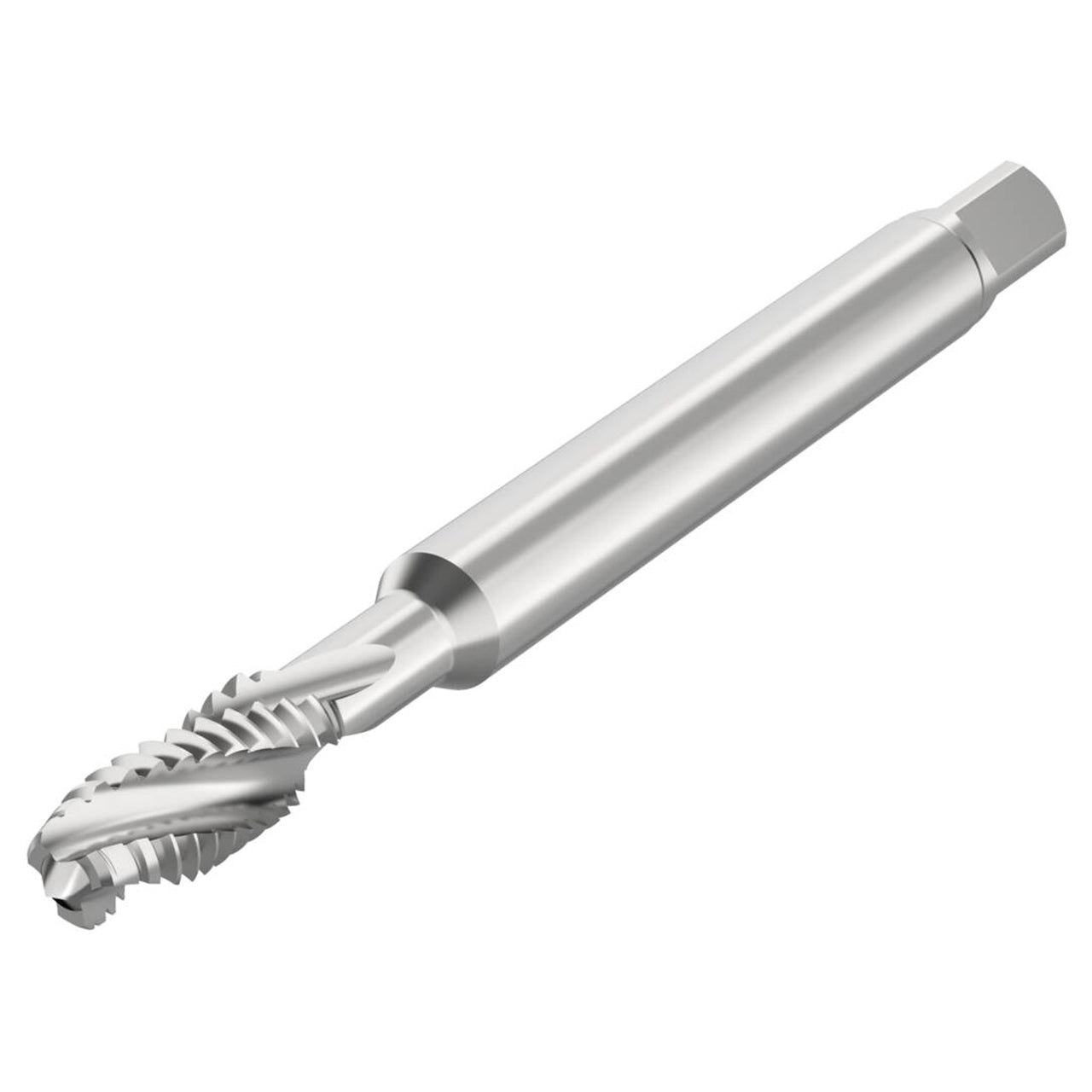

| Product Type | Spiral Flute Tap |
