Product Specifications
| Manufacturer Part Number | 03336151 |
| Cutting Diameter (Decimal Inch) | 5.000" |
| Cutting Diameter (mm) | 127.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.543" |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 9.882" |
| Maximum Helical Interpolation Hole Diameter (mm) | 251.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 9.370" |
| Minimum Helical Interpolation Hole Diameter (mm) | 238.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Depth of Key Way (Decimal Inch) | 0.382" |
| Depth of Key Way (mm) | 9.70mm |
| Keyway Width (Decimal Inch) | 0.630" |
| Keyway Width (mm) | 16.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3.85 Degree |
| Rake Radial Angle (Degree) | -3.85 Degree |
| Rake Orthogonal Angle (Degree) | -3.85 Degree |
| Axial Rake Angle (Degree) | 9 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.85 Degree |
| Maximum Rotational Speed (rpm) | 7400 rpm |
| Shank Type | Arbor |

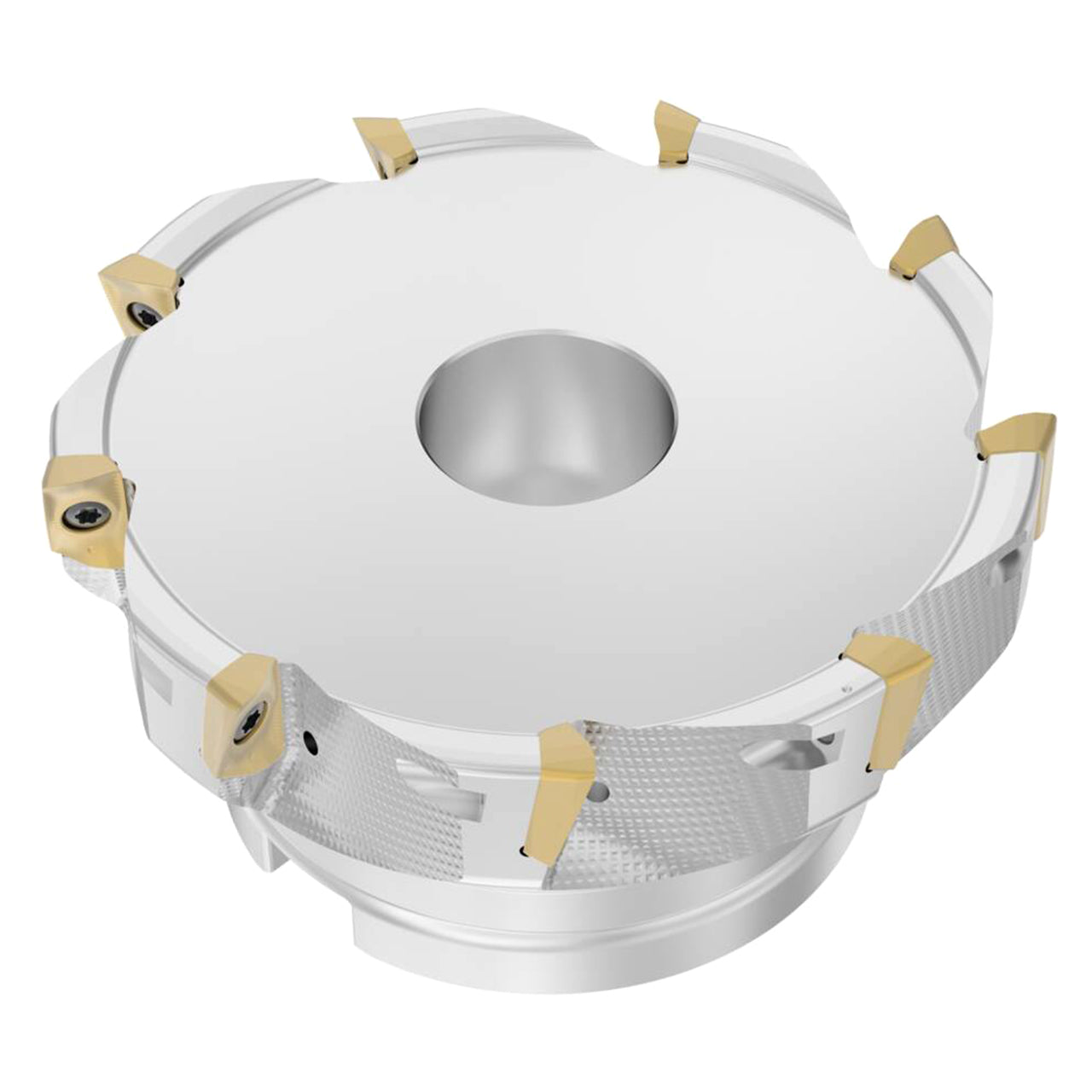

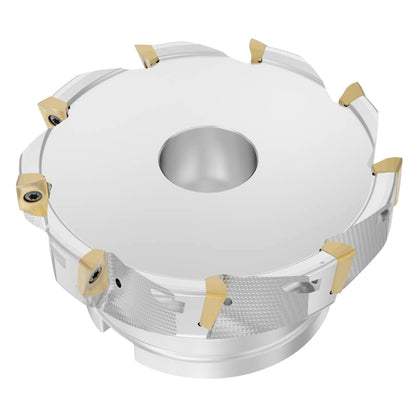

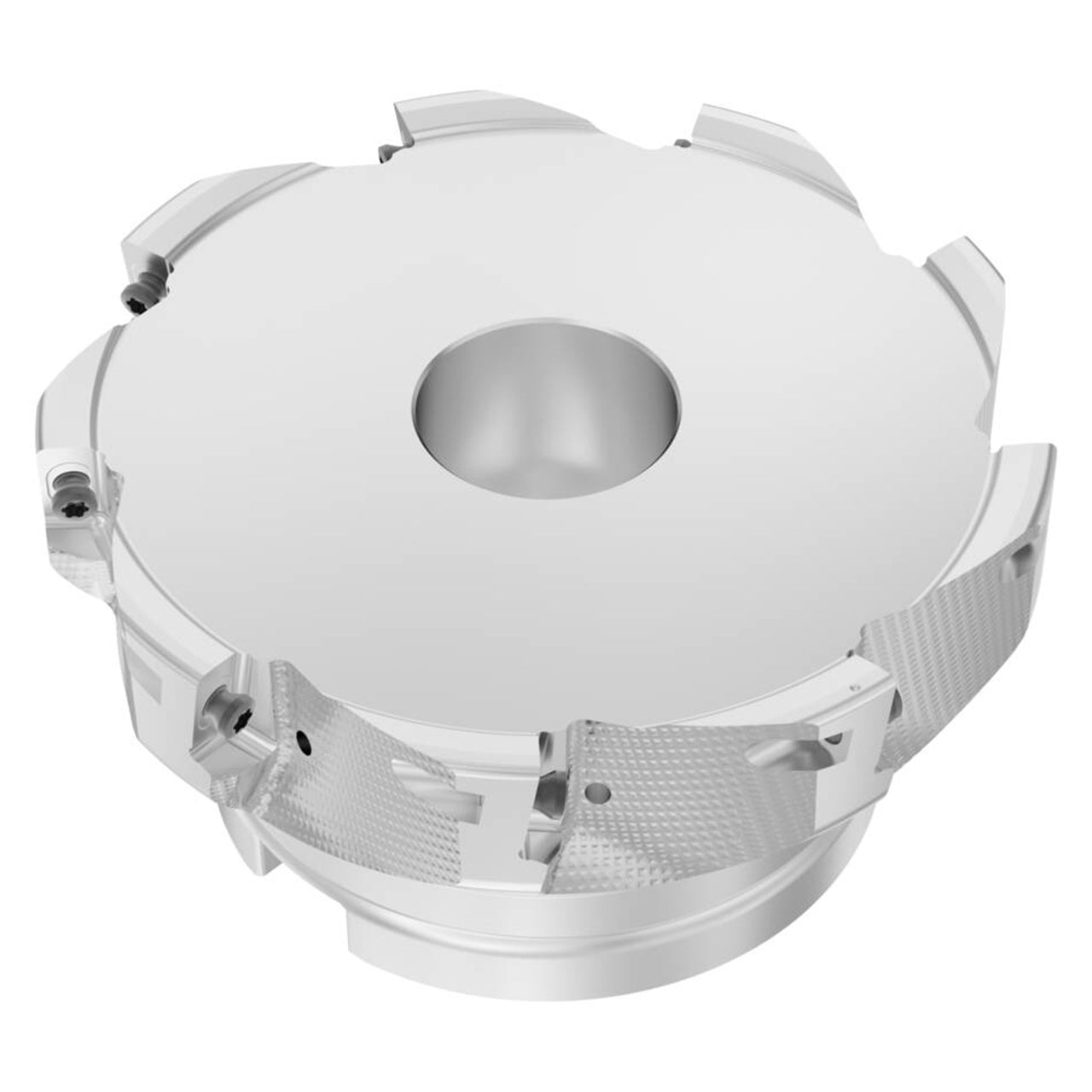

| Product Type | Indexable Square-Shoulder Face Mill |
