Product Specifications
| Manufacturer Part Number | 03336095 |
| Cutting Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Shank Diameter (mm) | 20.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 47.70mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 33.50mm |
| Protruding Length (mm) | 50.00mm |
| Shank Length (mm) | 50.00mm |
| Overall Length (mm) | 100.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -11 Degree |
| Rake Radial Angle (Degree) | -11 Degree |
| Rake Orthogonal Angle (Degree) | -11 Degree |
| Axial Rake Angle (Degree) | 3 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 11 Degree |
| Maximum Rotational Speed (rpm) | 16700 rpm |
| Shank Type | SecoWeldon |

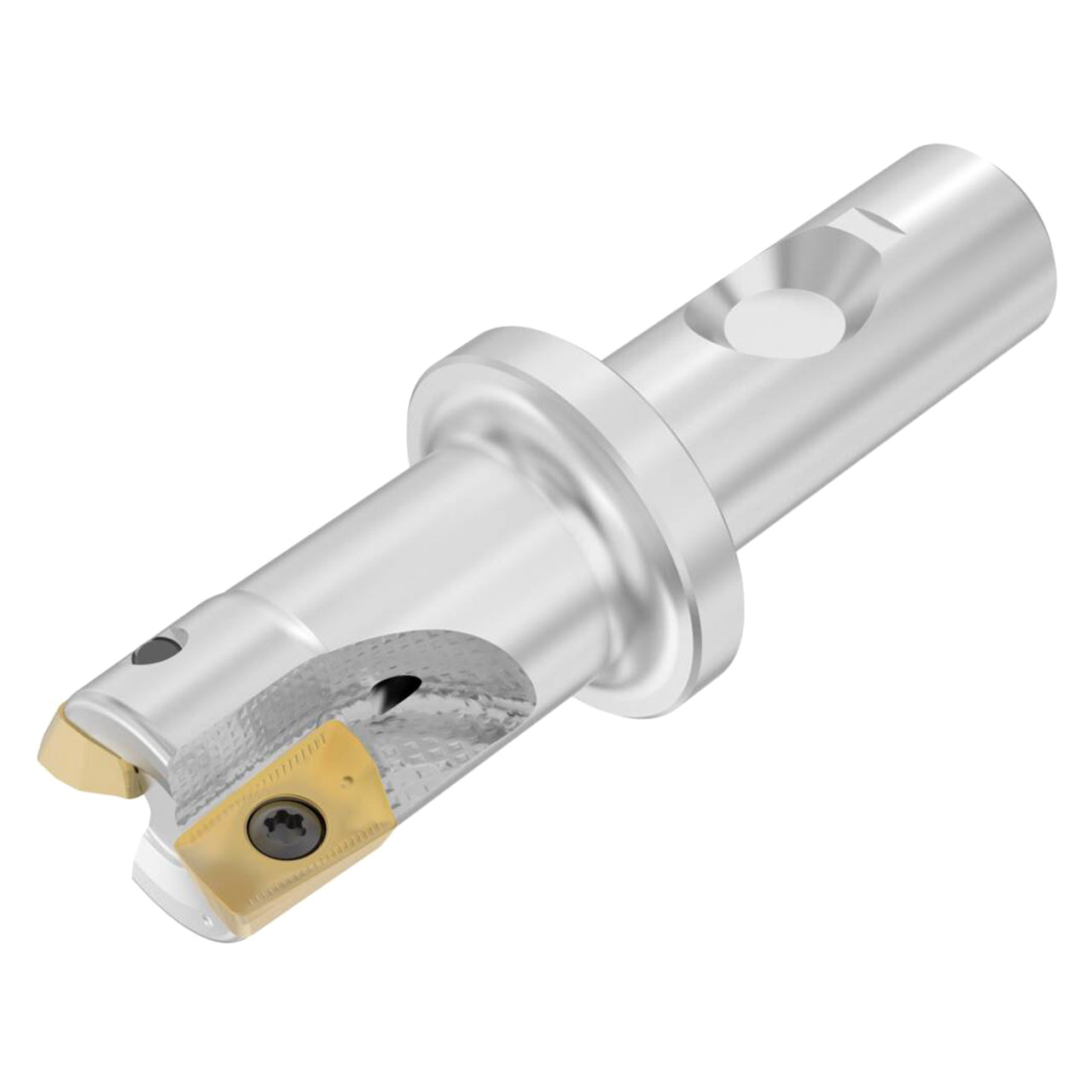

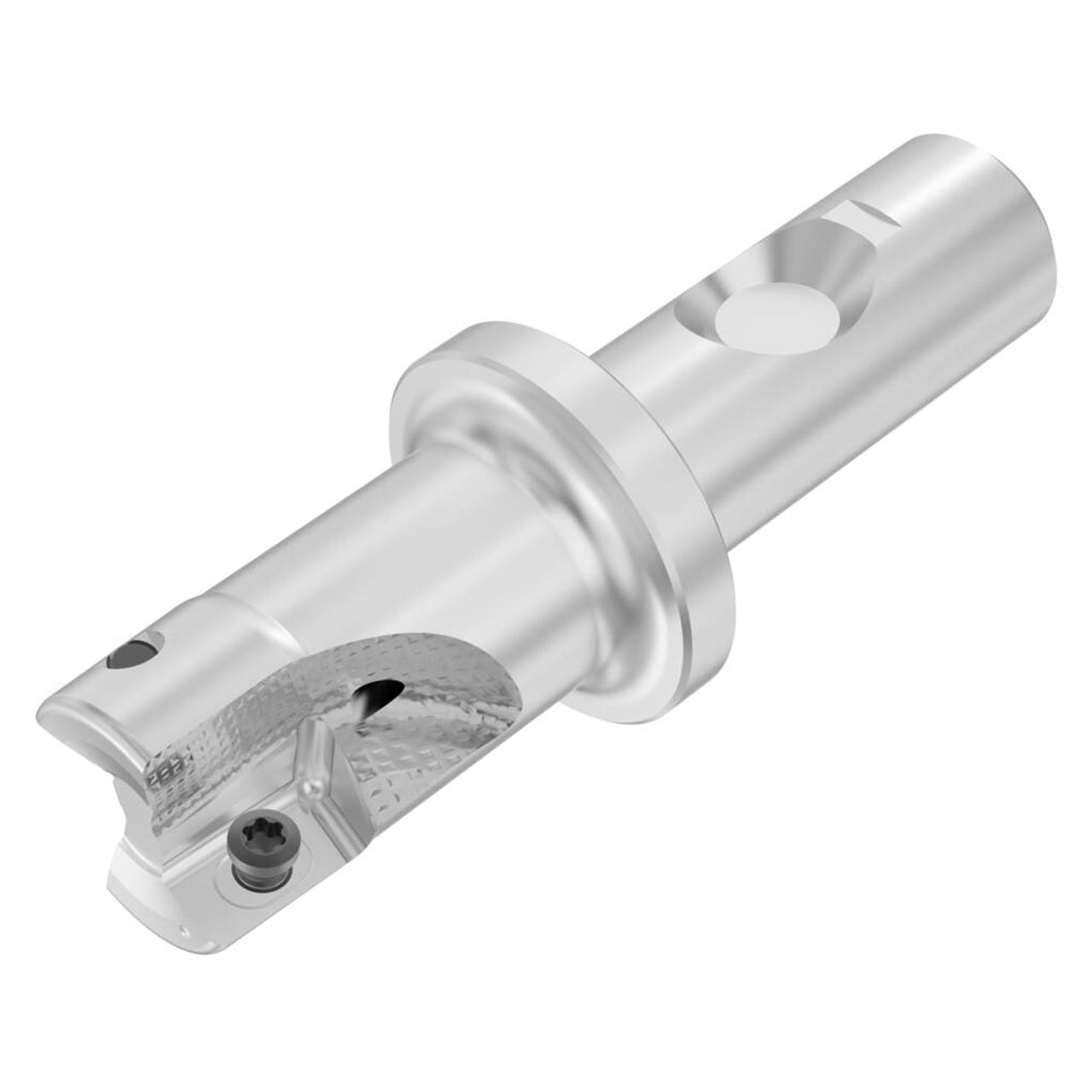

| Product Type | Indexable Square-Shoulder End Mill |
