Product Specifications
| Manufacturer Part Number | 03331433 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.945" |
| Maximum Cutting Depth (mm) | 24.00mm |
| Cutting Width (Decimal Inch) | 0.315" |
| Cutting Width (mm) | 8.00mm |
| Functional Length (Decimal Inch) | 3.543" |
| Functional Length (mm) | 90.00mm |
| Functional Width (Decimal Inch) | 1.299" |
| Functional Width (mm) | 33.00mm |
| Torque (Nm) | 15Nm |
| Workpiece Side Body Angle (Degree) | 45 Degree |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Data Chip Provision | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Shank Type | Seco-Capto |
| Version (Internal/External/Both) | External |

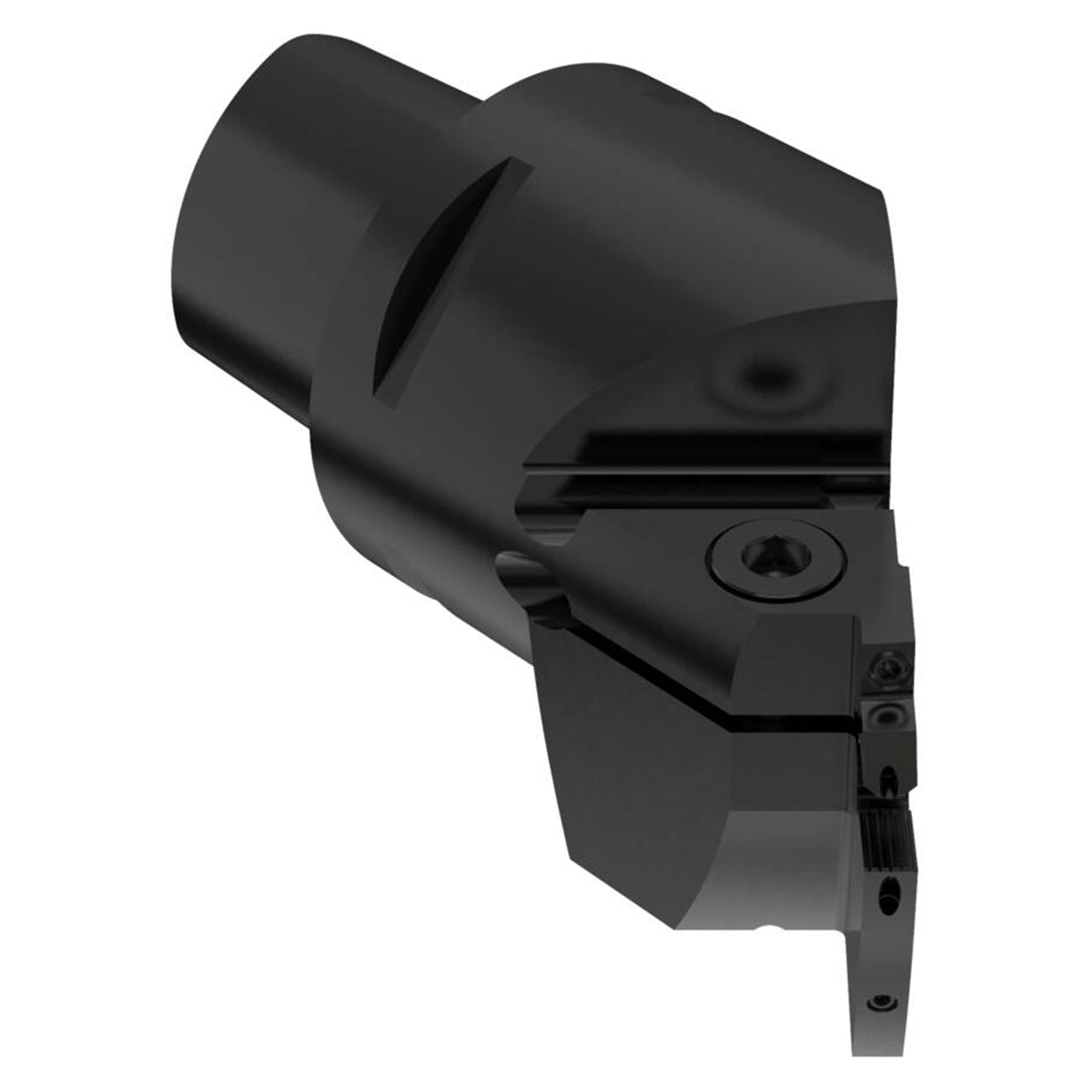

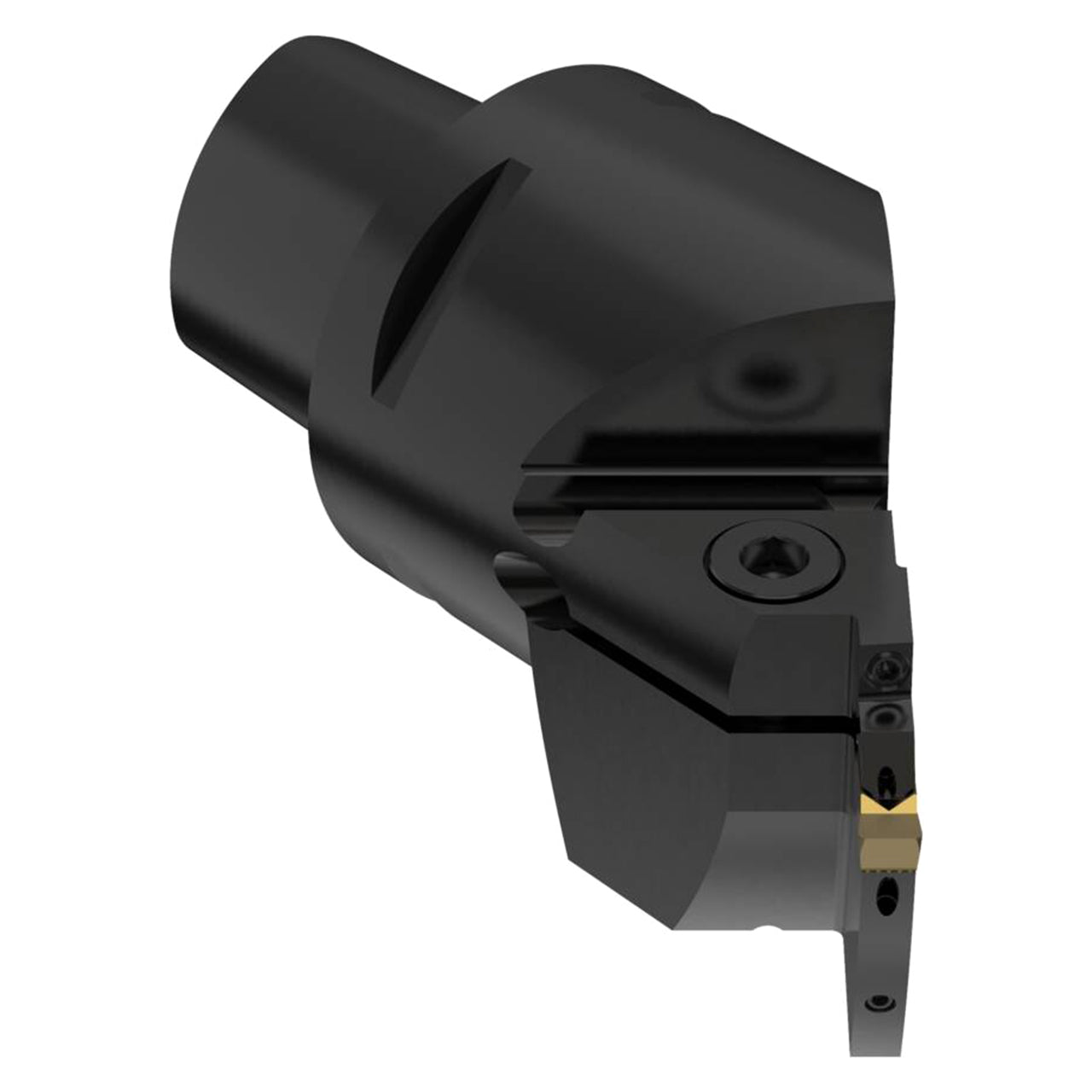

| Product Type | Modular Grooving Head |
