Product Specifications
| Manufacturer Part Number | 03329402 |
| Cutting Diameter (Decimal Inch) | 0.945" |
| Cutting Diameter (mm) | 24.00mm |
| Body Diameter (Decimal Inch) | 0.766" |
| Body Diameter (mm) | 19.45mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.728" |
| Contact Surface Diameter Machine Side (mm) | 18.50mm |
| Thread Diameter Size | M10 |
| Body Length (Decimal Inch) | 0.197" |
| Body Length (mm) | 5.00mm |
| Functional Length (Decimal Inch) | 0.787" |
| Functional Length (mm) | 20.00mm |
| Maximum Depth of Cut (mm) | 2.65mm |
| Maximum Depth of Cut (Decimal Inch) | 0.104" |
| Maximum Cutting Depth (Decimal Inch) | 0.087" |
| Maximum Cutting Depth (mm) | 2.20mm |
| Connection Mounting Torque (Nm) | 40.0 Nm |
| Cutting Width (Decimal Inch) | 0.104" |
| Cutting Width (mm) | 2.65mm |
| Minimum Cutting Width (Decimal Inch) | 0.043" |
| Minimum Cutting Width (mm) | 1.10mm |
| Maximum Cutting Width (Decimal Inch) | 0.104" |
| Maximum Cutting Width (mm) | 2.65mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -9 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Axial Rake Angle (Degree) | -1 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 28200 rpm |
| Shank Type | Combimaster |

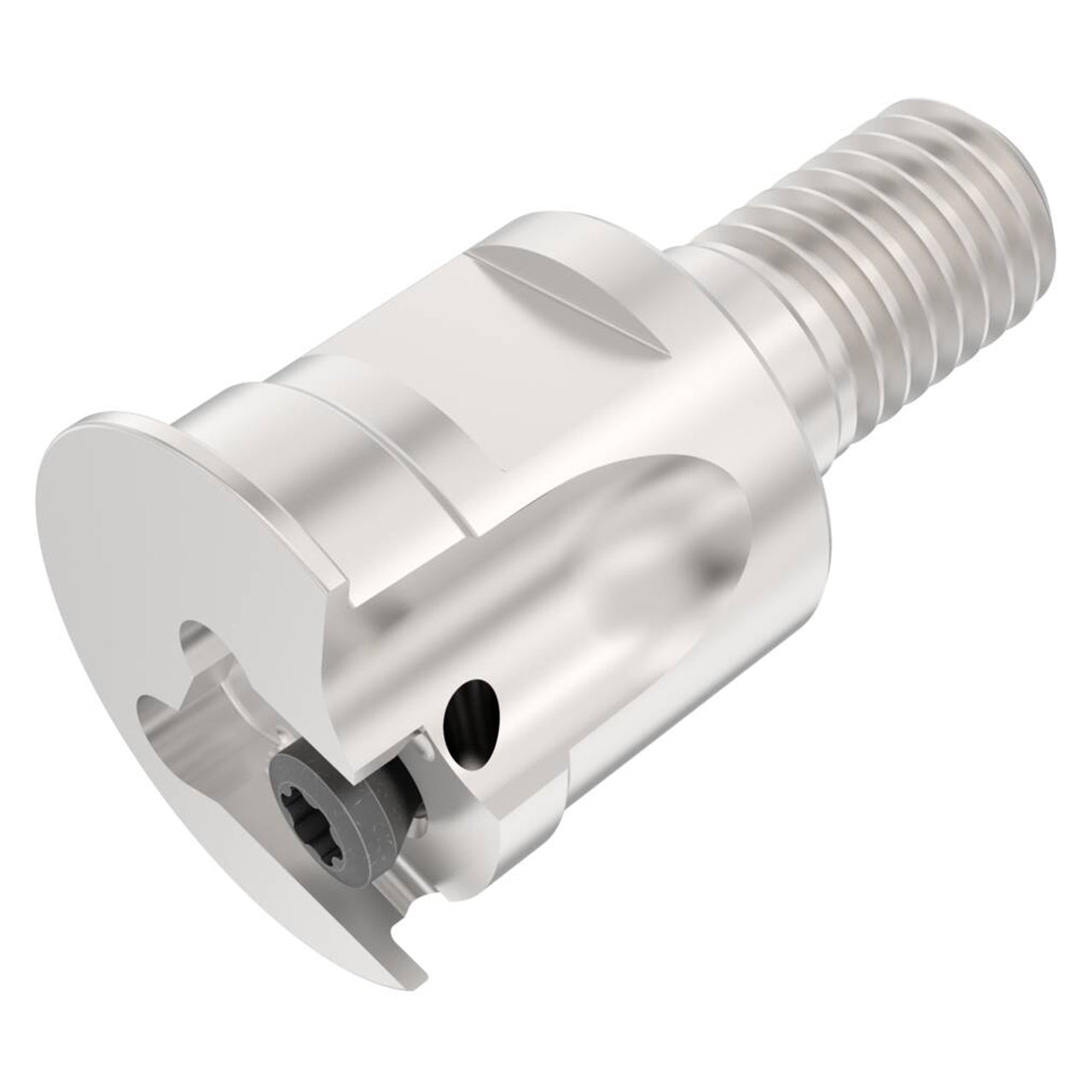

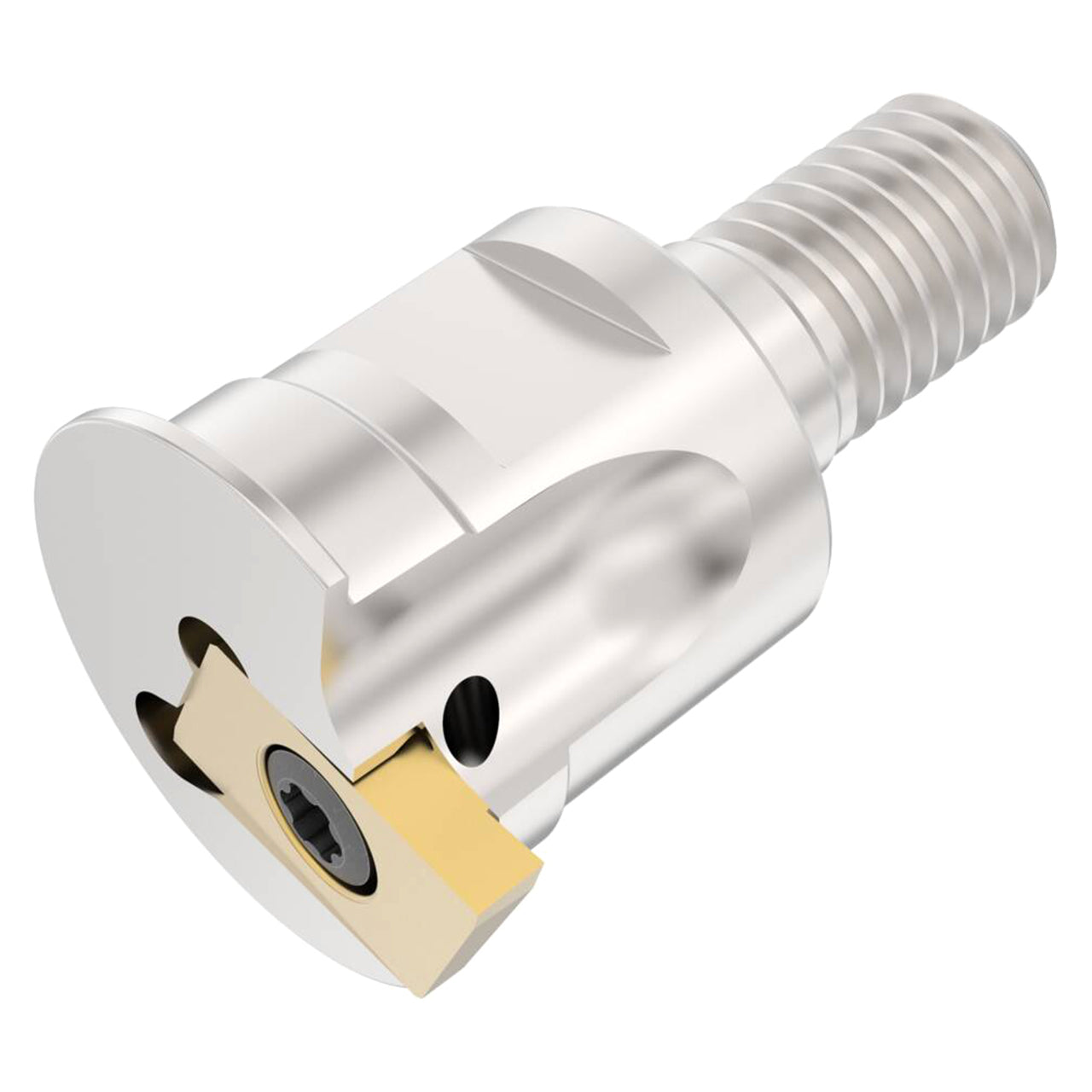

| Product Type | Indexable Square-Shoulder End Mil |
