Product Specifications

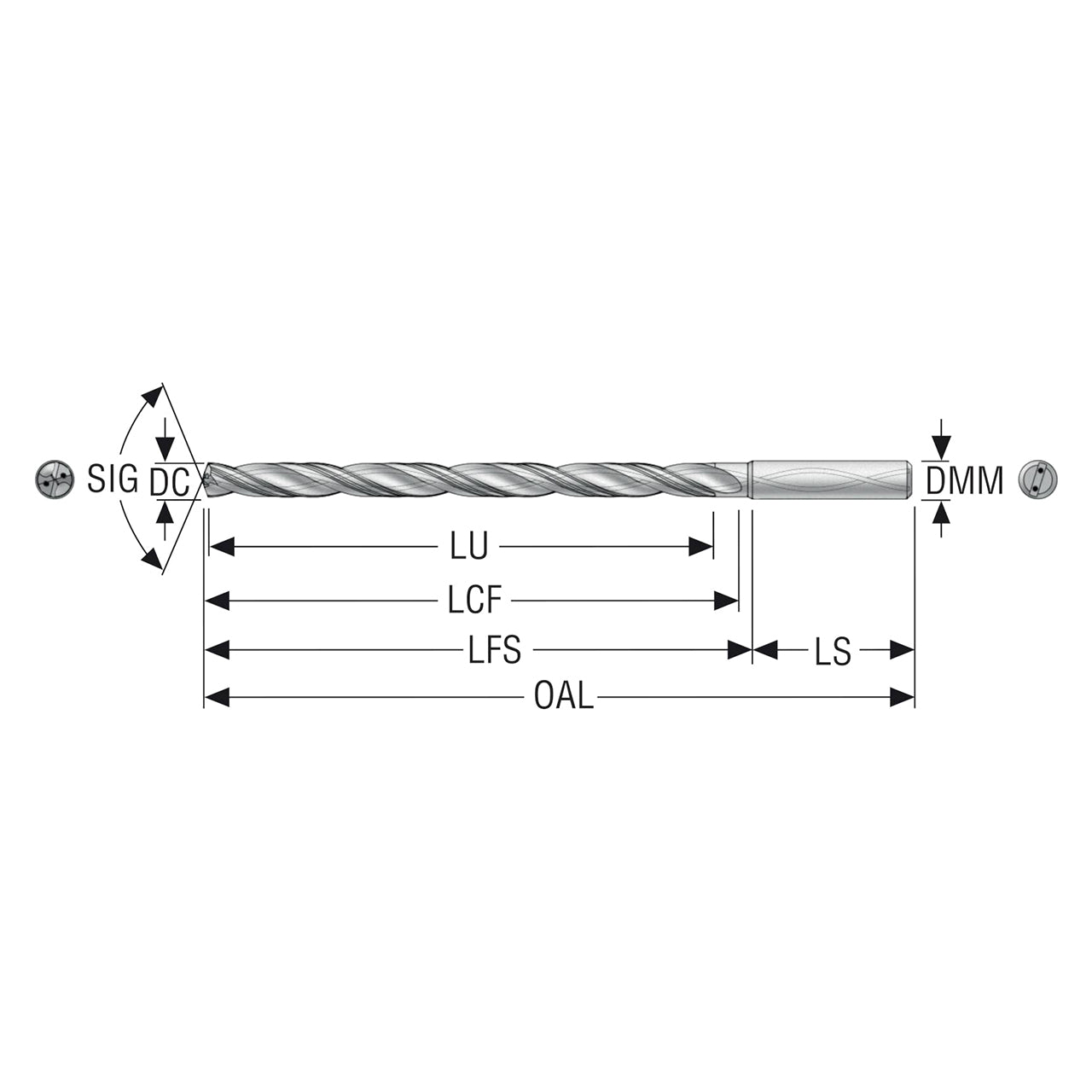

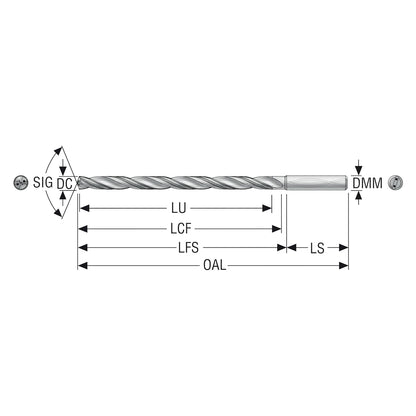

| Manufacturer Part Number | 03323717 |
| Cutting Diameter (Decimal Inch) | 0.375" |
| Cutting Diameter (mm) | 9.53mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Chip Flute Length (Decimal Inch) | 5.433" |
| Chip Flute Length (mm) | 138.00mm |
| Functional Length Secondary (Decimal Inch) | 5.512" |
| Functional Length Secondary (mm) | 140.00mm |
| Shank Length (Decimal Inch) | 1.575" |
| Shank Length (mm) | 40.00mm |
| Usable Length (Decimal Inch) | 4.843" |
| Usable Length (mm) | 123.00mm |
| Overall Length (Decimal Inch) | 7.087" |
| Overall Length (mm) | 180.00mm |
| Point Length (Decimal Inch) | 0.068" |
| Point Length (mm) | 1.73mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

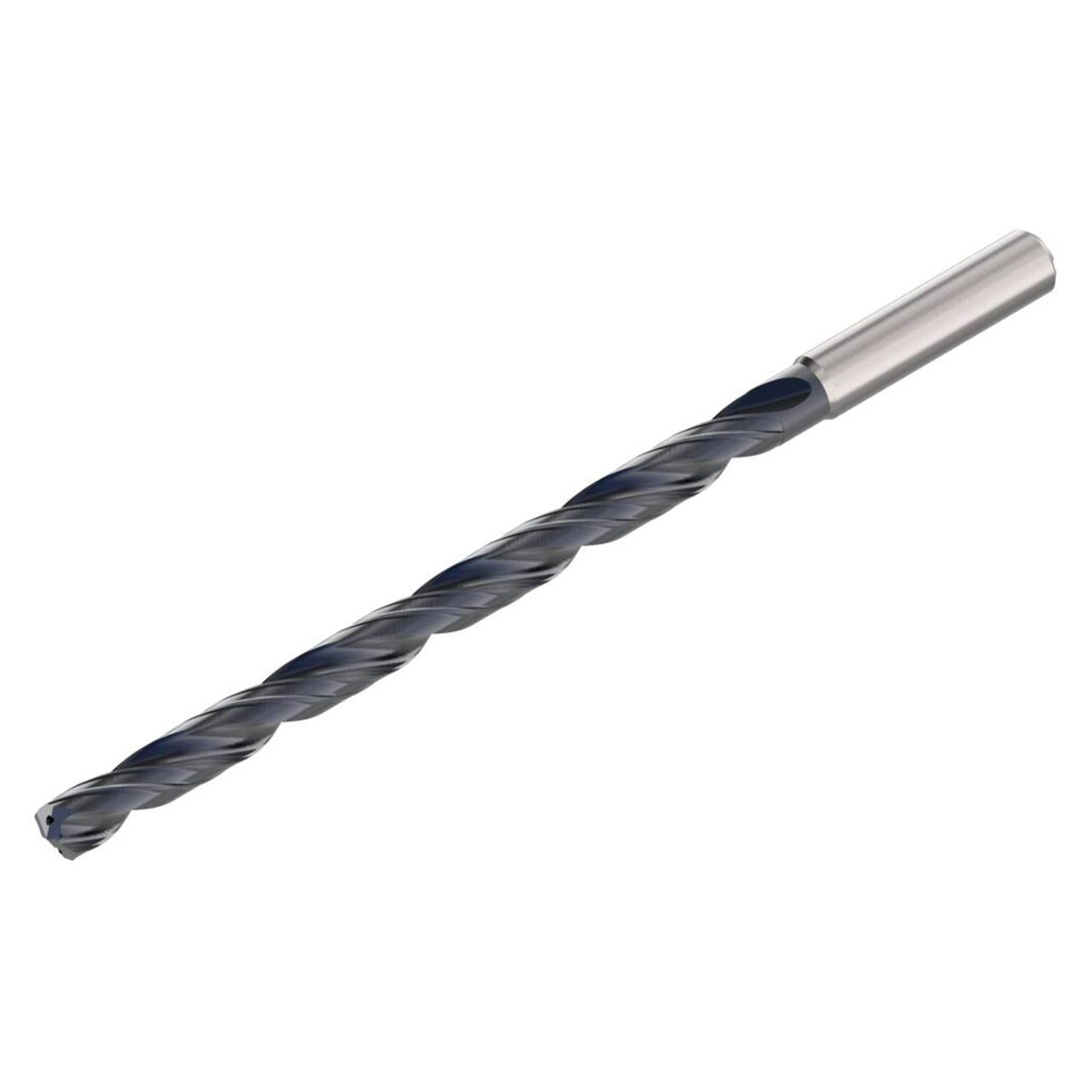

| Product Type | Extra Long Drill Bit |
