Product Specifications
| Manufacturer Part Number | 03323714 |

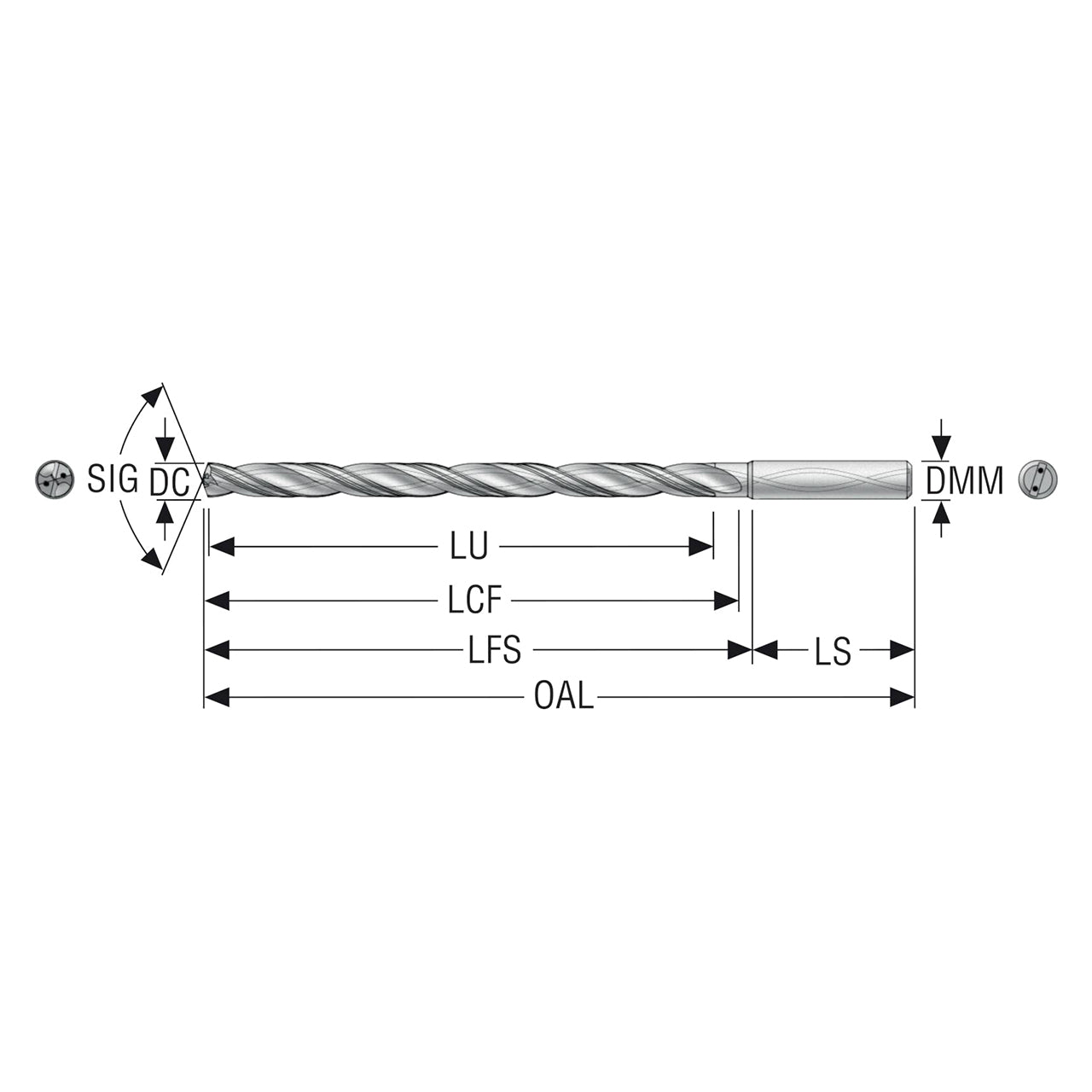

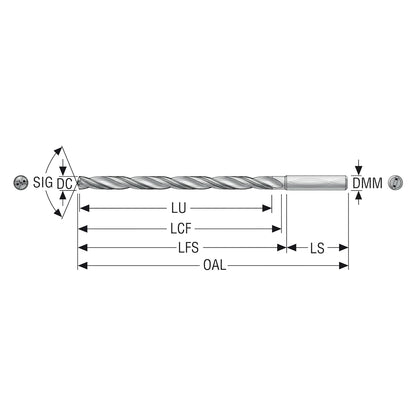

| Cutting Diameter (Decimal Inch) | 0.313" |
| Cutting Diameter (mm) | 7.94mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Chip Flute Length (Decimal Inch) | 4.331" |
| Chip Flute Length (mm) | 110.00mm |
| Functional Length Secondary (Decimal Inch) | 5.039" |
| Functional Length Secondary (mm) | 128.00mm |
| Shank Length (Decimal Inch) | 1.417" |
| Shank Length (mm) | 36.00mm |
| Usable Length (Decimal Inch) | 3.858" |
| Usable Length (mm) | 98.00mm |
| Overall Length (Decimal Inch) | 5.827" |
| Overall Length (mm) | 148.00mm |
| Point Length (Decimal Inch) | 0.057" |
| Point Length (mm) | 1.44mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

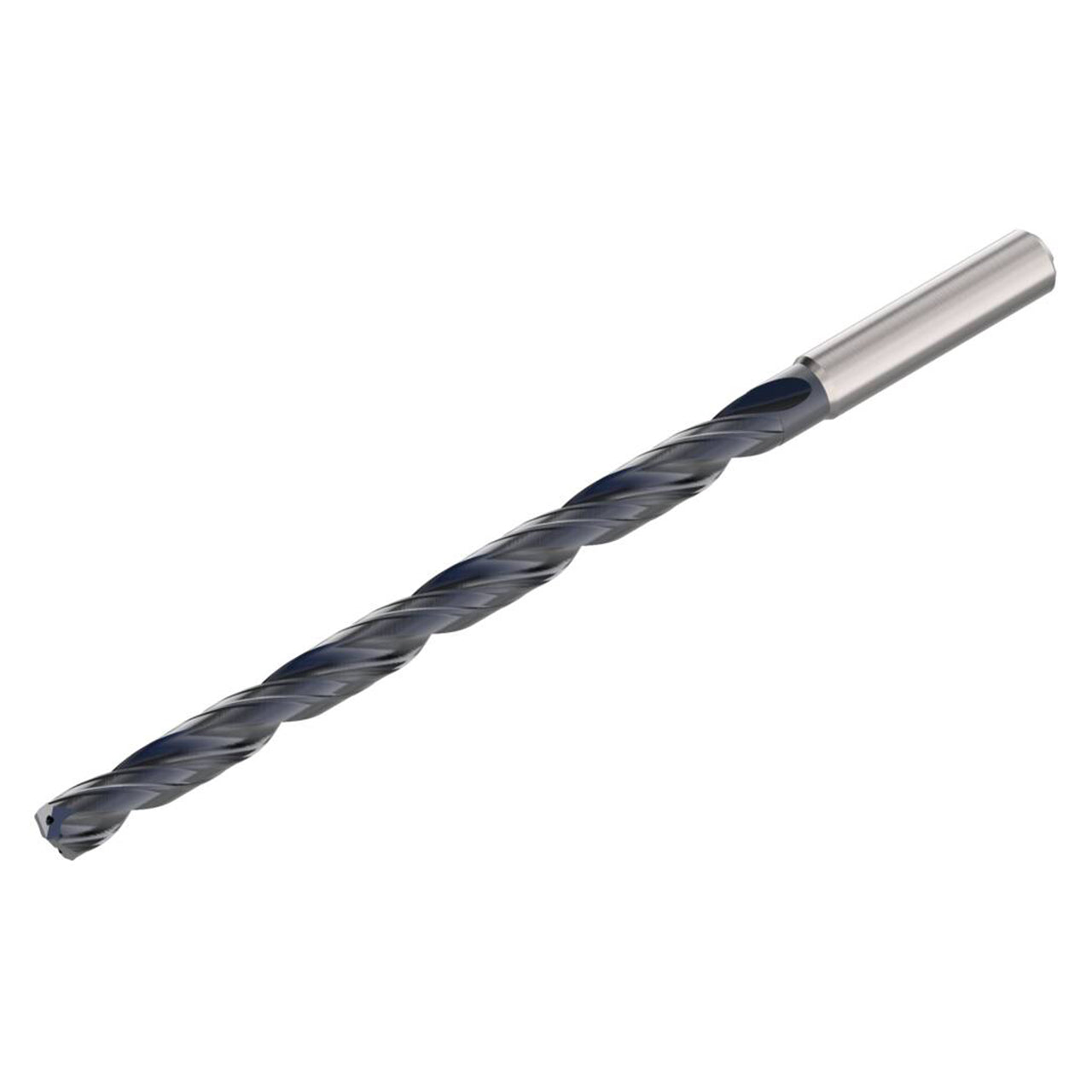

| Product Type | Extra Long Drill Bit |
