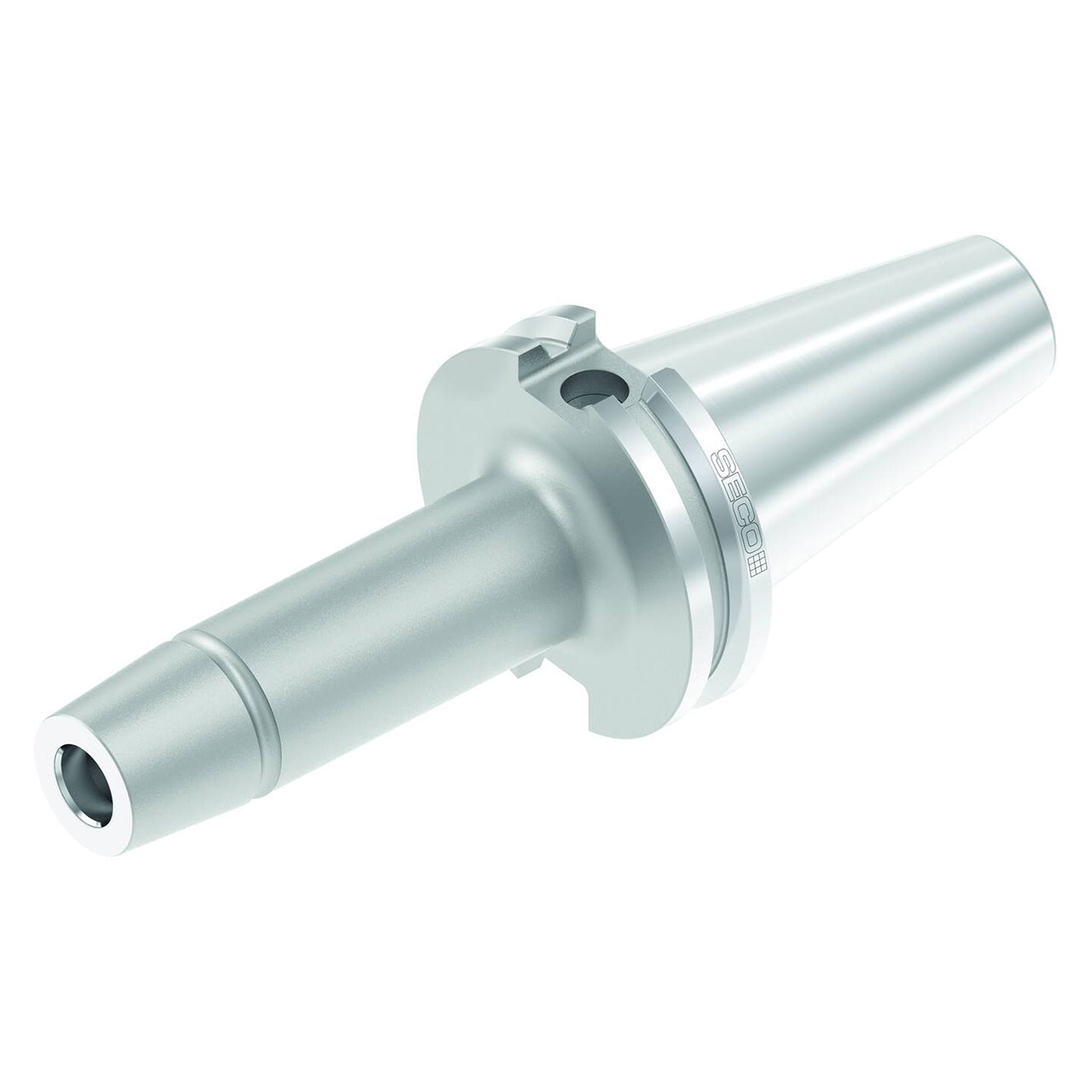

Seco Tools 03308028 | CAT40TFADB-M16-5.315 30.00mm Diameter x 203.40mm OAL End Mill Holder

Seco Tools 03308028 | CAT40TFADB-M16-5.315 30.00mm Diameter x 203.40mm OAL End Mill Holder

SKU: 23288260

Precio habitual $476.27 USD
Precio habitual $491.00 USD Precio de oferta $476.27 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 1383 Grams

Ver todos los detalles

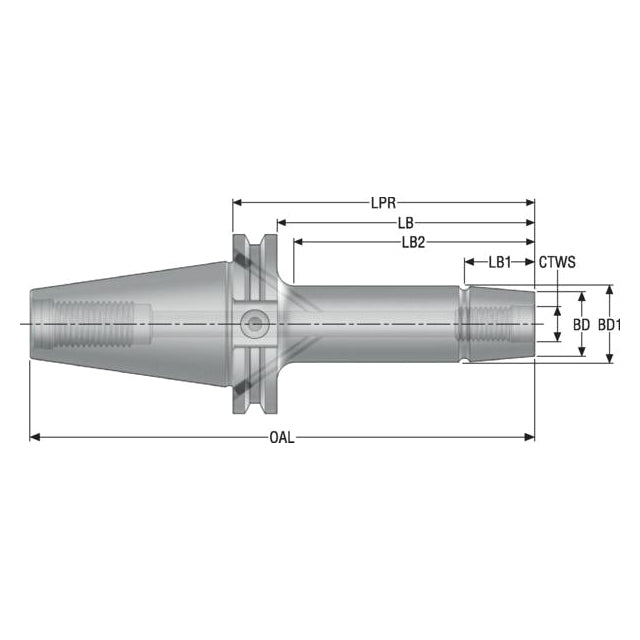

Product Specifications
Manufacturer Part Number 03308028
Body Diameter (Decimal Inch) 1.181"
Body Diameter (mm) 30.00mm
Body Diameter 1 (Decimal Inch) 1.201"
Body Diameter 1 (mm) 30.50mm
Body Length (Decimal Inch) 4.563"
Body Length (mm) 115.90mm
Body Length 1 (Decimal Inch) 1.181"
Body Length 1 (mm) 30.00mm
Body Length 2 (Decimal Inch) 3.937"
Body Length 2 (mm) 100.00mm
Protruding Length (Decimal Inch) 5.315"
Protruding Length (mm) 135.00mm
Overall Length (Decimal Inch) 8.008"
Overall Length (mm) 203.40mm
Data Chip Provision 1
Product Type End Mill Holder
