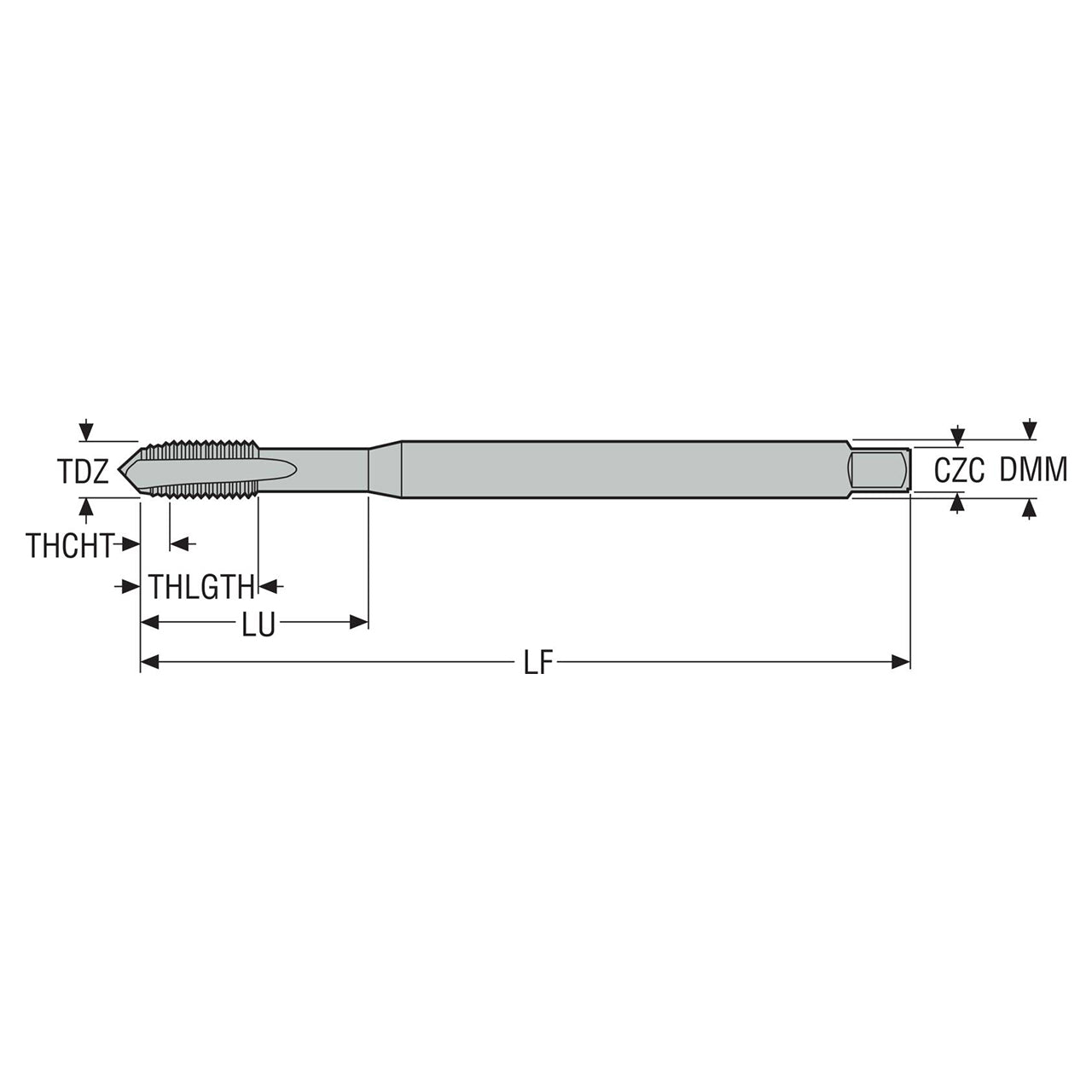

Product Specifications
| Manufacturer Part Number | 03305489 |
| Thread Diameter (Decimal Inch) | 0.313" |
| Thread Diameter (mm) | 7.94mm |
| Threading Chamfer Length (Decimal Inch) | 0.115" |
| Threading Chamfer Length (mm) | 2.91mm |
| Tap Chamfer Length (Decimal Inch) | 0.115" |
| Tap Chamfer Length (mm) | 2.91mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Functional Length (Decimal Inch) | 3.429" |
| Functional Length (mm) | 87.09mm |
| Usable Length (Decimal Inch) | 1.319" |
| Usable Length (mm) | 33.50mm |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Thread Length (Decimal Inch) | 0.736" |
| Thread Length (mm) | 18.70mm |
| Thread Diameter Size | UNF5/16-24 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.272" |
| Recommended Premachined Hole Diameter (mm) | 6.90mm |
| Connection Size Code | 9.25X6.20 |
| Connection Size Code Machine Side | 9.25X6.20 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.265" |
| Maximum Premachined Hole Diameter (mm) | 6.73mm |
| Minimum Threads Per Inch (mm) | 24.00mm |
| Maximum Threads Per Inch (mm) | 24.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-K |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E-PM |
| Coating | TIALN |

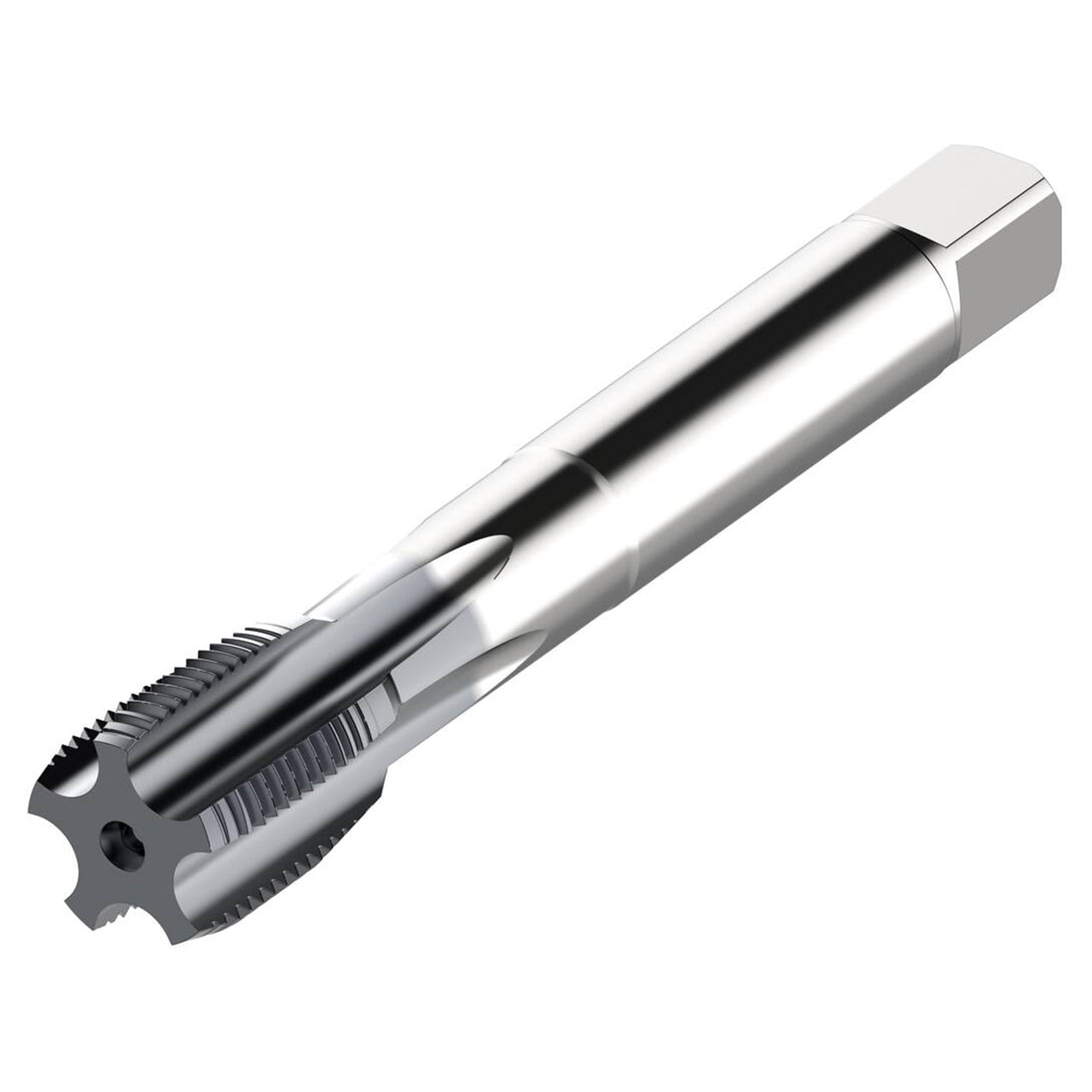

| Product Type | Straight Flute Tap |
