Product Specifications

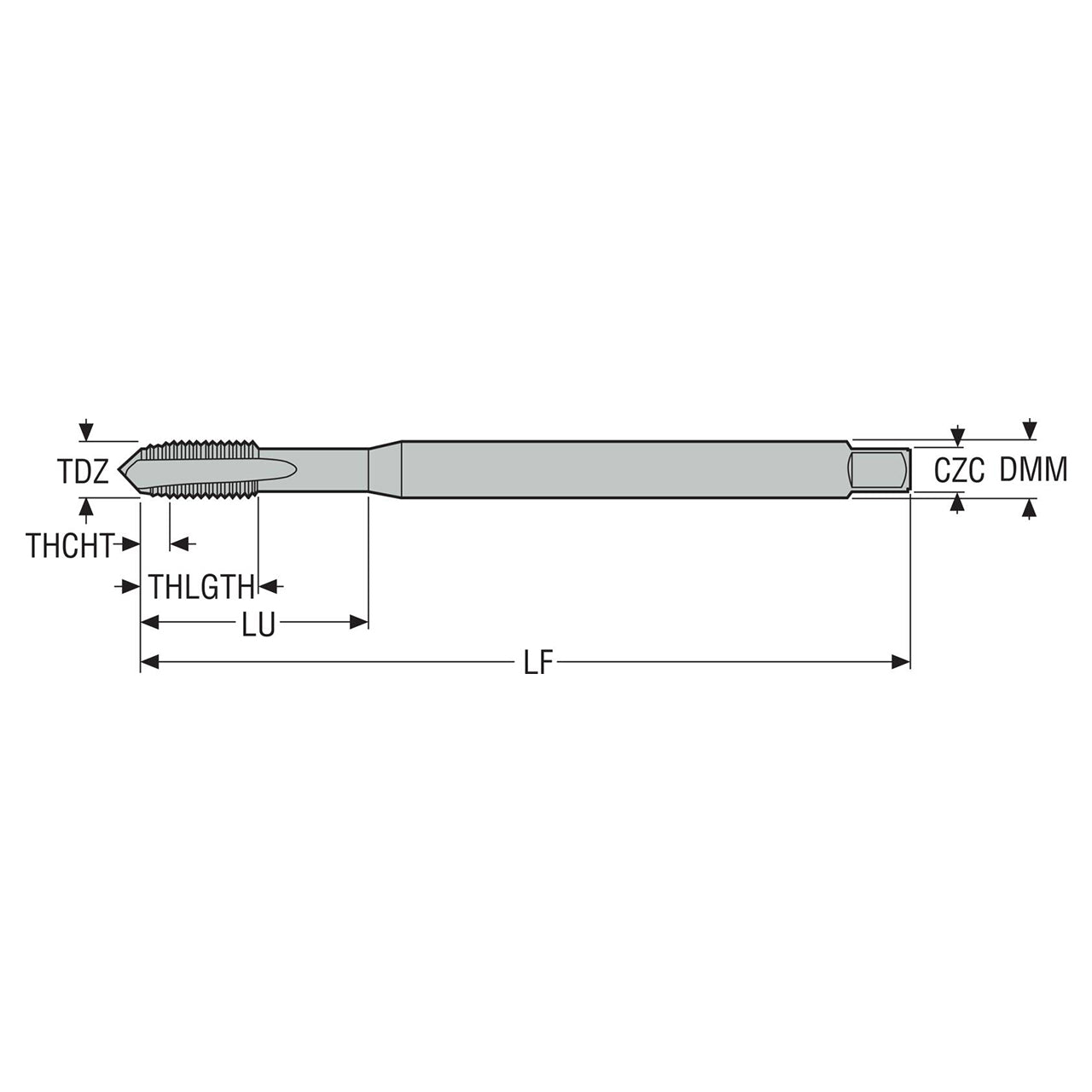

| Manufacturer Part Number | 03305487 |
| Thread Diameter (Decimal Inch) | 0.875" |
| Thread Diameter (mm) | 22.23mm |
| Threading Chamfer Length (Decimal Inch) | 0.306" |
| Threading Chamfer Length (mm) | 7.76mm |
| Tap Chamfer Length (Decimal Inch) | 0.306" |
| Tap Chamfer Length (mm) | 7.76mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.709" |
| Connection Diameter Machine Side (mm) | 18.00mm |
| Shank Diameter (Decimal Inch) | 0.709" |
| Shank Diameter (mm) | 18.00mm |
| Functional Length (Decimal Inch) | 5.206" |
| Functional Length (mm) | 132.24mm |
| Usable Length (Decimal Inch) | 3.581" |
| Usable Length (mm) | 90.95mm |
| Overall Length (Decimal Inch) | 5.512" |
| Overall Length (mm) | 140.00mm |
| Thread Length (Decimal Inch) | 1.339" |
| Thread Length (mm) | 34.00mm |
| Thread Diameter Size | UNC7/8-9 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.768" |
| Recommended Premachined Hole Diameter (mm) | 19.50mm |
| Connection Size Code | 17.25X14.5 |
| Connection Size Code Machine Side | 17.25X14.5 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.778" |
| Maximum Premachined Hole Diameter (mm) | 19.75mm |
| Minimum Threads Per Inch (mm) | 9.00mm |
| Maximum Threads Per Inch (mm) | 9.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-K |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E-PM |
| Coating | TIALN |

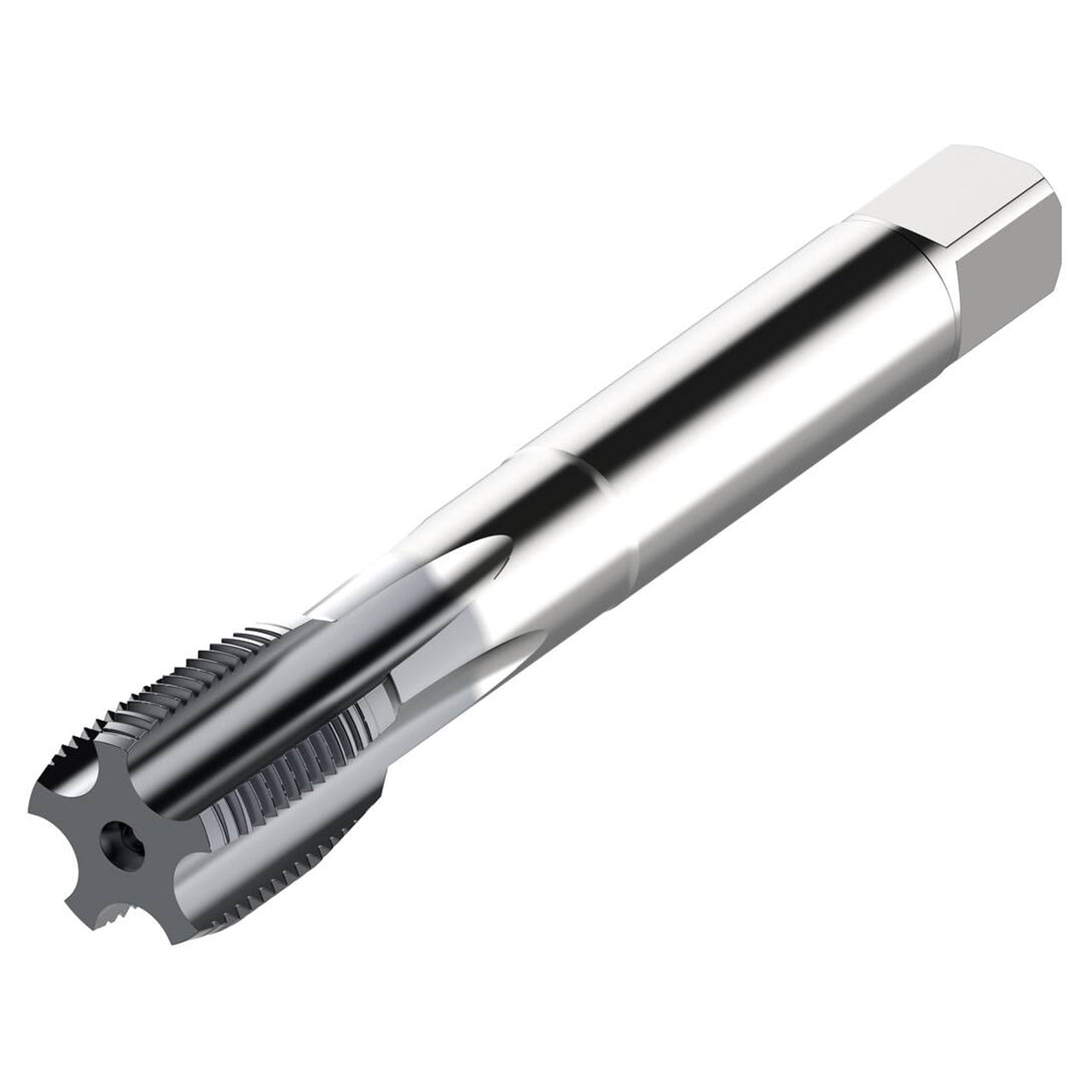

| Product Type | Straight Flute Tap |
