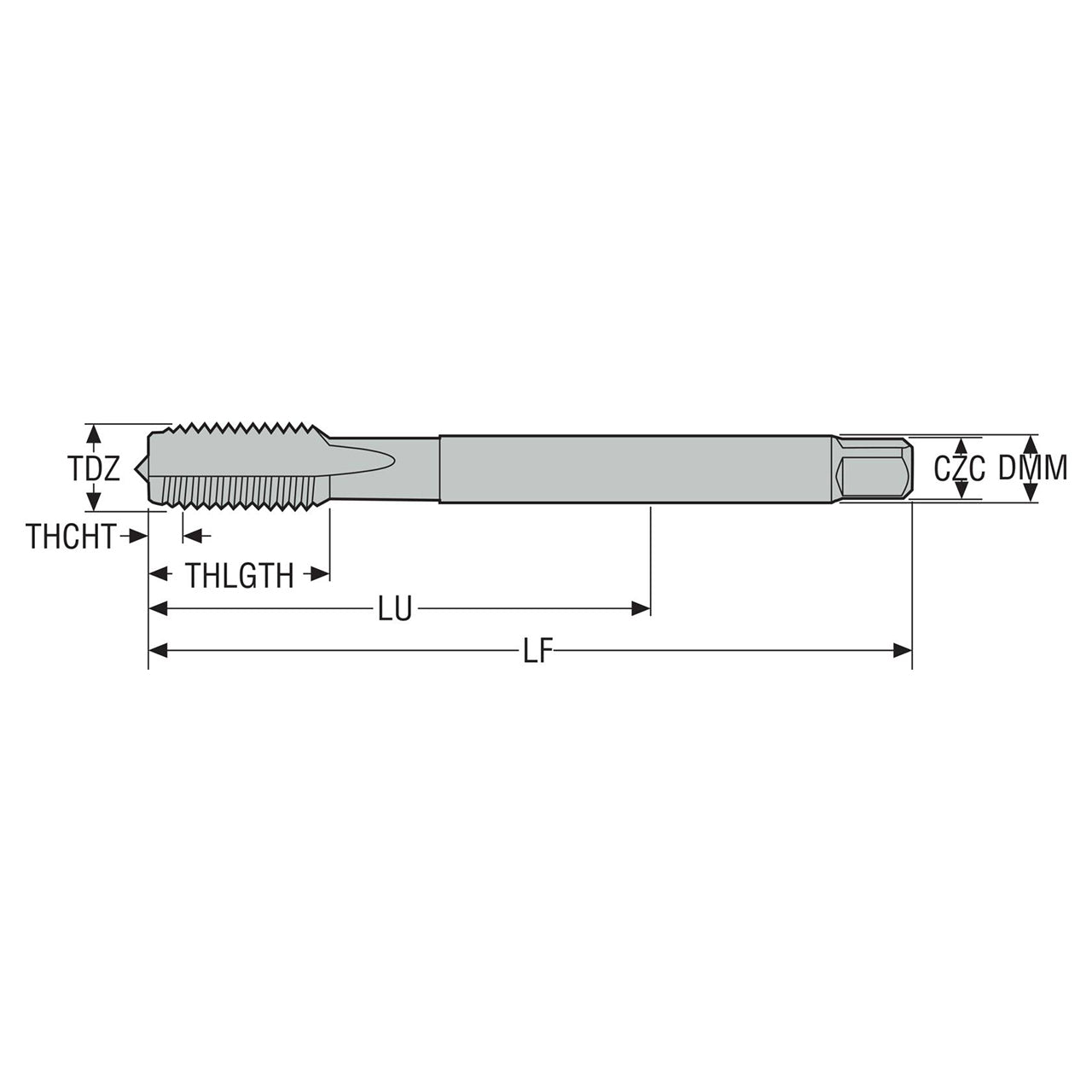

Product Specifications
| Manufacturer Part Number | 03305477 |
| Thread Diameter (Decimal Inch) | 0.825" |
| Thread Diameter (mm) | 20.96mm |
| Threading Chamfer Length (Decimal Inch) | 0.197" |
| Threading Chamfer Length (mm) | 4.99mm |
| Tap Chamfer Length (Decimal Inch) | 0.196" |
| Tap Chamfer Length (mm) | 4.99mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.630" |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.630" |
| Shank Diameter (mm) | 16.00mm |
| Functional Length (Decimal Inch) | 4.725" |
| Functional Length (mm) | 120.01mm |
| Usable Length (Decimal Inch) | 3.150" |
| Usable Length (mm) | 80.00mm |
| Overall Length (Decimal Inch) | 4.921" |
| Overall Length (mm) | 125.00mm |
| Thread Length (Decimal Inch) | 0.827" |
| Thread Length (mm) | 21.00mm |
| Thread Diameter Size | G1/2-14 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.748" |
| Recommended Premachined Hole Diameter (mm) | 19.00mm |
| Connection Size Code | 16.00X12.00 |
| Connection Size Code Machine Side | 16.00X12.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.755" |
| Maximum Premachined Hole Diameter (mm) | 19.17mm |
| Minimum Threads Per Inch (mm) | 14.00mm |
| Maximum Threads Per Inch (mm) | 14.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal-X |
| Threading Chamfer Type | C |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-K |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E-PM |
| Coating | TIALN |

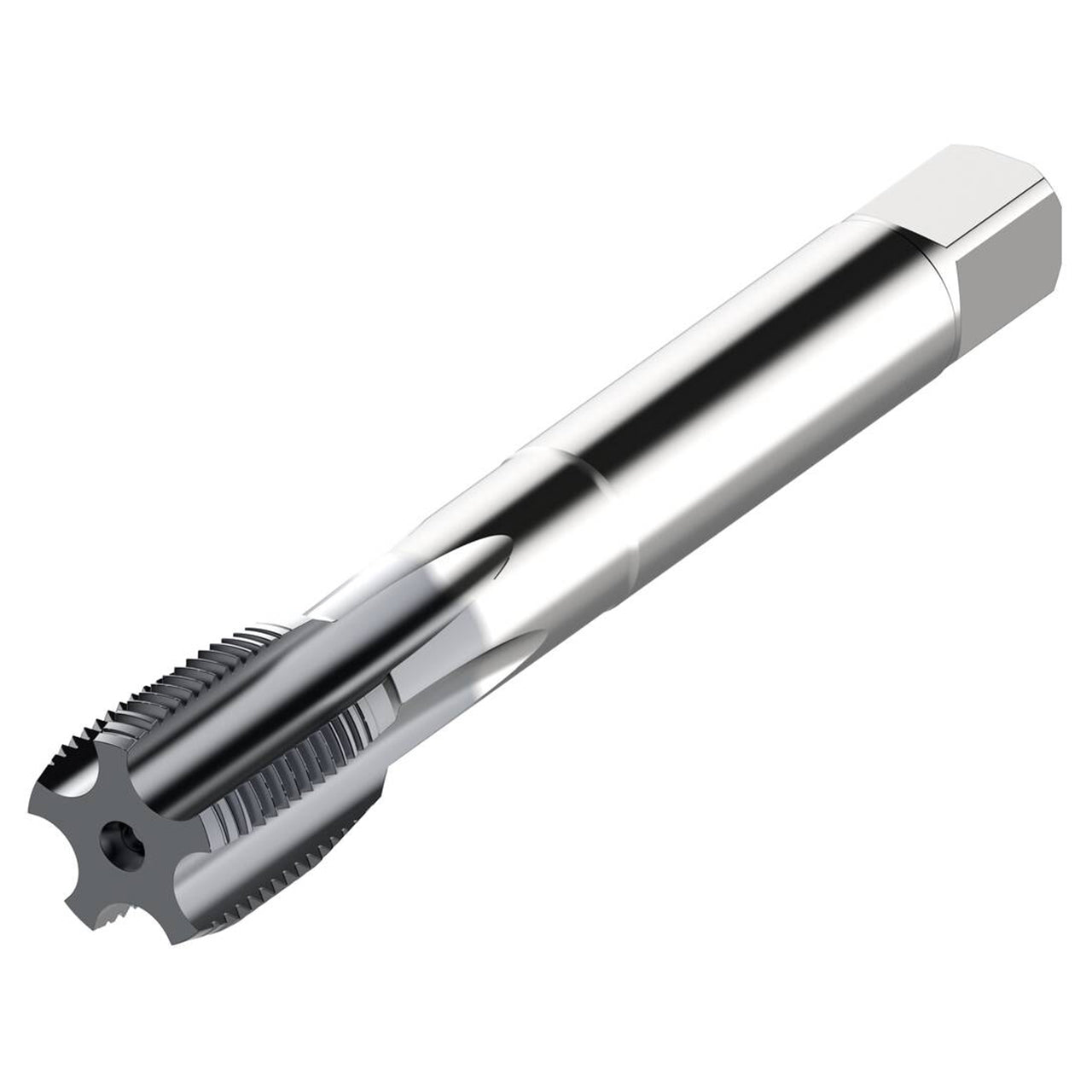

| Product Type | British Standard Pipe Tap |
