Product Specifications

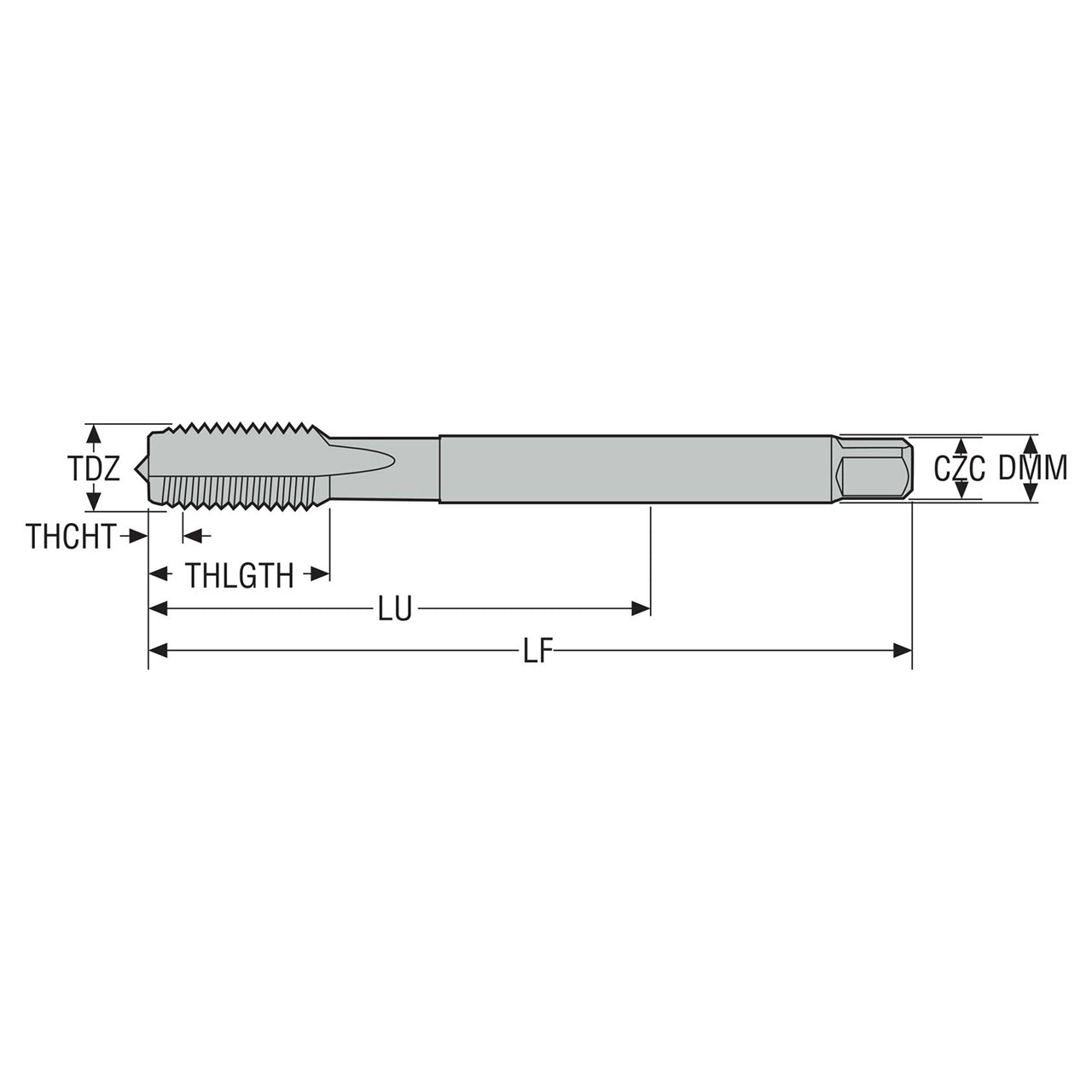

| Manufacturer Part Number | 03305475 |
| Thread Diameter (Decimal Inch) | 0.518" |
| Thread Diameter (mm) | 13.16mm |
| Threading Chamfer Length (Decimal Inch) | 0.145" |
| Threading Chamfer Length (mm) | 3.68mm |
| Tap Chamfer Length (Decimal Inch) | 0.145" |
| Tap Chamfer Length (mm) | 3.68mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.433" |
| Connection Diameter Machine Side (mm) | 11.00mm |
| Shank Diameter (Decimal Inch) | 0.433" |
| Shank Diameter (mm) | 11.00mm |
| Functional Length (Decimal Inch) | 3.792" |
| Functional Length (mm) | 96.32mm |
| Usable Length (Decimal Inch) | 2.795" |
| Usable Length (mm) | 71.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | G1/4-19 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.465" |
| Recommended Premachined Hole Diameter (mm) | 11.80mm |
| Connection Size Code | 11.00X9.00 |
| Connection Size Code Machine Side | 11.00X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.468" |
| Maximum Premachined Hole Diameter (mm) | 11.89mm |
| Minimum Threads Per Inch (mm) | 19.00mm |
| Maximum Threads Per Inch (mm) | 19.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal-X |
| Threading Chamfer Type | C |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-K |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E-PM |
| Coating | TIALN |

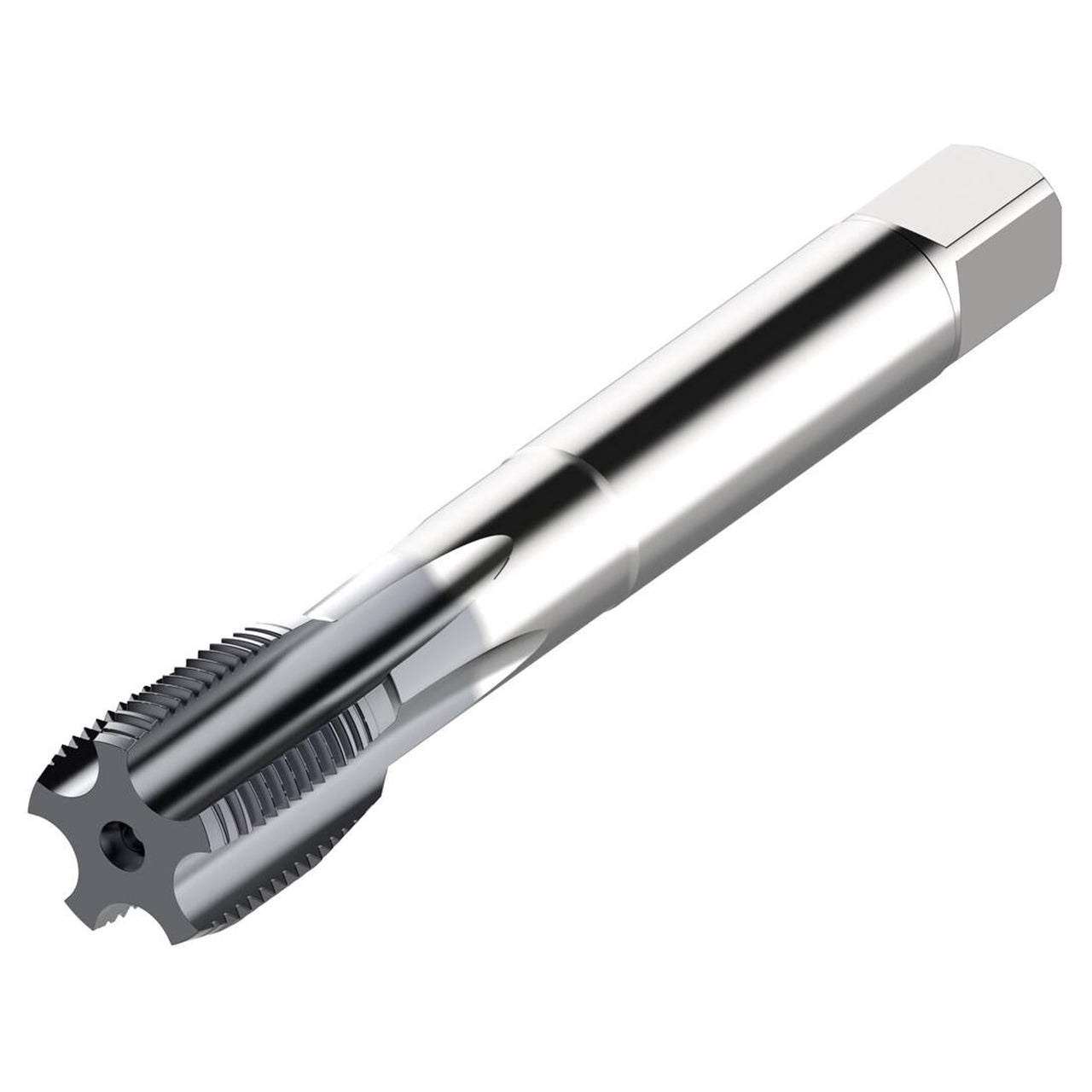

| Product Type | British Standard Pipe Tap |
