Product Specifications

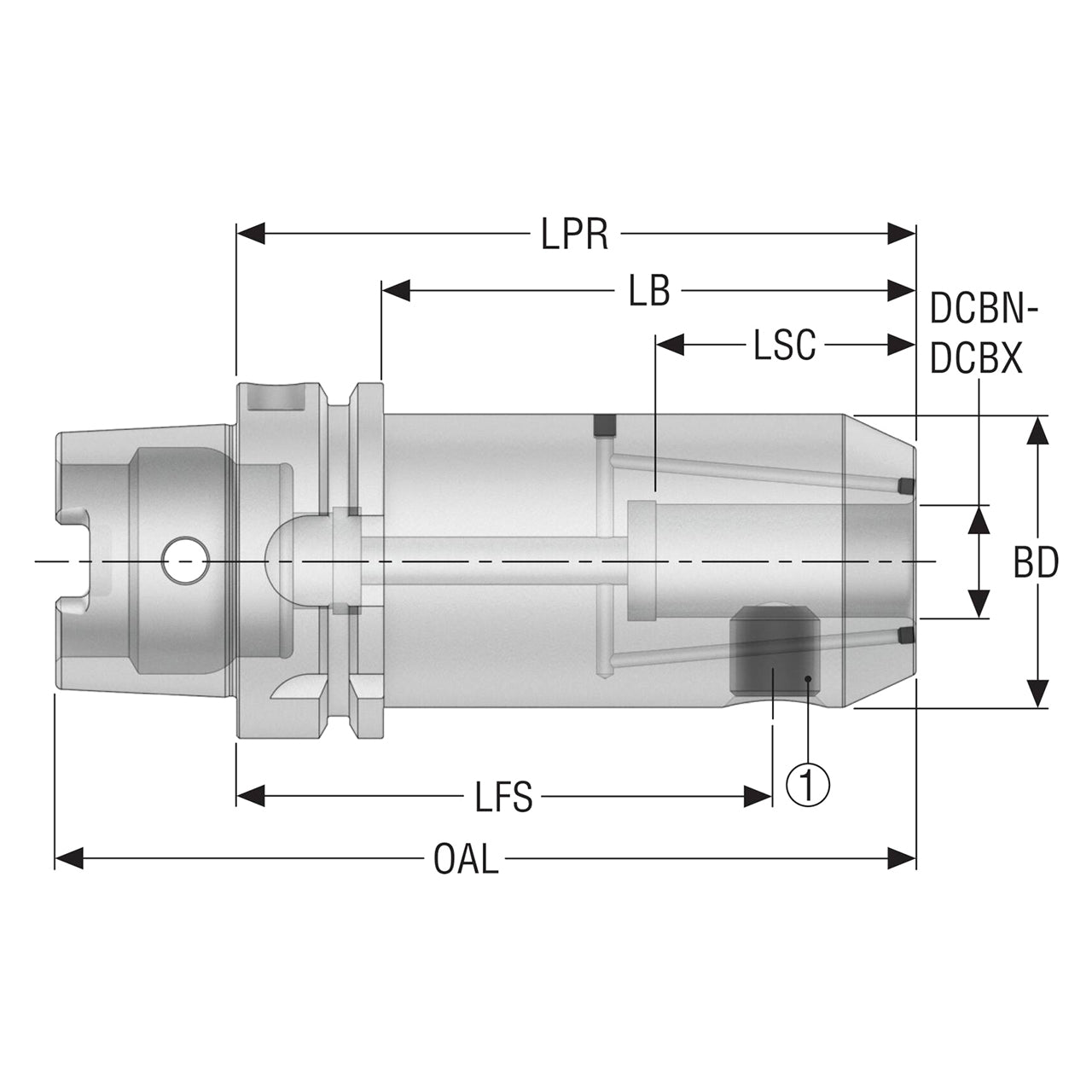

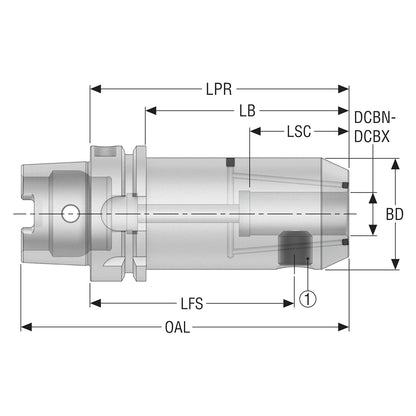

| Manufacturer Part Number | 03301736 |
| Body Diameter (Decimal Inch) | 1.500" |
| Body Diameter (mm) | 38.10mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Minimum Connection Bore Diameter (mm) | 15.88mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Maximum Connection Bore Diameter (mm) | 15.88mm |
| Body Length (Decimal Inch) | 2.226" |
| Body Length (mm) | 56.55mm |
| Functional Length Secondary (Decimal Inch) | 2.340" |
| Functional Length Secondary (mm) | 59.44mm |
| Protruding Length (Decimal Inch) | 3.250" |
| Protruding Length (mm) | 82.55mm |
| Clamping Length (Decimal Inch) | 1.870" |
| Clamping Length (mm) | 47.50mm |
| Overall Length (Decimal Inch) | 4.510" |
| Overall Length (mm) | 114.55mm |
| Data Chip Provision | 1 |

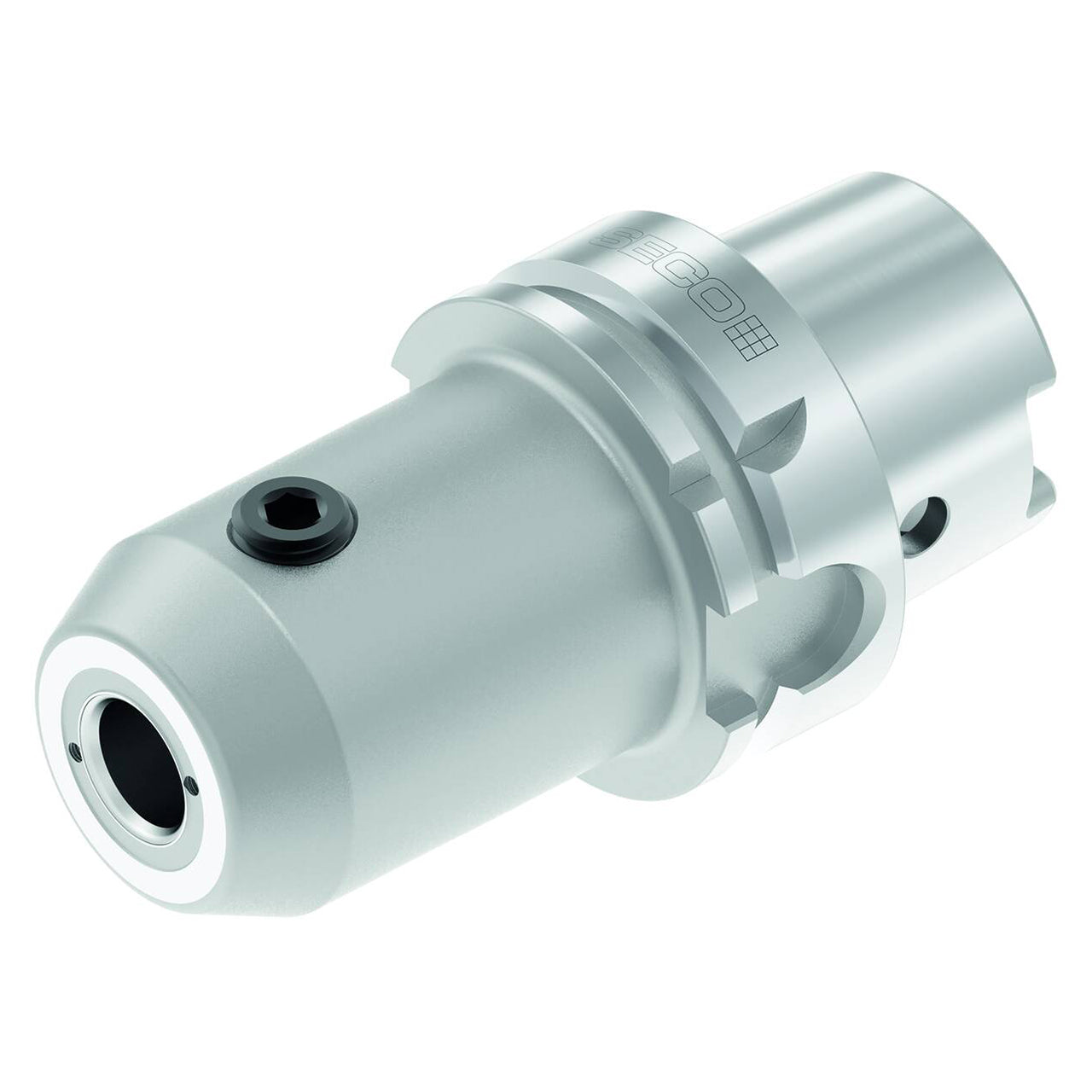

| Product Type | End Mill Holder |
