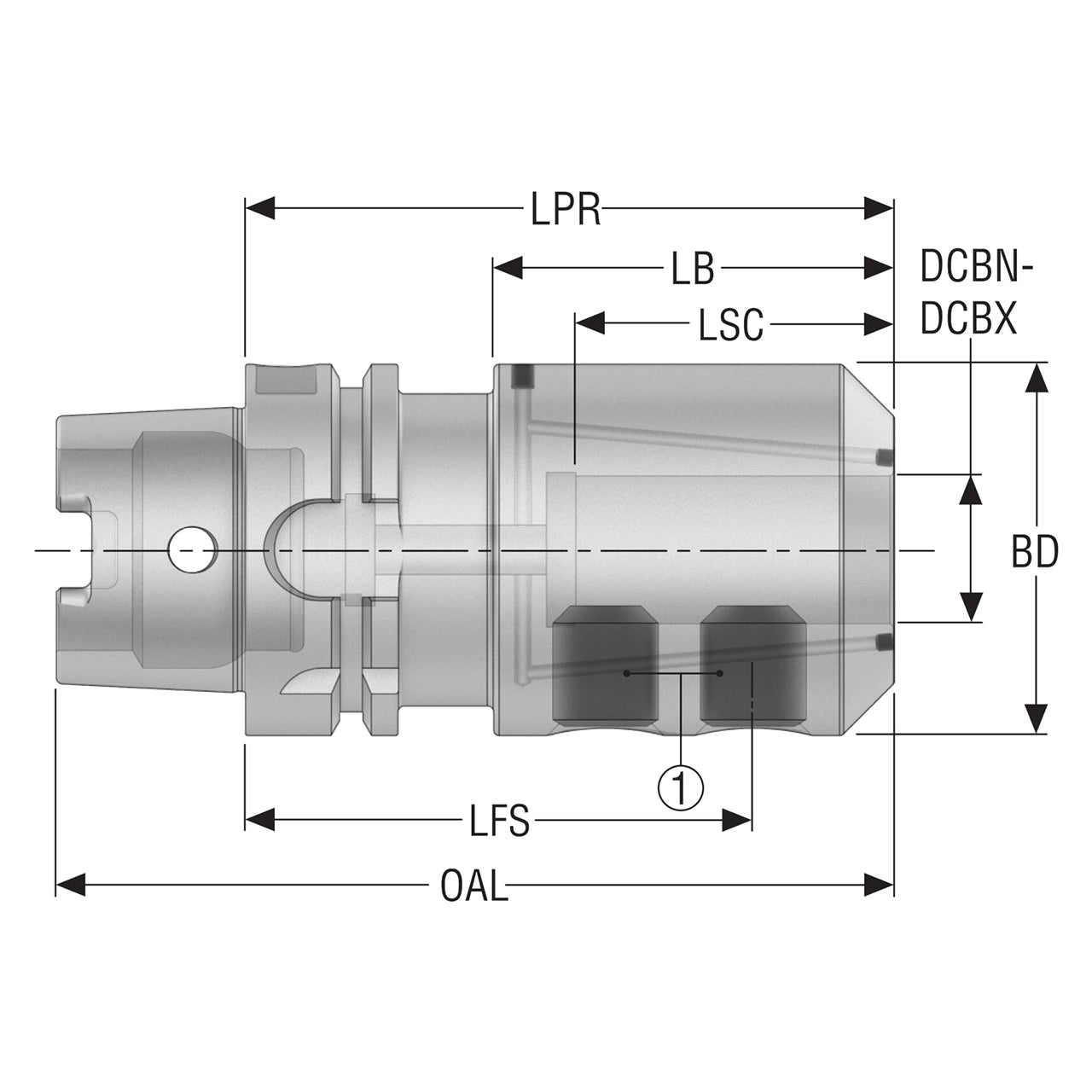

Product Specifications
| Manufacturer Part Number | 03301712 |
| Body Diameter (Decimal Inch) | 2.559" |
| Body Diameter (mm) | 65.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Body Length (Decimal Inch) | 2.795" |
| Body Length (mm) | 71.00mm |
| Functional Length Secondary (Decimal Inch) | 2.992" |
| Functional Length Secondary (mm) | 76.00mm |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Clamping Length (Decimal Inch) | 2.126" |
| Clamping Length (mm) | 54.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Data Chip Provision | 1 |

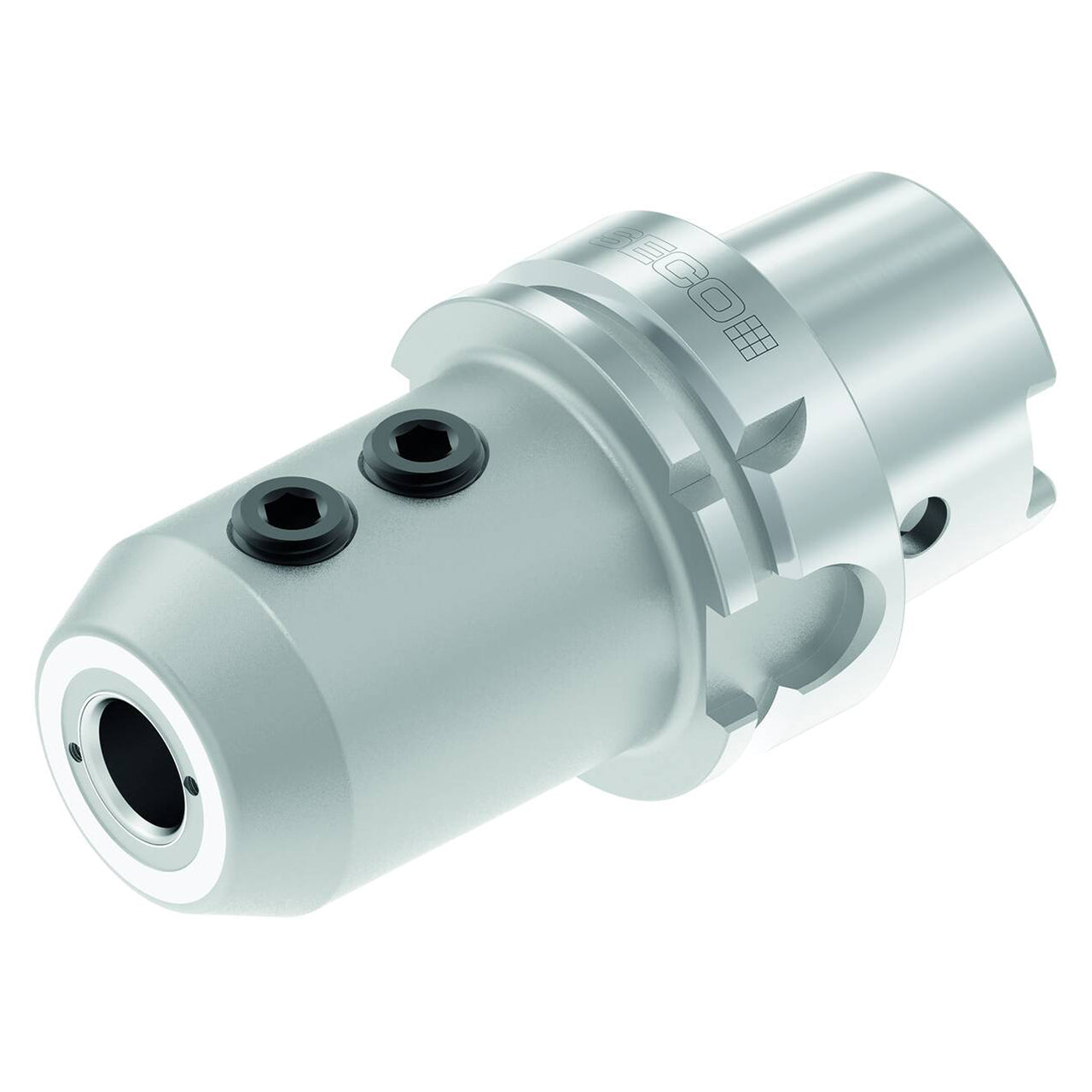

| Product Type | End Mill Holder |
