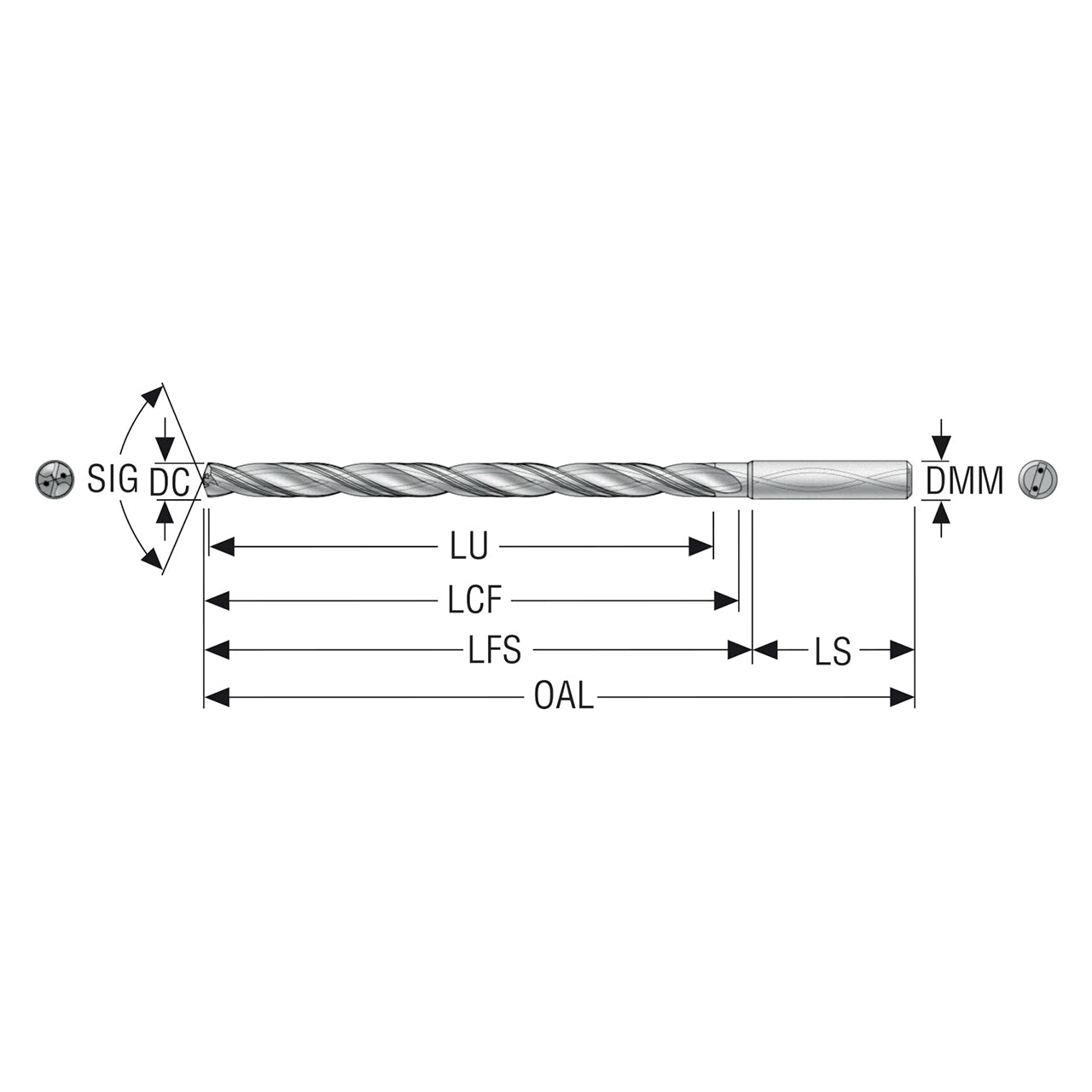

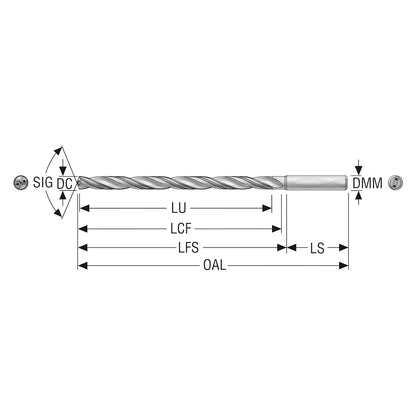

Product Specifications
| Manufacturer Part Number | 03295176 |
| Cutting Diameter (mm) | 19.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Chip Flute Length (mm) | 258.00mm |
| Functional Length Secondary (mm) | 260.00mm |
| Shank Length (mm) | 50.00mm |
| Usable Length (mm) | 238.00mm |
| Overall Length (mm) | 310.00mm |
| Point Length (mm) | 3.46mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

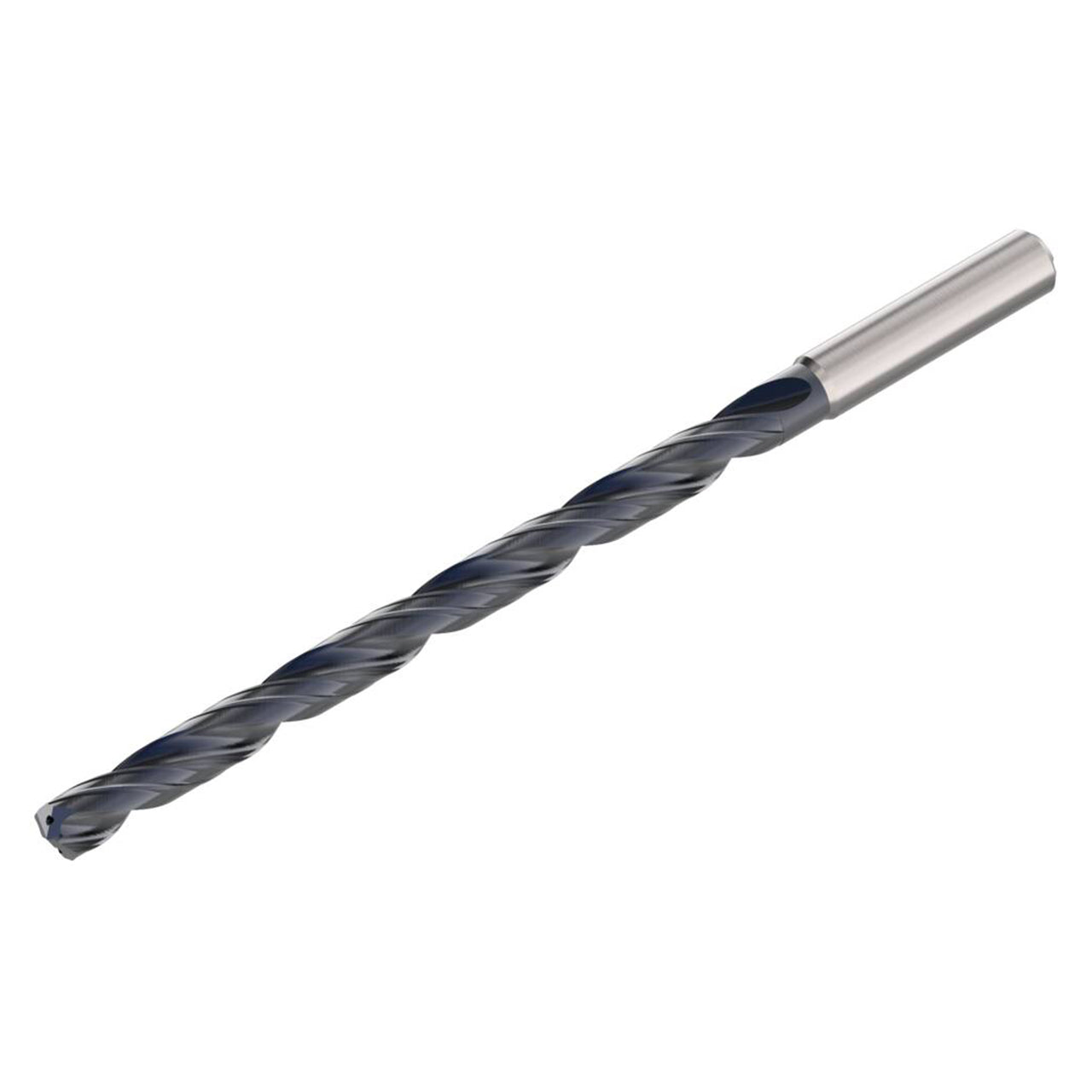

| Product Type | Extra Long Drill Bit |
