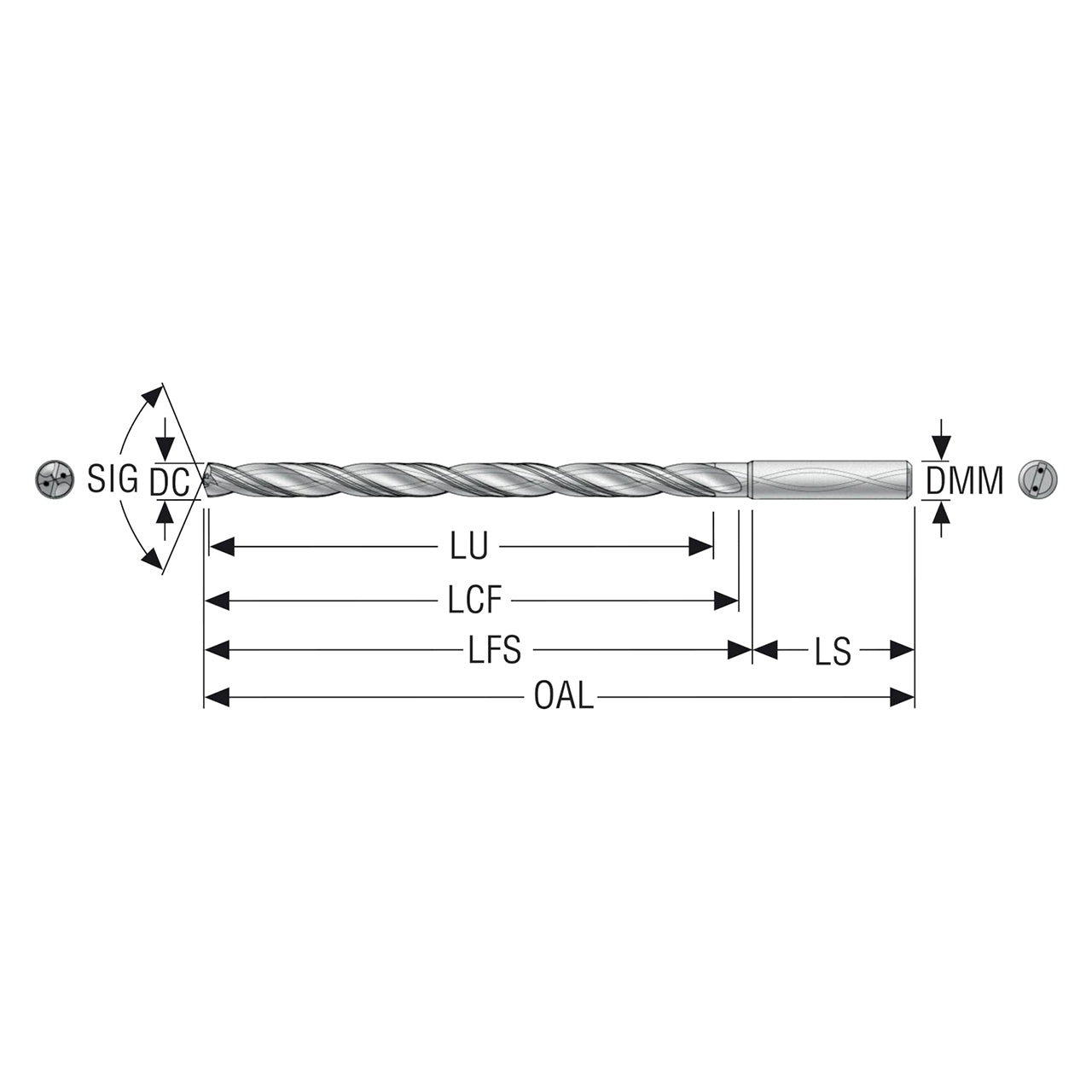

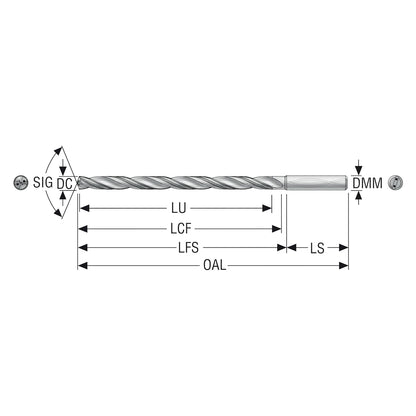

Product Specifications
| Manufacturer Part Number | 03295175 |
| Cutting Diameter (mm) | 18.00mm |
| Connection Diameter Machine Side (mm) | 18.00mm |
| Shank Diameter (mm) | 18.00mm |
| Chip Flute Length (mm) | 234.00mm |
| Functional Length Secondary (mm) | 237.00mm |
| Shank Length (mm) | 48.00mm |
| Usable Length (mm) | 216.00mm |
| Overall Length (mm) | 285.00mm |
| Point Length (mm) | 3.28mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

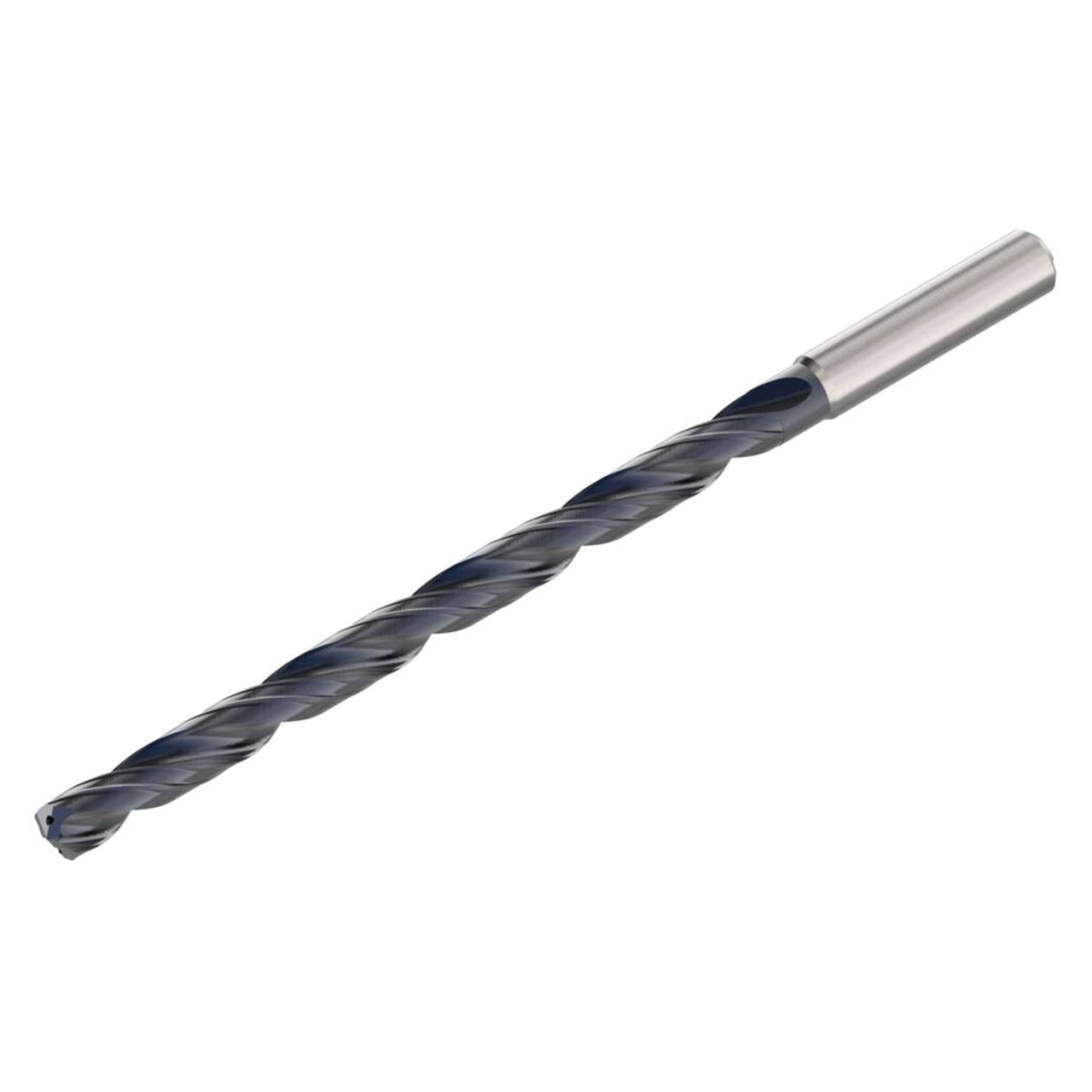

| Product Type | Extra Long Drill Bit |
