Product Specifications
| Manufacturer Part Number | 03290235 |
| Cutting Diameter (Decimal Inch) | 1.250" |
| Cutting Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.181" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Thread Diameter Size | M16 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.402" |
| Maximum Helical Interpolation Hole Diameter (mm) | 61.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.890" |
| Minimum Helical Interpolation Hole Diameter (mm) | 48.00mm |
| Functional Length (Decimal Inch) | 1.772" |
| Functional Length (mm) | 45.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -24.1 Degree |
| Rake Radial Angle (Degree) | -24.1 Degree |
| Rake Orthogonal Angle (Degree) | -24.1 Degree |
| Axial Rake Angle (Degree) | -3 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.35 Degree |
| Maximum Rotational Speed (rpm) | 11400 rpm |
| Shank Type | Combimaster |

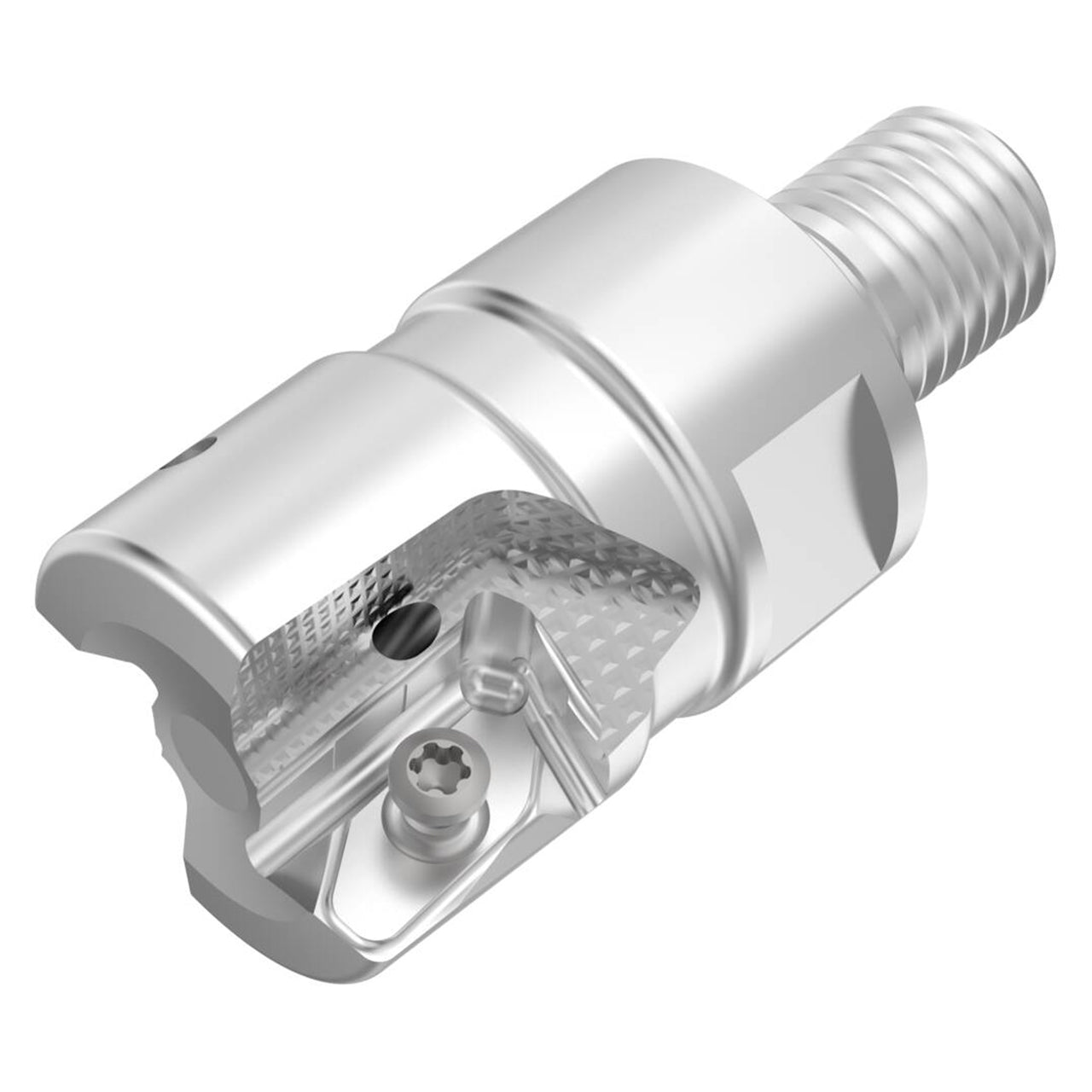

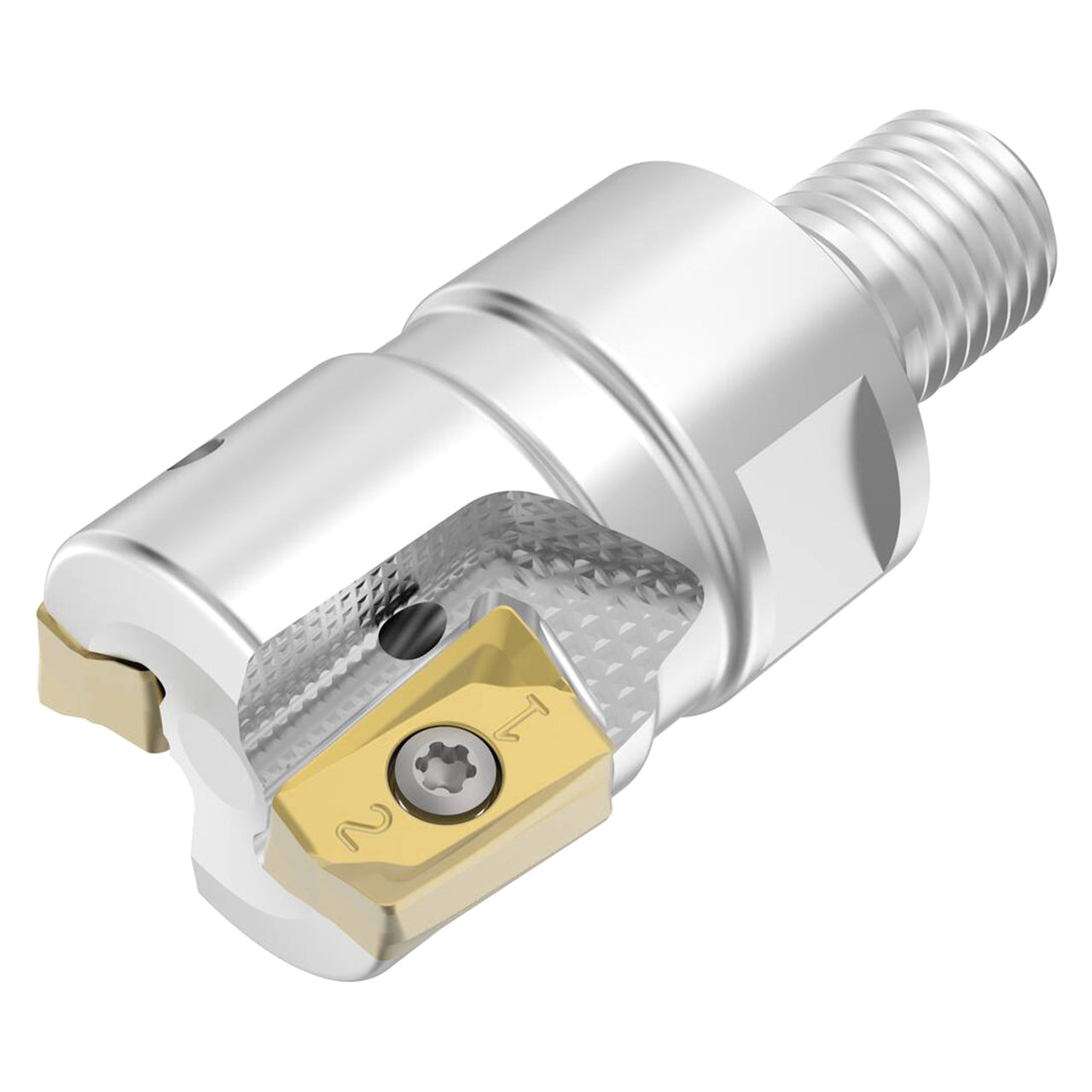

| Product Type | Indexable Copy End Mill |
