Product Specifications
| Manufacturer Part Number | 03282304 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 10.630" |
| Minimum Cutting Diameter Internal (mm) | 270.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 10.630" |
| Minimum Cutting Diameter Internal 3 (mm) | 270.00mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Head Length (Decimal Inch) | 1.654" |
| Head Length (mm) | 42.00mm |
| Shank Length (Decimal Inch) | 3.819" |
| Shank Length (mm) | 97.00mm |
| Overall Length (Decimal Inch) | 5.472" |
| Overall Length (mm) | 139.00mm |
| Functional Height (Decimal Inch) | 1.250" |
| Functional Height (mm) | 31.75mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.043" |
| Maximum Radial Cutting Depth (mm) | 1.10mm |
| Maximum Cutting Depth (Decimal Inch) | 0.177" |
| Maximum Cutting Depth (mm) | 4.50mm |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 94.39 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6.53 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 24.5 Degree |
| Cutting Direction | Right Hand |
| Coolant Entry Style Code | 3 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Insert Clamping System | D |
| Shank Type | Square shank |
| Insert Shape Code | W |

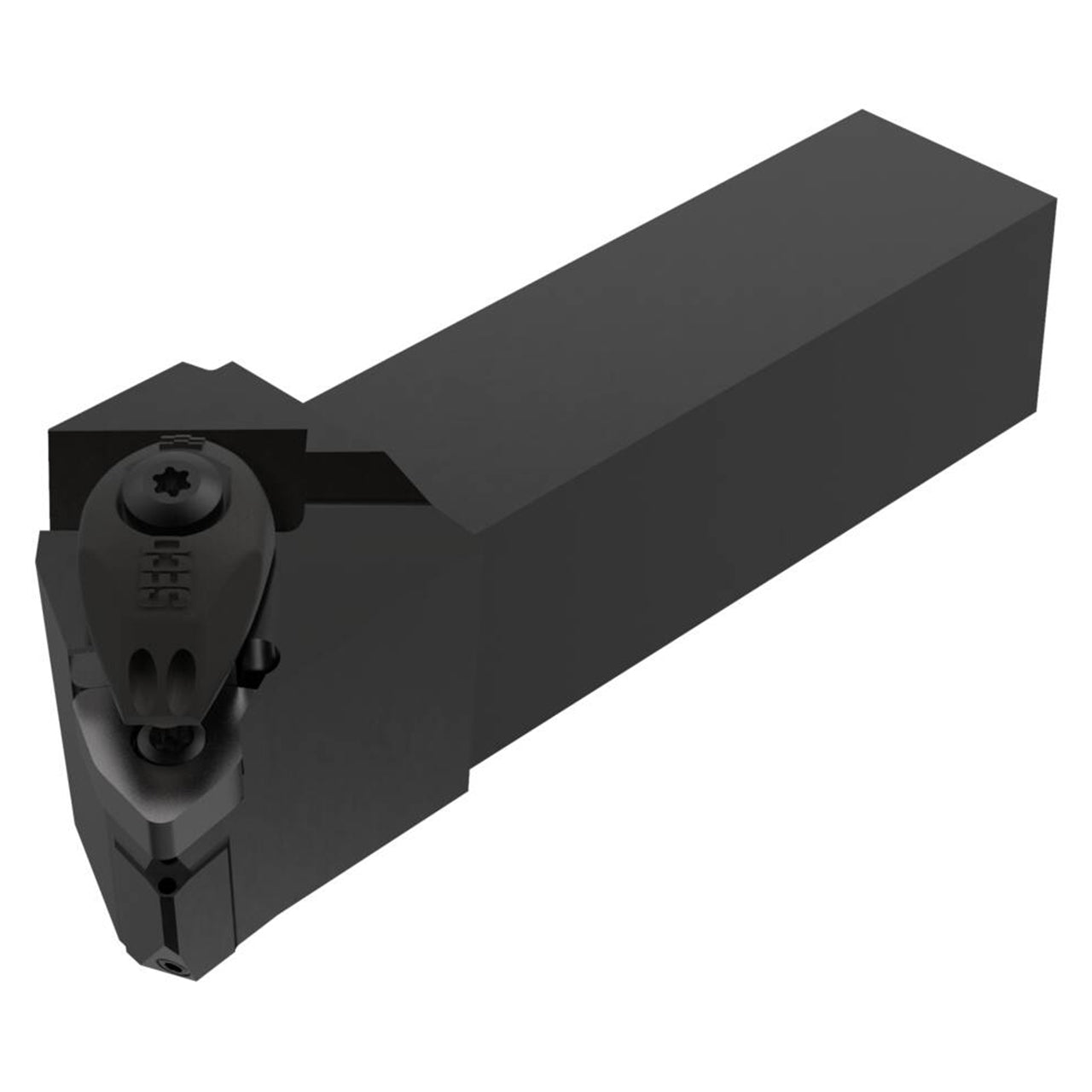

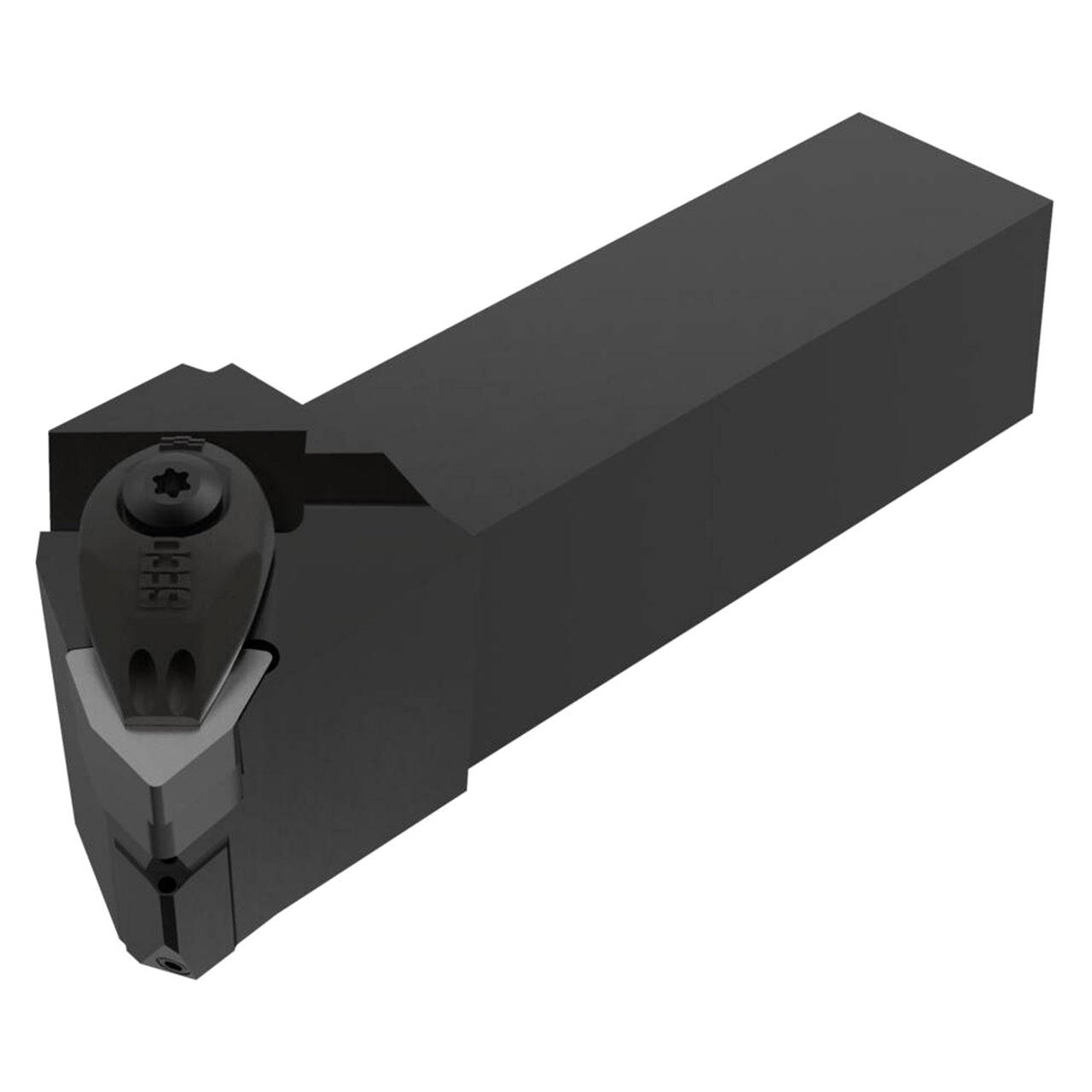

| Product Type | Indexable Turning Toolholder |
