Product Specifications
| Manufacturer Part Number | 03279243 |
| Cutting Diameter (Decimal Inch) | 1.535" |
| Cutting Diameter (mm) | 39.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.654" |
| Contact Surface Diameter Machine Side (mm) | 42.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.000" |
| Maximum Cutting Diameter (mm) | 50.80mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 3.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 99.60mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 3.535" |
| Minimum Helical Interpolation Hole Diameter (mm) | 89.80mm |
| Functional Length (Decimal Inch) | 1.500" |
| Functional Length (mm) | 38.10mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Depth of Key Way (Decimal Inch) | 0.185" |
| Depth of Key Way (mm) | 4.70mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | 2 Degree |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Maximum Rotational Speed (rpm) | 12500 rpm |
| Insert Shape Code | R |
| Shank Type | Arbor |

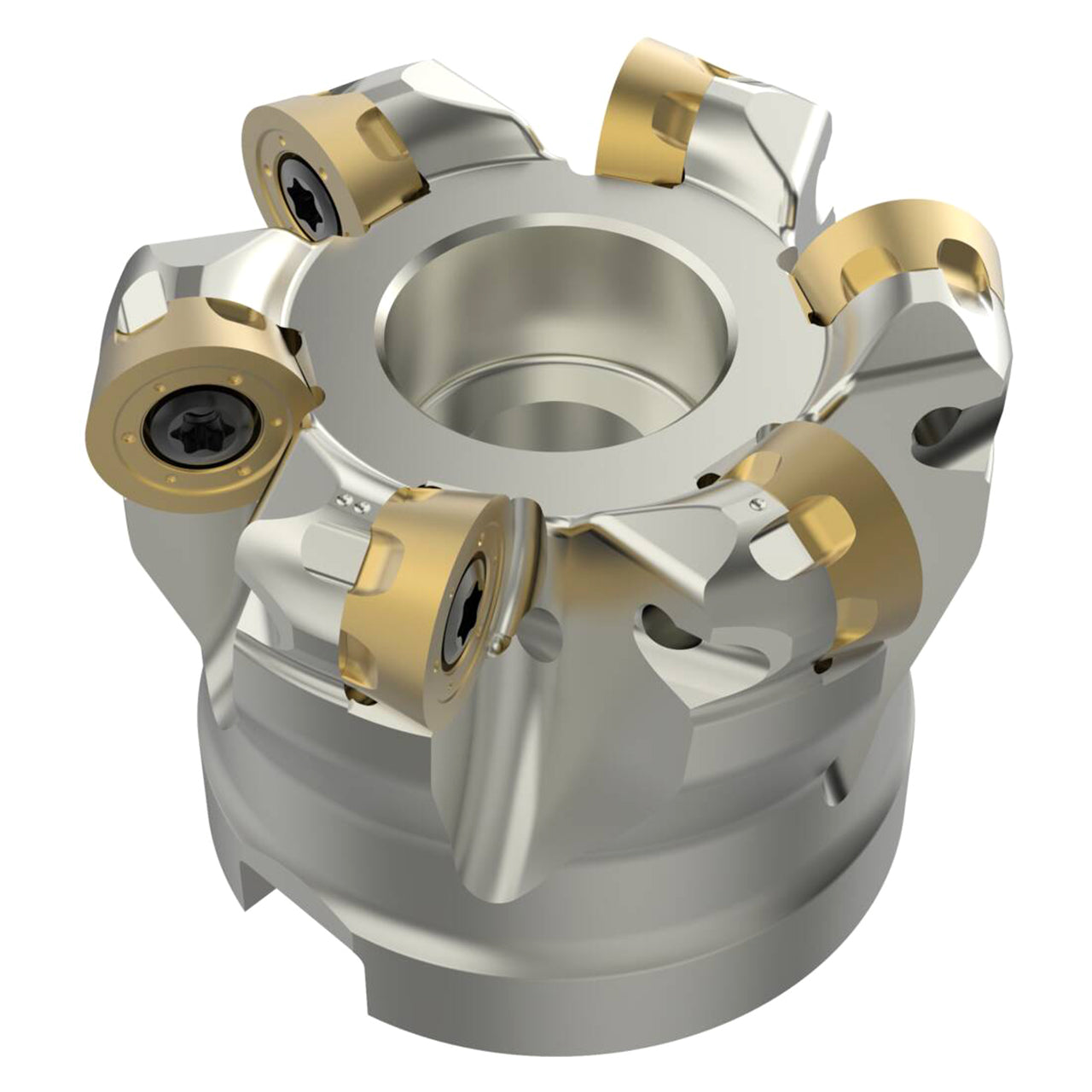

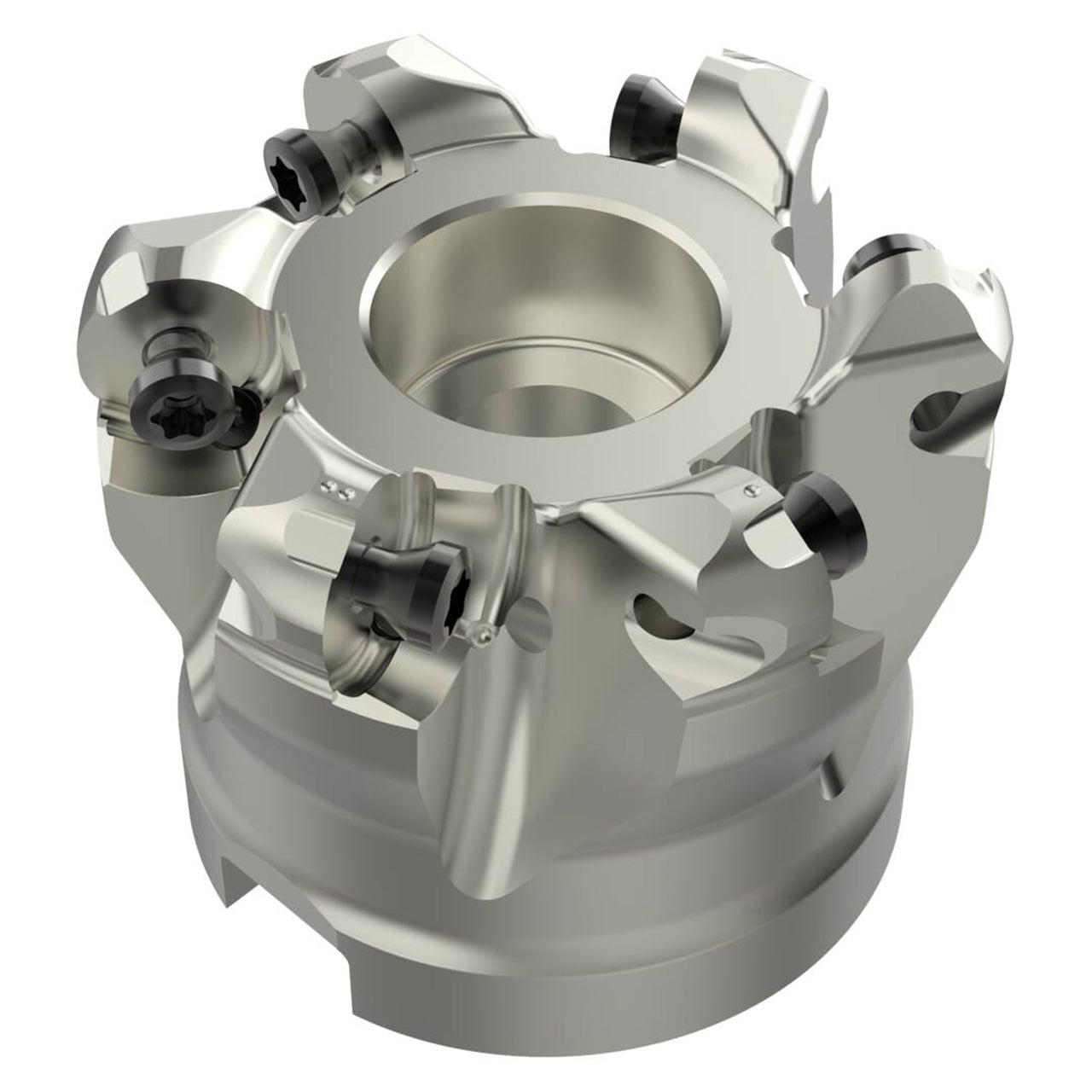

| Product Type | Indexable Copy End Mill |
