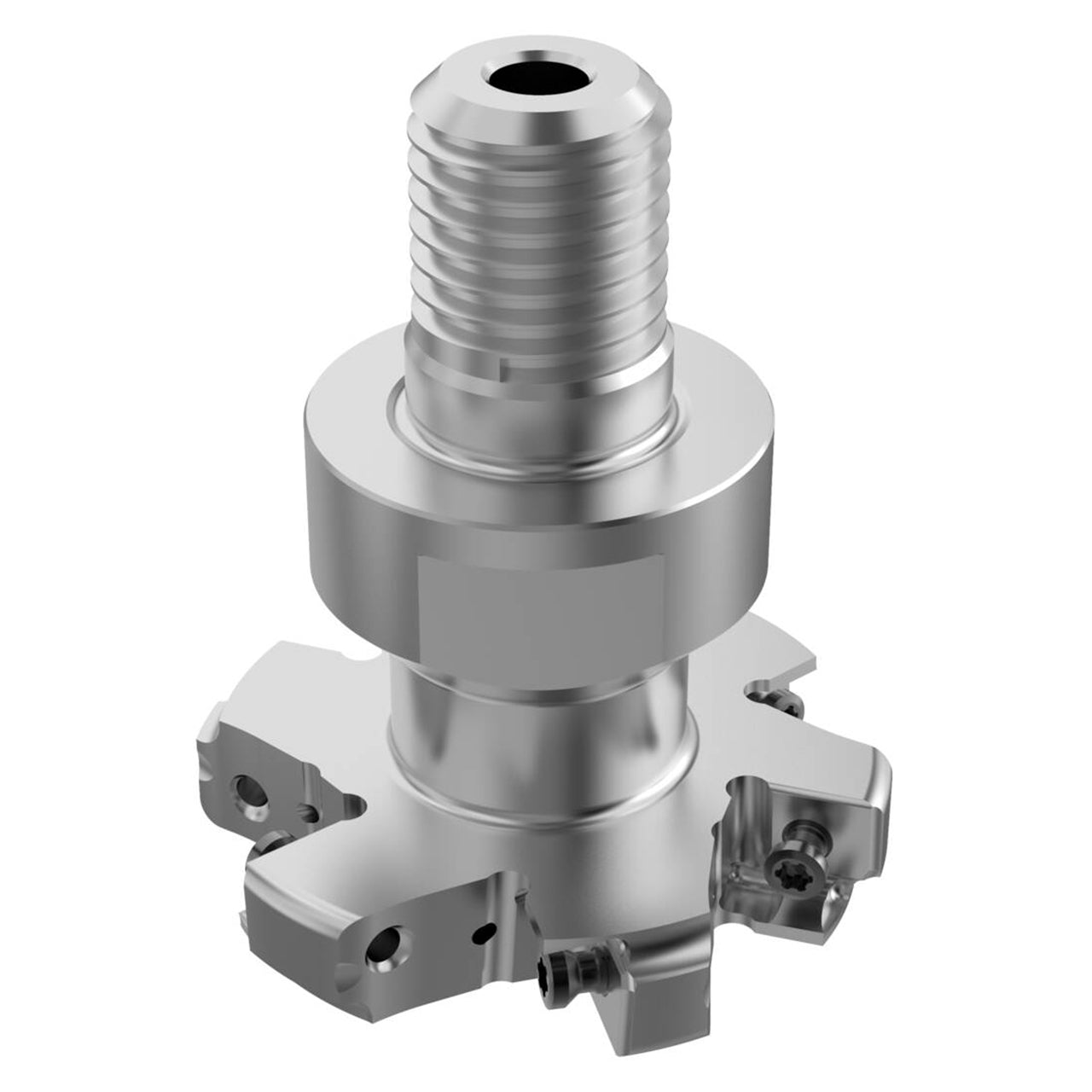

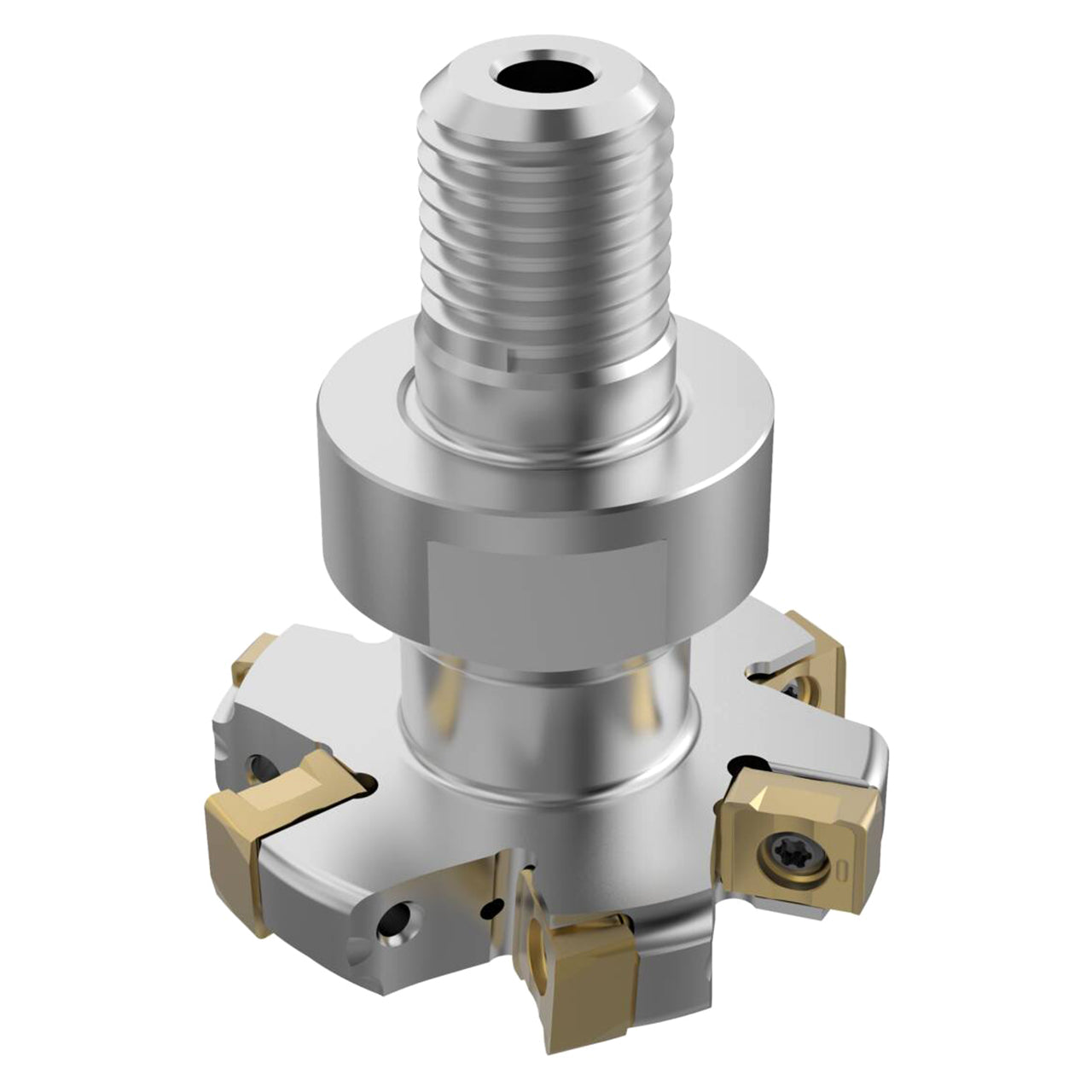

Product Specifications
| Manufacturer Part Number | 03279026 |
| Cutting Diameter (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Body Diameter (mm) | 20.00mm |
| Body Length (mm) | 8.59mm |
| Functional Length (mm) | 35.00mm |
| Cutting Width (mm) | 10.00mm |
| Maximum Depth of Cut (mm) | 10.00mm |
| Maximum Cutting Depth (mm) | 14.40mm |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -14 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 13400 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LNK.0605.. / LNK.080520 / LNK.080524 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |
| Product Type | Indexable Slotting Cutter |
