Product Specifications
| Manufacturer Part Number | 03278995 |
| Cutting Diameter (Decimal Inch) | 1.876" |
| Cutting Diameter (mm) | 47.65mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.811" |
| Contact Surface Diameter Machine Side (mm) | 46.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.500" |
| Maximum Cutting Diameter (mm) | 63.50mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 4.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 125.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 4.382" |
| Minimum Helical Interpolation Hole Diameter (mm) | 111.30mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.315" |
| Depth of Key Way (Decimal Inch) | 0.185" |
| Depth of Key Way (mm) | 4.70mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 7 Degree |
| Maximum Rotational Speed (rpm) | 8700 rpm |
| Insert Shape Code | R |
| Shank Type | Arbor |

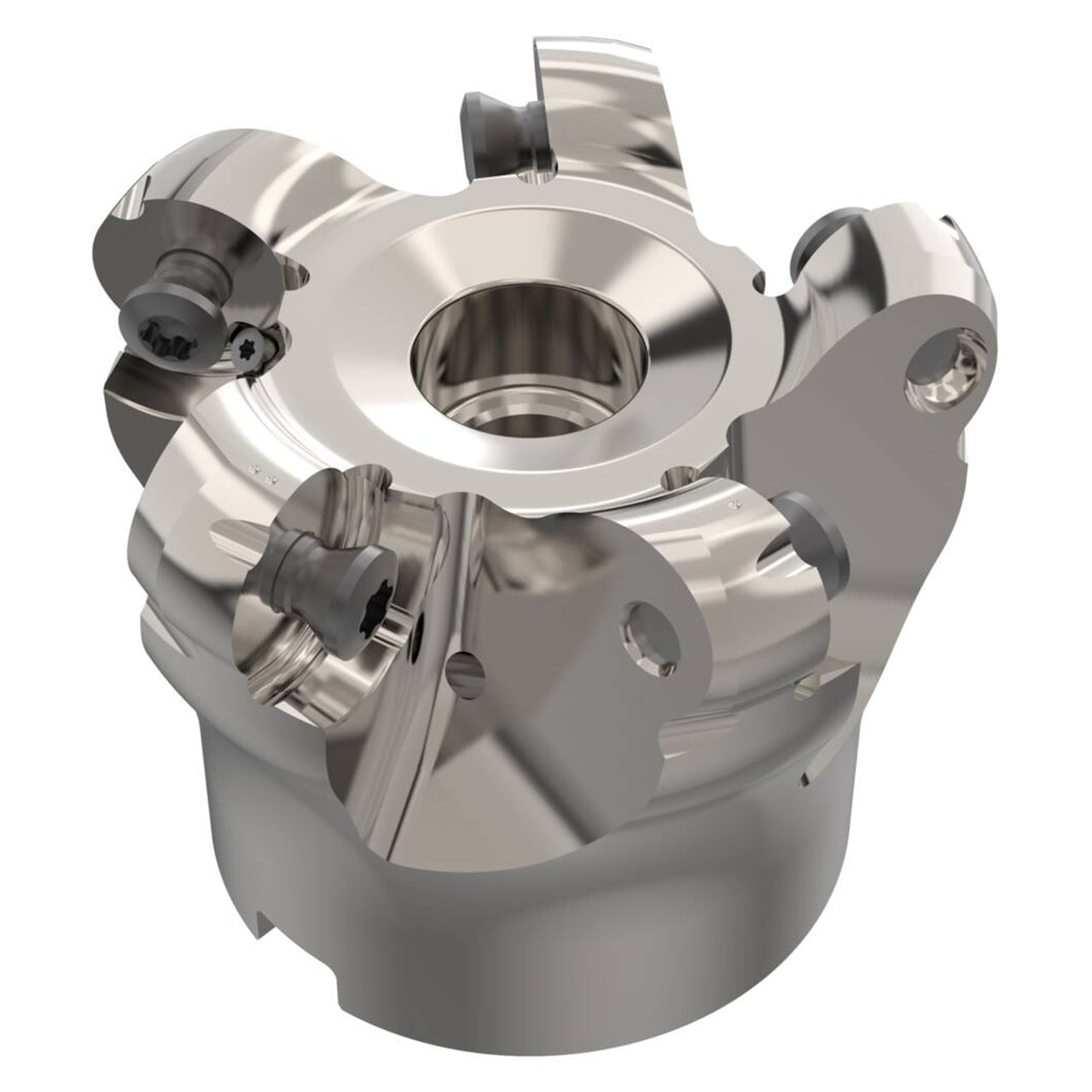

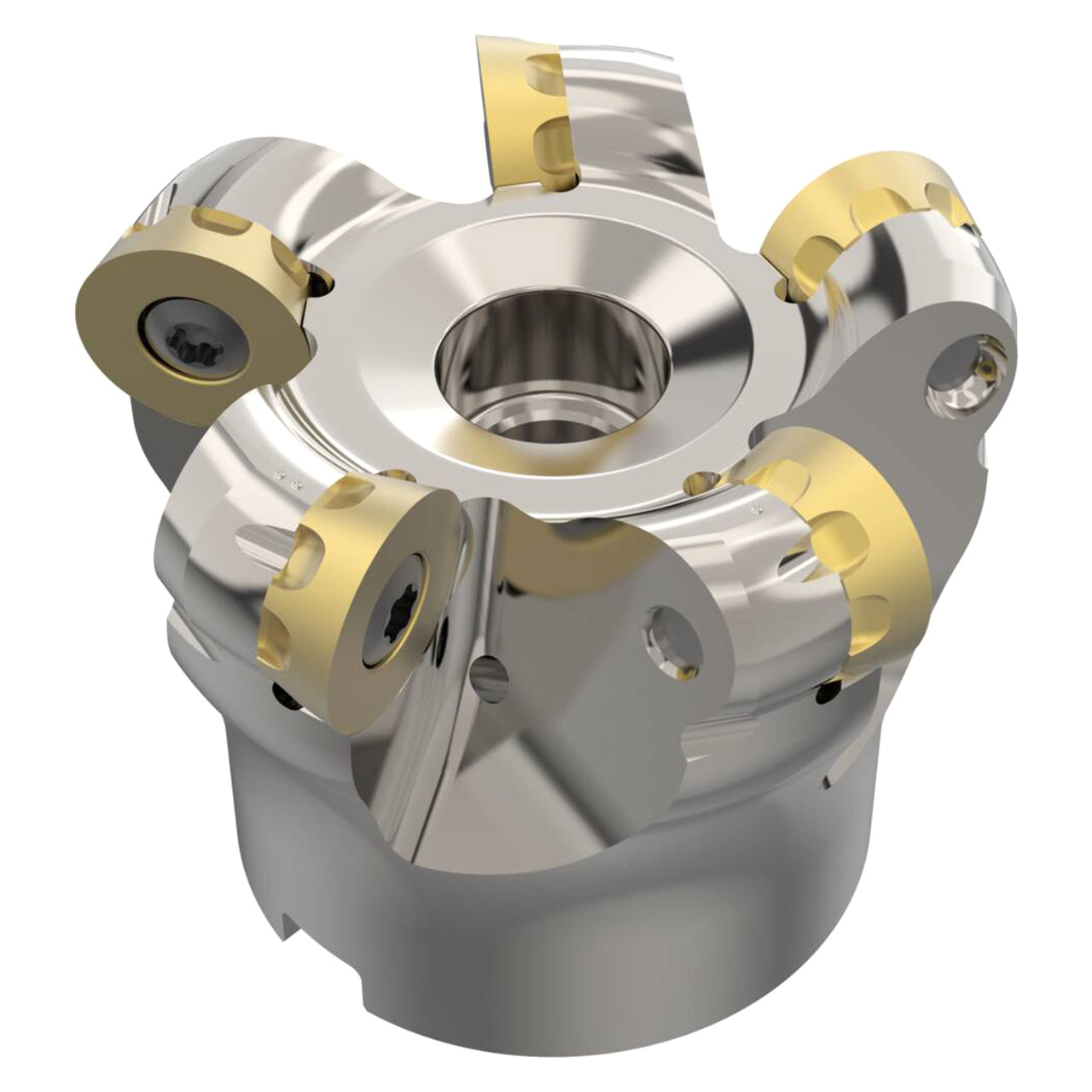

| Product Type | Indexable Copy End Mill |
