Product Specifications
| Manufacturer Part Number | 03278813 |
| Cutting Diameter (Decimal Inch) | 1.106" |
| Cutting Diameter (mm) | 28.09mm |
| Connection Bore Diameter (Decimal Inch) | 0.500" |
| Connection Bore Diameter (mm) | 12.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.339" |
| Contact Surface Diameter Machine Side (mm) | 34.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.606" |
| Minimum Helical Interpolation Hole Diameter (mm) | 66.18mm |
| Functional Length (Decimal Inch) | 1.500" |
| Functional Length (mm) | 38.10mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Depth of Key Way (Decimal Inch) | 0.158" |
| Depth of Key Way (mm) | 4.00mm |
| Keyway Width (Decimal Inch) | 0.258" |
| Keyway Width (mm) | 6.55mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 6.5 Degree |
| Maximum Rotational Speed (rpm) | 14000 rpm |
| Insert Shape Code | R |
| Shank Type | Arbor |

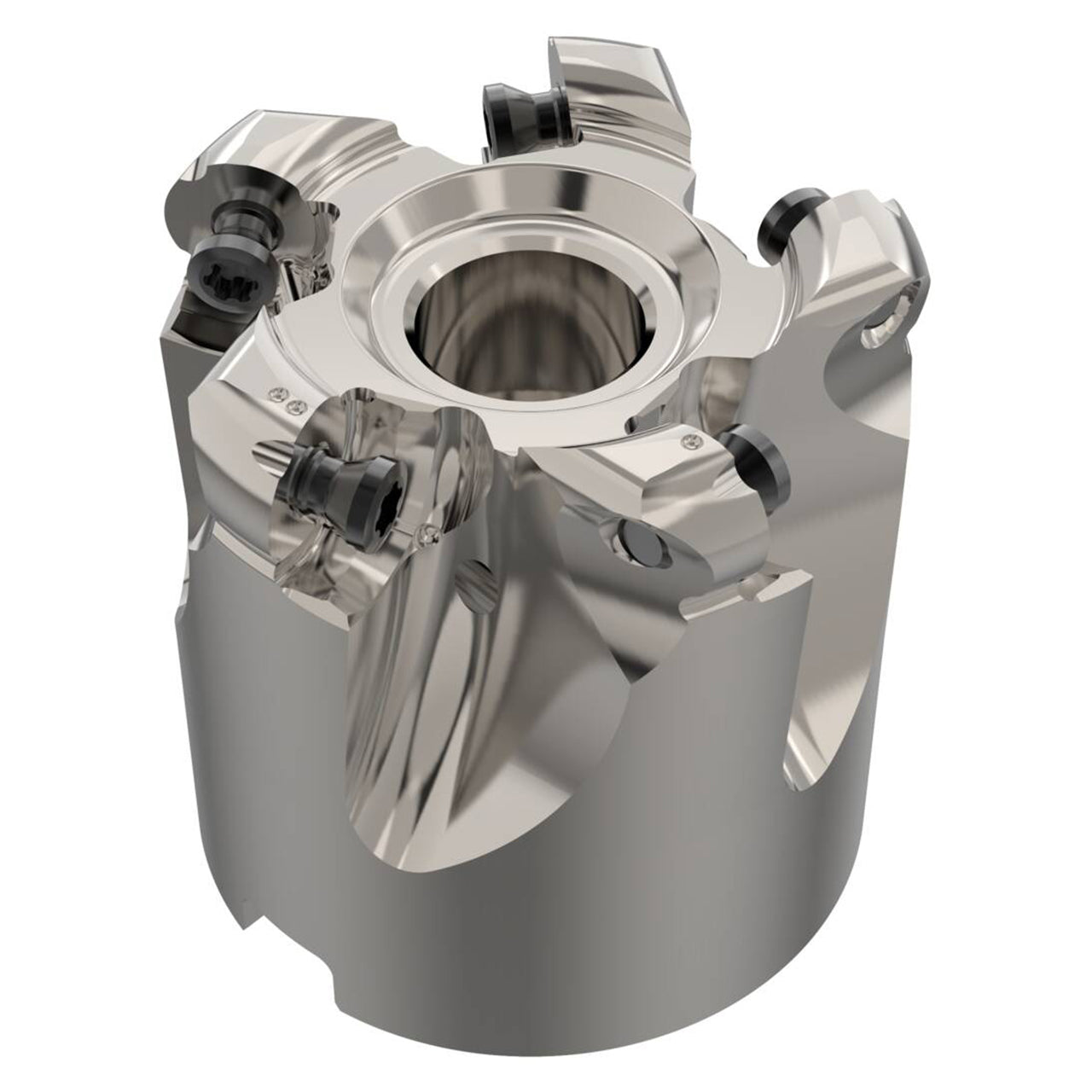

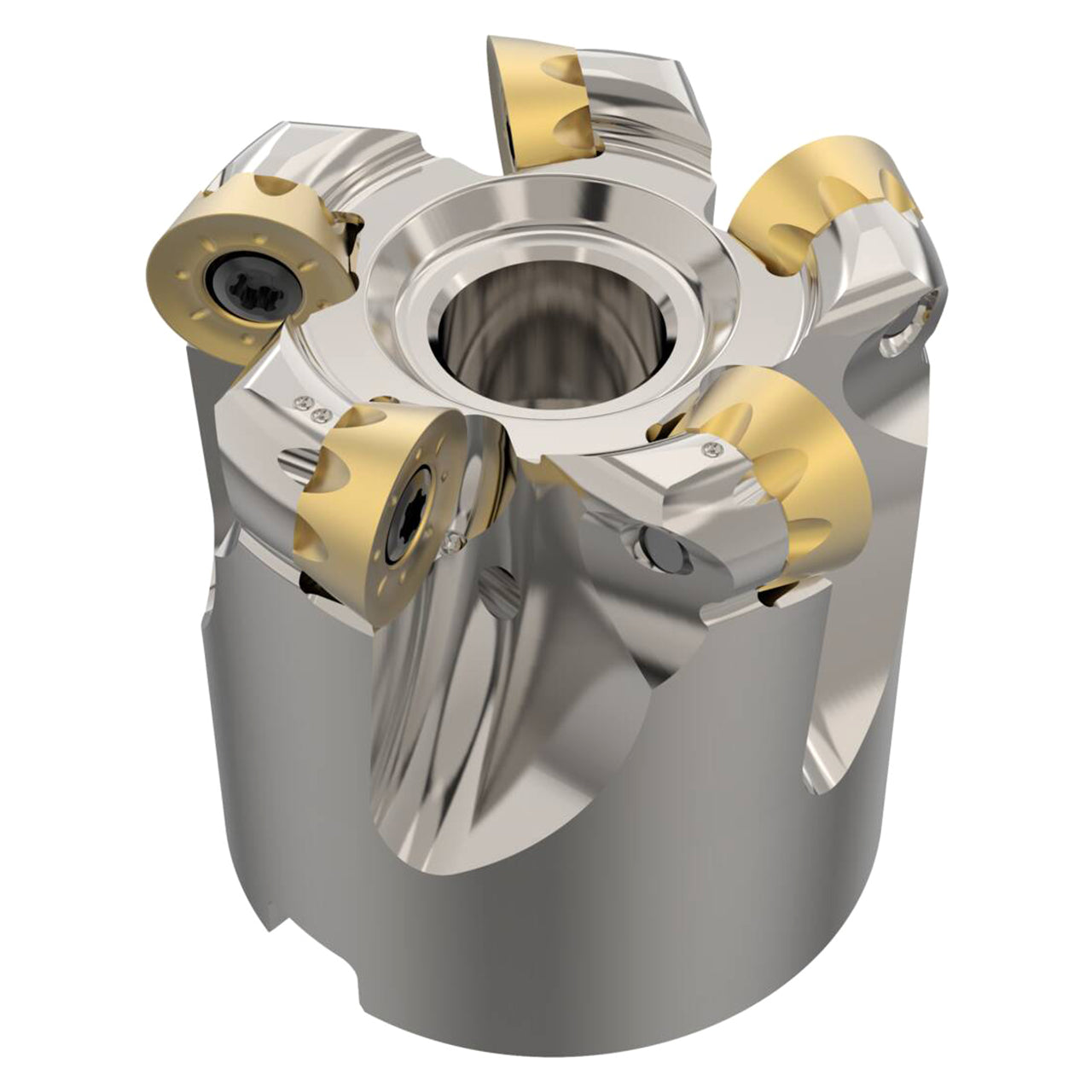

| Product Type | Indexable Copy End Mill |
